Connection Details

This chapter details the cable connections for the DP700.
Important Details
You can only use the DP700 with Newall Spherosyn and Microsyn analogue encoders.
You need to ensure that:
You secure all the cables to prevent the connectors from dropping into hazardous
positions (for example the floor or coolant tray) when you unplug them.
You route all cables to prevent them from being caught on moving parts.
The DP700 is grounded to the machine, using the braided grounding lead provided,
before you turn on the machine supply.
The power has been disconnected, before you connect the encoder(s).
Do not connect this unit directly to the mains supply.
If your Newall encoder has a round 7 pin connector, then you can buy an adaptor cable (part
no. 307-80980). Contact your local Newall supplier for details.

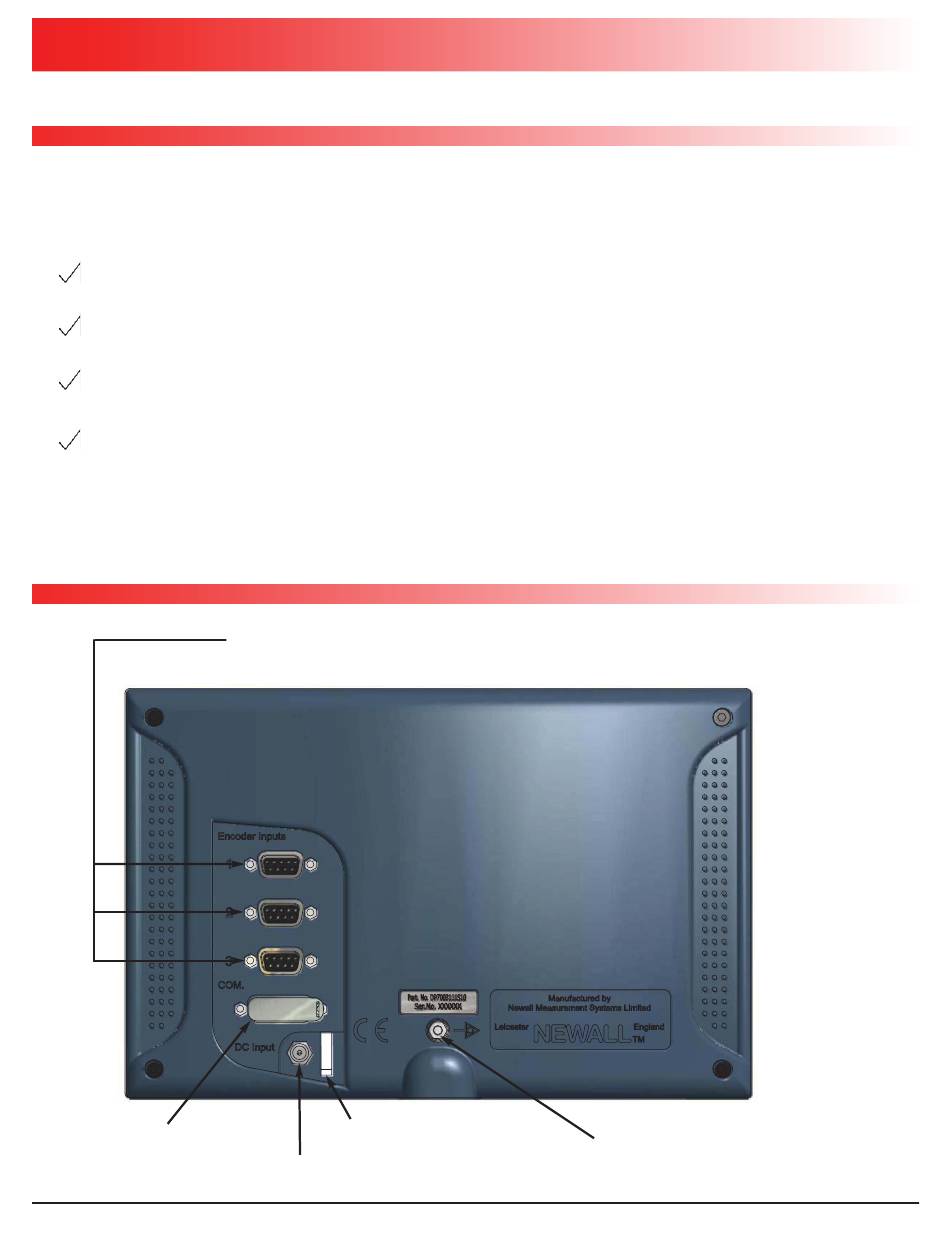

Connections

1, 2 or 3 according to model
RS232 output
External PSU input
5
Encoder input connection
Cable clamp
Cabinet equipotential terminal
for grounding to machine
