DP500 Quick Start Guide
For the complete manual please download from:
http://newall.com , Click Technical Support to access the download page.
Warnings
The mains supply is connected into a switch mode power supply (separate from your DP500) via a
detachable supply cord supplied. If another supply cord is used, it must have fitted a C5, 10A, EARTHED
mains connector with a cord rated for at least 10A.
If a mains plug is not already fitted to the supply cord or is of the wrong type, then a suitable EARTHED plug
should be used which complies with the relevant specifications for plugs and socket-outlets.
You can only use the DP500 with Newall Spherosyn LT and Microsyn LT analogue encoders.
Unit only to be serviced by Newall qualified personnel or authorised alternatives.
If a Spherosyn LT encoder travels over 2.2m an error message will be displayed, see full manual for details.
Turn off the power by disconnecting the power supply connector before you connect the encoder(s)
Technical Specification
Environmental
Operating Temperature Storage Temperature
-10°C to 50°C -20 to 70°C
Environmental Conditions - IP40 (Stand Alone)
Relative Humidity - maximum 95% for temperature up to 31°C
Disposal
At the end of it's life, you should dispose of the DP500 in a safe
manner applicable to electronic goods.
The case work is suitable for recycling. Please consult local
regulations on disposal.
Note: Newall Measurements Systems reserves the right to change specifications without notice.

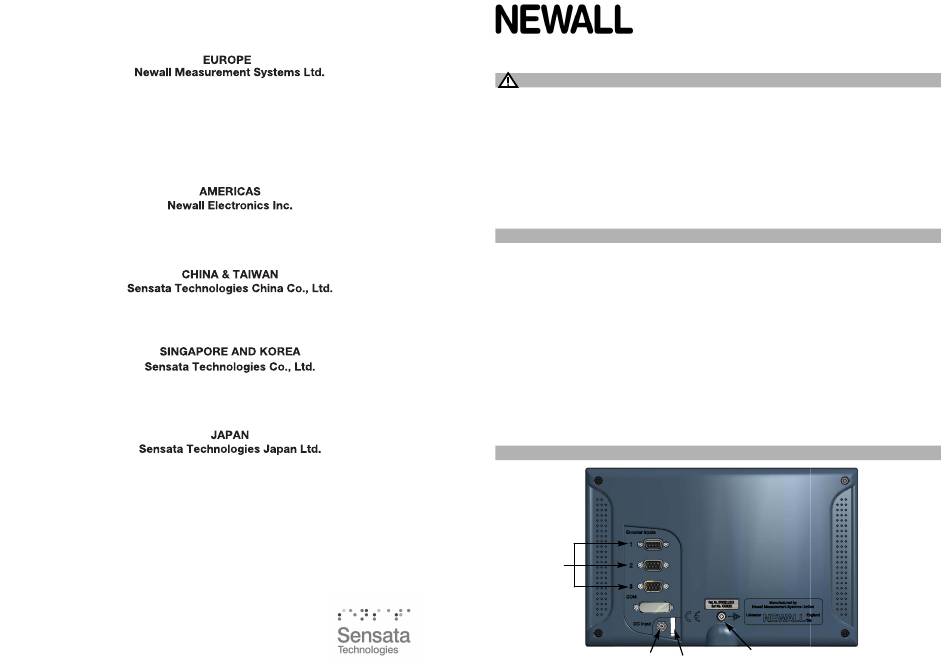

Connections
Encoder Input
Connection 2 or 3
According to Model
External PSU Input
Electrical
EU Directive 73/23/EEC (Low Voltage
Directive)
BS EN 55022:1998 Class B
BS EN 55024:1998
Input to Power Supply Unit (Supplied)
100-240V (47-63Hz)
External switch-mode
Output voltage 15VDC
Input Voltage to DP500
15-24VDC ±10%
Conforms to Low Voltage Directive
Cabinet equipotential terminal
Cable Clamp
for grounding to machine
