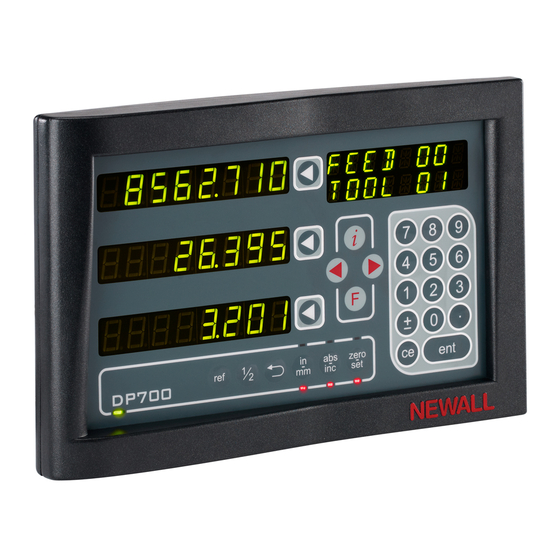

Newall DP700 Quick Start Up Manual

HEAD OFFICE
Newall Measurement Systems Ltd.
Technology Gateway, Cornwall Road
South Wigston
Leicester LE18 4XH
United Kingdom
Telephone: +44 (0)116 264 2730
Facsimile: +44 (0)116 264 2731
Email: sales@newall.co.uk
Web: http://newall.com
Newall Electronics, Inc.
1778 Dividend Drive
Columbus, OH 43228
Telephone: +1 614 771 0213
Toll Free: 800.229.4376
Facsimile: +1 614 771 0219
Email: sales@newall.com
Web: http://newall.com
023-81360-UK/0
A full hard copy of the manual is available free of charge on request
DP700 Quick Start up Guide
N
For the complete manual please download from:
http://newall.com , Click technical Support to access the download
page.

Warnings

The mains supply is connected into a switch mode power supply (separate from your DP700) via a
detachable supply cord supplied. If another supply cord is used, it must have fitted a C5, 10A,
EARTHED mains connector with a cord rated for at least 10A.
If a mains plug is not already fitted to the supply cord or is of the wrong type, then a suitable EARTHED
plug should be used which complies with the relevant specifications for plugs and socket-outlets.
You can only use the DP700 with Newall Spherosyn and Microsyn analogue encoders.
The power supply must be disconnected before opening the unit and completed by qualified personnel.
Turn off the power by disconnecting the power supply connector, before you connect the encoder(s)

Technical Specification

Environmental
Operating Temperature Storage Temperature
-10°C to 50°C -20 to 70°C
Environmental Conditions - IP40 (Stand Alone)
IP54 (Panel Mount)
Relative Humidity - maximum 95% for temperature up to 31°C

Disposal

At the end of it's life, you should dispose of the DP700 in a safe
manner applicable to electronic goods.
The case work is suitable for recycling. Please consult local
regulations on disposal.
Note: Newall Measurements Systems reserves the right to change specifications without notice.

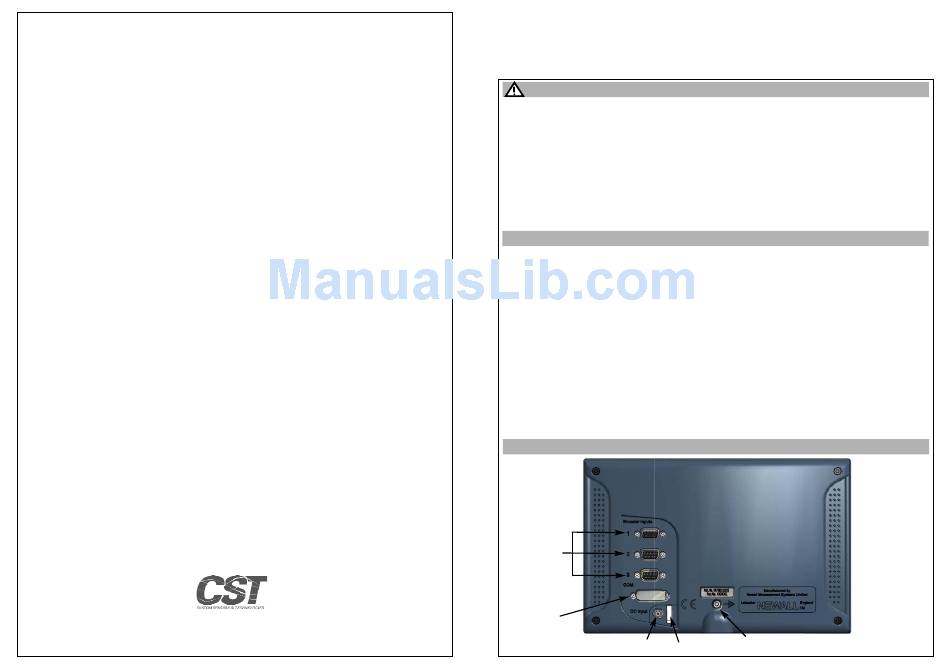

Connections

Encoder Input
Connection
1,2 or 3 According
to Model
RS232 Output
External PSU Input
Cable Clamp
Electrical
EU Directive 73/23/EEC (Low Voltage
Directive)
BS EN 55022:1998 Class B
BS EN 55024:1998
Input to Power Supply Unit (Supplied)
100-240V (47-63Hz)
External switch-mode
Output voltage 15VDC
Input Voltage to DP700
15-24VDC ±10%
Conforms to Low Voltage Directive
Cabinet equipotential terminal
for grounding to machine
