Drip Drop PC-200 Quick Manual

Indication diode "P1-P3"
3 Multicolour diodes show the status for
each pump.
¤ Greeni shows pump is running.
¤ Red shows pump alarm
¤ Orange shows pump "Not in Auto"
Indication diode "Alarm"
1 red diode shows the alarms.
¤ Red "flashing" active,not ackn.alarm.
¤ Red "fixed" active, ackn. alarm.

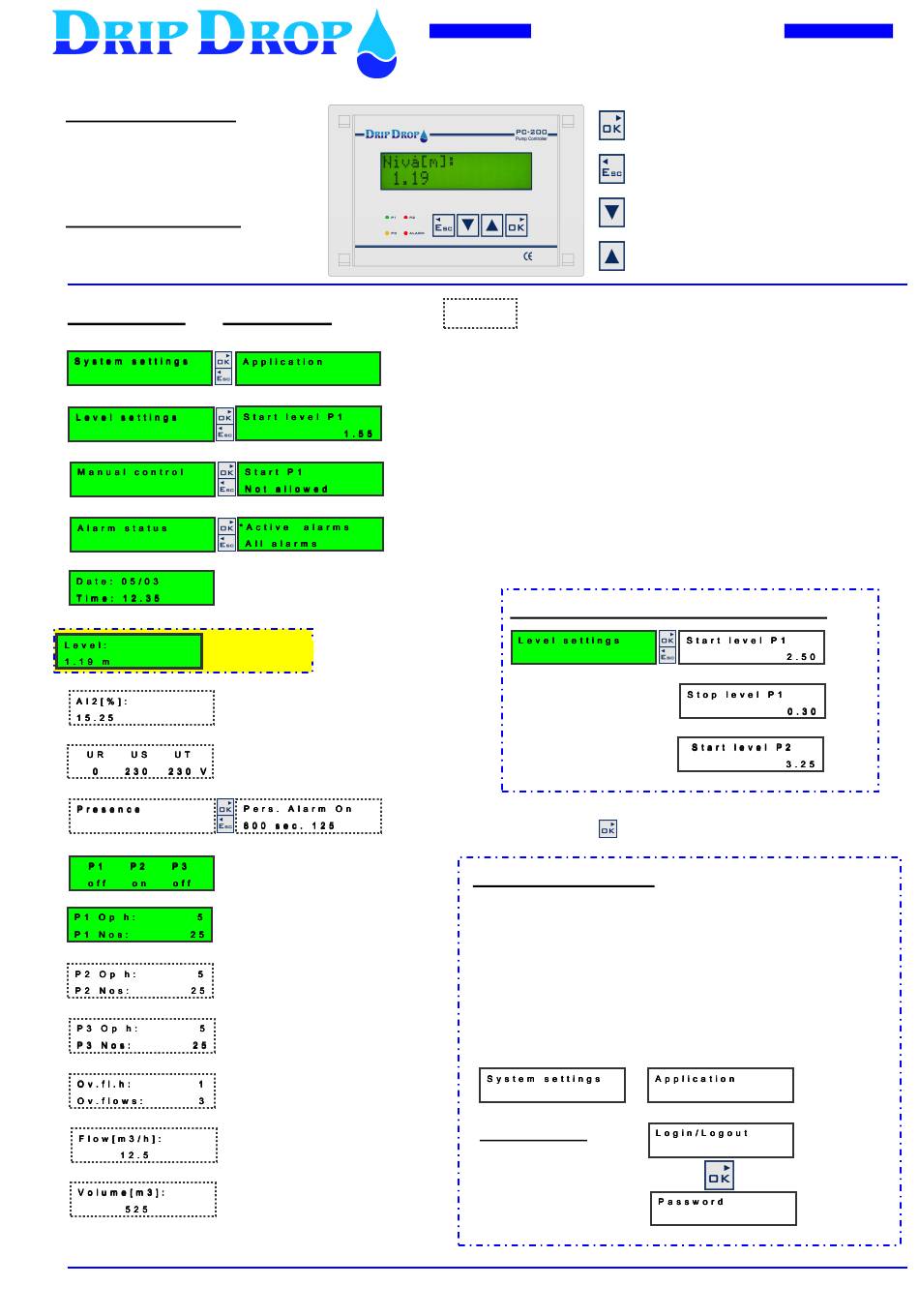

Main menu Sub menu
►
▼▲
►
▼▲
►
▼▲
►
▼▲
▼▲
Start window
▼▲
Shows actual value for AIN 2
(Choise of text for type and unit)
▼▲
Shows actual voltage for power
supply.
▼▲
►
▼▲
Shows pump status and if pump is
running or not
▼▲
igång eller aktuell motorström.
Pump 1, shows total running time.
Pumpe 1, shows number of starts.
▼▲
Pump 2, shows total running time.
Pump 2, shows number of starts
▼▲
Pump 2, visning av antal starter.
Pump 3, shows total running time.
Pump 3, shows number of starts.
▼▲
Shows total overflow time and
number of overflows
▼▲
Shows actual flow.
▼▲
Shows total ackumulated flow
Here all basic settings are made beginning, with
▲
►
"Application" (see back side)
▼
Shortcut to settings of set points for high and low level alarms for
▲
each pump.
▼
Man. start only allowed if level is between set
▲
values for start and stop level
▼
Status for active, acknowledged and old alarms.
▲
For more information and
▼
Shows actual level
Shows the working time left before person alarm is sent.
Can be extended by pressing.
Login (Password)
For manual start/stop of pumps, changing of level settings
or system settings it is needed depending on the basic setting to
be logged in with a password.
Login is done from the main meny by going to setting
and chosing Login/Logout.
If you have forgotten to login in the submeny you can set the
password when the promt shows up. This happens when you try
to change values direct in the menys:
Settings, level settings and Man. Start/stopp.
Login (password)
Use ▲▼ arrows to set
values,and OK to go to the
next position. Finish with OK
key.
Operator:
System:
Quick guide PC
Ver.1202-UK
Confirm choice, enter sub menus, and to
go from the start menu to the main menu.
Exit the menus and go to the left.
Used to step downwards in the sub
menus, and to change values to be set.
Used to step upwards in the sub menus
and to change the values to be set.
Menus in "black dashed box" are only shown if
activated in Settings.
"acknowledgement"
Level setting(start-/stop levels)
►
◄
►
►
ZZZZ (4 Z)
0000 (4 Zeroes)
-
200
(see backside).
▼▲
▼▲
▼▲
►
▼▲
►
- - - -
