INSTALLATION MANUAL
Version: 0811-UK
PC-2000-W
DripDrop AB
Pipers Väg 2C
SE-170 73 Solna, Sweden
●
●
Tel: +46 (0) 8 655 02 94
Fax: +46 (0) 8 655 02 91
●
www.dripdrop.se
info@dripdrop.se
●

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-2000-W and is the answer not in the manual?

Questions and answers

Related Manuals for Drip Drop PC-2000-W

Summary of Contents for Drip Drop PC-2000-W

  • Page 1 INSTALLATION MANUAL Version: 0811-UK PC-2000-W DripDrop AB Pipers Väg 2C SE-170 73 Solna, Sweden ● ● Tel: +46 (0) 8 655 02 94 Fax: +46 (0) 8 655 02 91 ● www.dripdrop.se info@dripdrop.se ●...

  • Page 2: Table Of Contents

    Page 1(14) TABLE OF CONTENTS DESCRIPTION OF PC-2000-W ................2 DIMENSIONS AND MOUNTING ................3 I/O-SIGNALS ......................5 ELECTRICAL CONNECTION................6 24 VDC 27,2 VDC ............... 6 OWER SUPPLY PC-2000-W ADA-2000-E ......7 IGNAL CONNECTION BETWEEN COMMUNICATION WITH PC-2000-W ............... 8 ..................

  • Page 3: Description Of Pc-2000-W

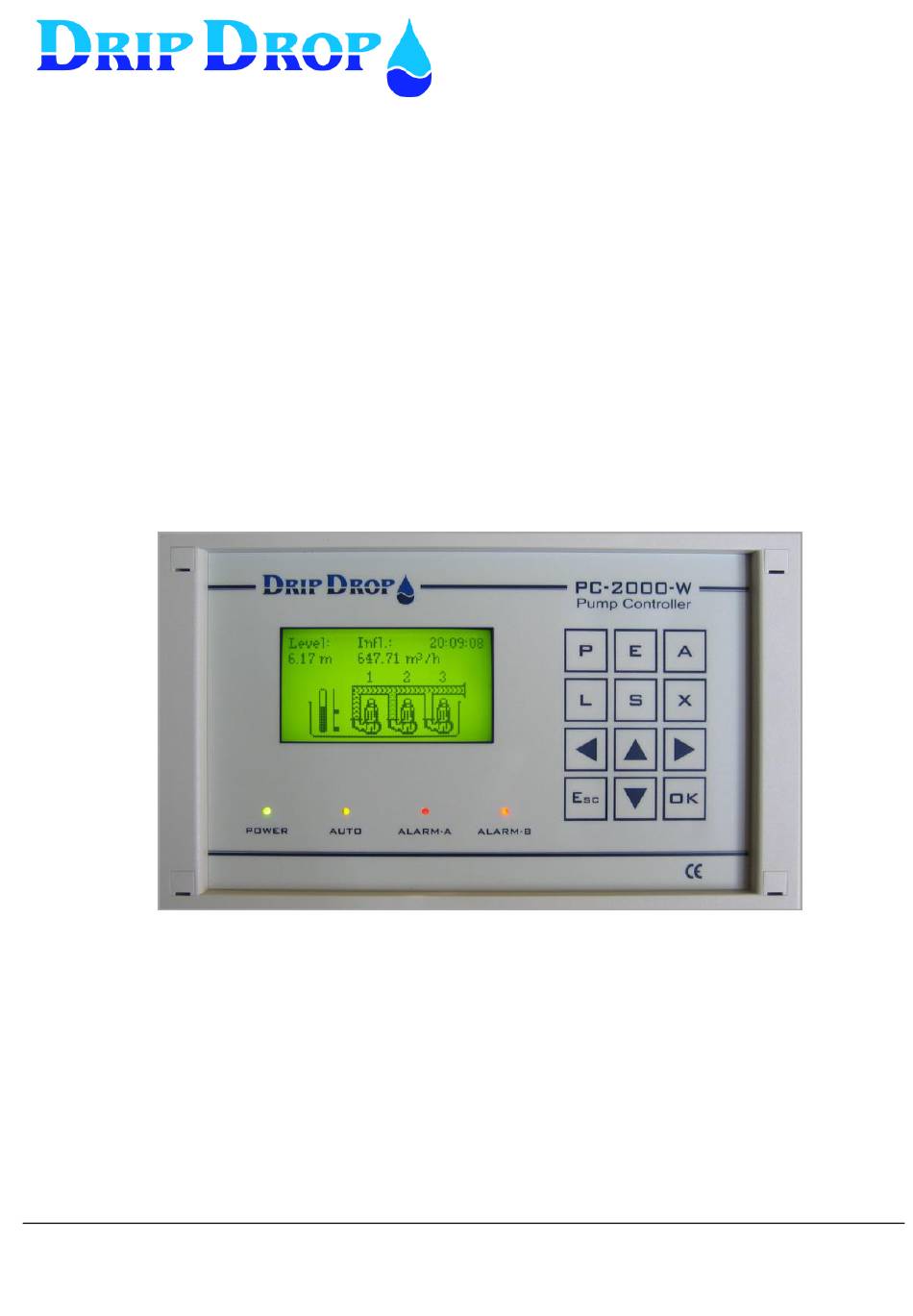

    On the back side of the unit there are a number of connectors for 24 VDC power, 3 band cable connectors, K8, K9 and K10 for signal transfer between PC-2000-W and the I/O device ADA-2000-E. There is also RS232, RS485 and a CAN-bus port for communication.

  • Page 4: Dimensions And Mounting

    203x115 mm. The unit is then fixed with two metal brackets and 4 screws on the backside of the front door. Mounting brackets Figure 2.3 shows the back of the Figure 2.2 shows the required cutting PC-2000-W when mounted in the door. dimensions for panel mounting.
  • Page 5 Picture 2,5, shows the inside of a standard DripDrop electrical panel for 2 pumps with PC-2000-W mounted in the door and the I/O type ADA-2000-E mounted on a DIN-rail. This cabinet is equipped with a Westermo GDW-11 modem and a backup battery.

  • Page 6: O-Signals

    Page 5(14) I/O-signals I/O No. Type Signal Notes Level signal (Pressure signal) 4-20 mA Flow signal 4-20 mA P1 Motor current / Running confirm. 4-20 mA P2 Motor current / Running confirm. 4-20 mA P3 Motor current / Running confirm. 4-20 mA P4 Motor current / Running confirm.

  • Page 7: Electrical Connection

    Electrical connection 4.1 Power supply 24 VDC or 27,2 VDC PC-2000-W is powered with a stabilised 19.2-30VDC supply, same power supply as the CPU unit ADA-2000-E. If battery backup is used the power supply must be able to deliver 27.2VDC in order to recharge the battery. Depending on how much load there is on the 24VDC circuit we recommend to use a 24VDC battery with 1.3-3Ah capacity.

  • Page 8: Signal Connection Between Pc-2000-Wand Ada-2000-E

    11 to 20. -Band cable CSD26/1.5m is connected between K1 on ADA-2000-E and K9 on PC-2000-W, this cable is used for digital outputs 1 to 11 and digital inputs 1 to 10, and digital pulse counters 1 and 2.

  • Page 9: Communication With Pc-2000-W

    CAN B 5.2 RS232. Direct serial communication to a computer. The PC-2000-W can be directly connected to a PC computer via a 9 pin D-sub connector to RS232-terminal on PC-2000-W. This connection is made as shown below and can be is used with the DripDrop configuration software PC-COM.

  • Page 10: Rs232. Modem Communication With Gsm, Gdw-11

    Below you see how a Westermo GDW-11 GSM modem is connected for GSM communication and SMS sending. Note that the digital output number 16 is used as modem control to restart the modem via the PC-2000-W. Below you see the connections between the PC-2000-W RS232 connectors and the terminals of the modem.
  • Page 11 Page 10(14) ADA-2000-E (I/O-device) GSM-modem Westermo GDW-11 Power supply 24-27,2VDC PC-2000-W RS232 RJ45/6 terminal Connector Picture 5.4 Shows the connection to a Westermo GDW-11 modem with a 9 pole D-sub contact. D-sub Signal Description No 2 No 3 No 5 Signal earth Table of D-sub signals to a Westermo GDW-11 GSM-modem.

  • Page 12: Technical Specification Pc-2000-W

    Page 11(14) Technical specification PC-2000-W Power supply 24 VDC ( 19,2 -30 VDC) Power consumption 150 mA Mounting cut Panel mounted (203,5mm x 115,5mm) Dimensions 213 x 125 x 54mm (W x H x D) Temperature range -5 to +55 °C...

  • Page 13: Emc - Electromagnetic Compatibility

    Radiated emission EN 52022:2004 26MHz-1GHz Accessories and part numbers Description Part number Comments OPI and CPU type PC-2000-W 20101-03-101 I/O unit type ADA-2000-E 20101-03-110 Band cable screened CSA14E/1,5 m 20101-03-120 Band cable flat CSD20/1,5 m 20101-03-130 Band cable flat CSD26/1,5 m...

  • Page 14: Packing Contents

    Page 13(14) Packing contents The packing box contains: 1(one) Operator unit PC-2000-W 2(two) sets of mounting brackets with 4(four) screws 1(one) 2-pole contact for power supply, 24VDC...
