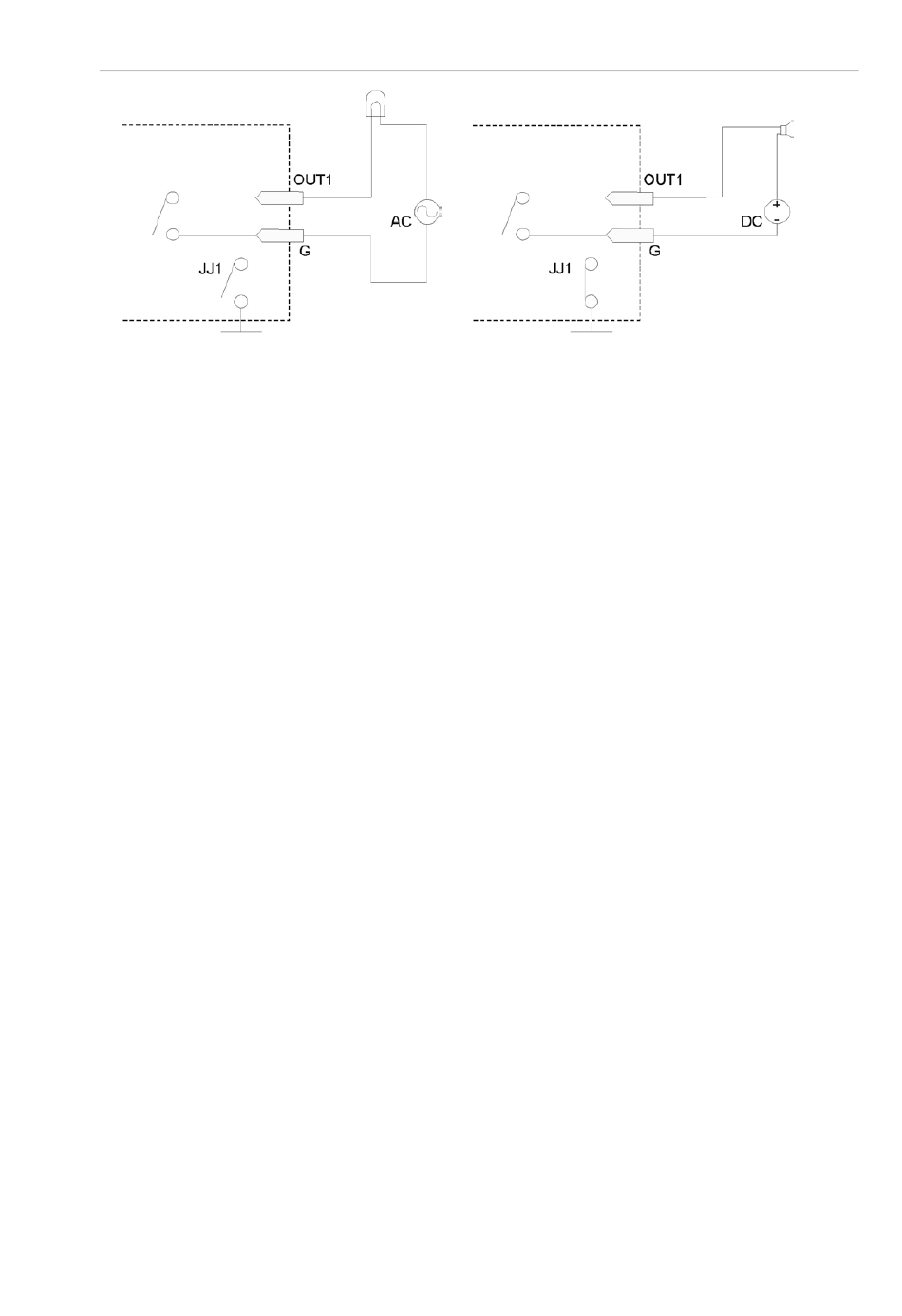

Figure 4: Alarm output connections
Note: Please note the different connections of JJ1 shown above. For a DC load,
JJ1can be safely used both in NC and NO methods. It is recommended to use 12 V
/ 1 A. For an external AC input, JJ1 must be open. The motherboard has two
jumpers, each corresponding to one alarm output. Both jumpers are factory set to be
connected.
TVE-DEC11 IP Video Decoder User Manual
5
