Bluestream HSP14CS Quick Reference Manual

HSP14CS
Input

Introduction

KEY FEATURES

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Features 1x HDMI input that is replicated to 4x HDBaseT™ outputs
• Features 1x HDMI loop out for integrating local displays or cascading to multiple devices
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio
transmission
• HDMI audio breakout to both analogue L/R audio and coaxial digital outputs concurrently
• Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
• Compatible with the following HDBaseT™ Blustream receivers - HEX70CS-RX (4K 60Hz 4:4:4), HEX70B-RX & HEX70ED-RX (4K
60Hz 4:2:0)
• Advanced EDID management
• HDCP 2.2 compliant
01
HSP14CS
Quick Reference Guide

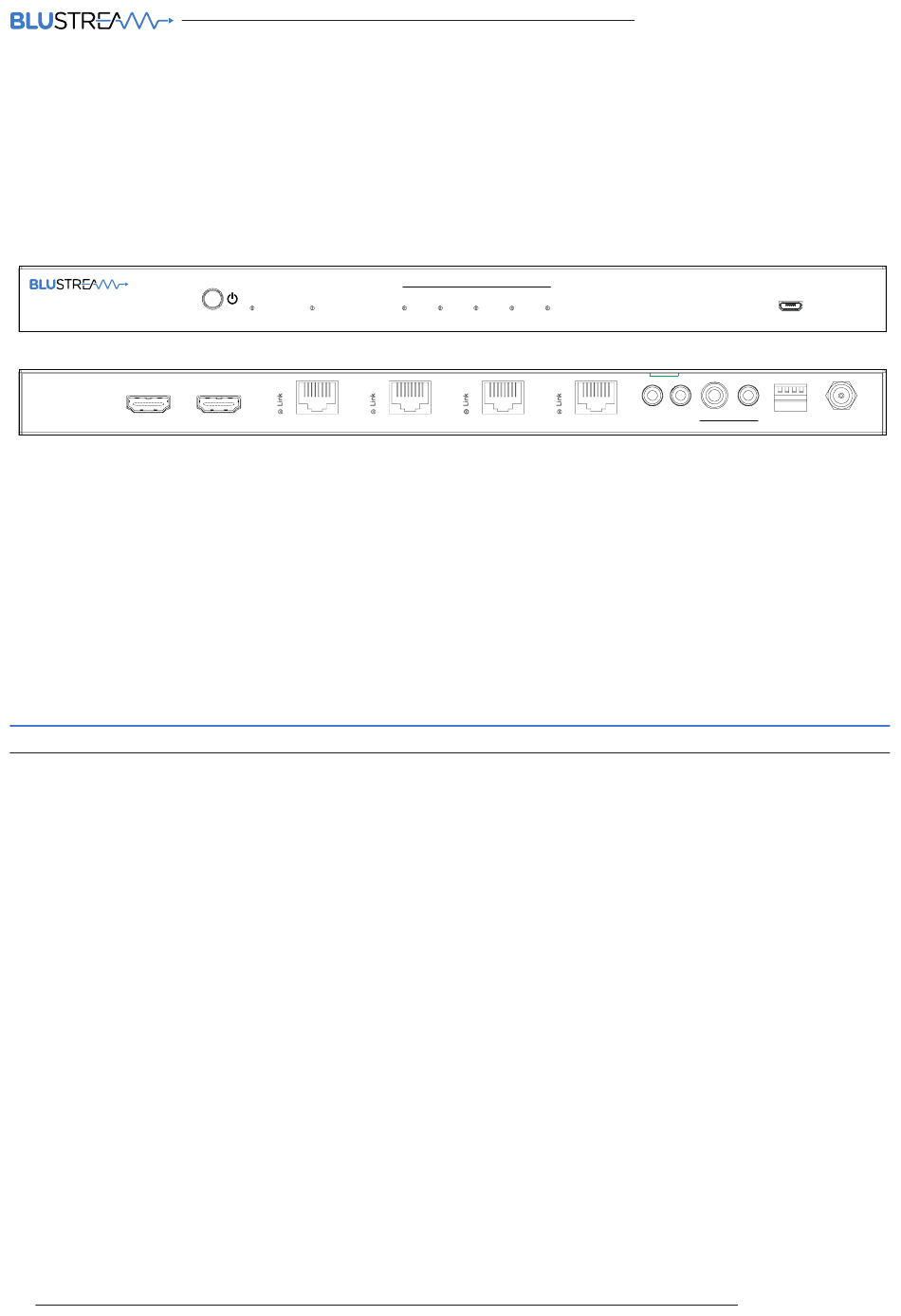

Power Input
Output
HDBT Output 1
Our HSP14CS 4K HDBaseT™ CSC splitter distributes a single HDMI 2.0 4K 60Hz 4:4:4 source
to four simultaneous HDBaseT™ outputs. The HSP14CS splitter utilises CSC technology to
deliver HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m (40m 4K 60Hz 4:4:4) over
a single CAT cable. The 4-Way splitter also features audio breakout, EDID management and
HDMI loop out for integrating local displays or cascading to multiple devices.
Output
HDMI HDBT1 HDBT2 HDBT3 HDBT4
HDBT Output 2 HDBT Output 3
HSP14CS QUICK REFERENCE GUIDE
4-Way HDBaseT™ Splitter - Supporting 4K 60Hz 4:4:4 (40m)
IR IN IR OUT Coaxial
HDBT Output 4
Audio Out
Upgrade
3 2 1 0
0
1
L/R
EDID DC 12V
