Introduction
FEATURES:
• Decodes a Dante® digital signal to unbalanced or balanced 2ch analogue audio
• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 1 802.3af PoE for powering of product from any PoE switch
• Local 12v power supply input for when network switch does not support PoE*
* PS121PH power supply sold separately
Front Panel
1
Connections:
Dante® Audio Input - RJ45 socket connets Dante® network.
1
DC Input - Connect to +12VDC power supply (not supplied) if
2
device is not powered via a PoE switch
Audio Output - Phoenix Connector accepts balanced or
3
unbalanced 2 channel audio output.
Contact:
support@blustream.com.au
DA11ADE
Quick Reference Guide
Our DA11ADE has been designed to decode a Dante® digital signal to unbalanced
or balanced 2ch analogue audio. The DA11ADE is a plug & play device that is
powered using either PoE (Power Over Ethernet) from any PoE network switch or
via local 12v power supply input. The DA11ADE also supports AES67 RTP audio
transport.

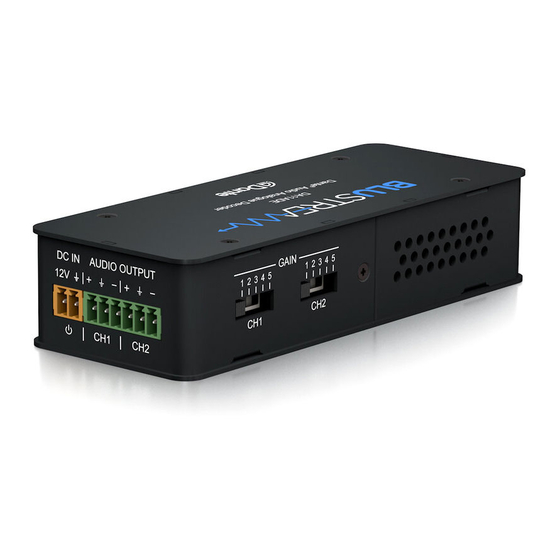

Rear Panel
2
3
|
support@blustream-us.com
Wiring Configuration
+
-
Balanced - XLR
|
support@blustream.co.uk
DA11ADE
QUICK REFERENCE GUIDE
+
-
Unbalanced - RCA
01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bluestream DA11ADE
Summary of Contents for Bluestream DA11ADE
- Page 1 Our DA11ADE has been designed to decode a Dante® digital signal to unbalanced or balanced 2ch analogue audio. The DA11ADE is a plug & play device that is powered using either PoE (Power Over Ethernet) from any PoE network switch or via local 12v power supply input.
- Page 2 By default the DA11ADE is shipped with its network settings set to obtain an IP Address automatically. This means that if a DHCP server is present on your network, it will provide the DA11ADE with an IP Address. If no DHCP server is present then the DA11ADE will receive a default IP Address in the 169.254.xxx.xxx range.
- Page 3 Depending on the connected audio device, it may be necessary to adjust the gain or output sensitivity. The DA11ADE features a 5 pin switch on the side of the device to adjust the output gain of each channel from various settings between +24dBu to -10dBV.
- Page 4 Analogue Audio Specifications Package Contents Audio Input Connectors: 1 x RJ45, female (100 Mbps Dante® network) • 1 x DA11ADE • 1 x Quick Reference Guide Audio Output Connectors: 6-PIN Phoenix connector (2ch balanced/un- balanced analogue audio) Casing Dimensions (L x W x H):...
