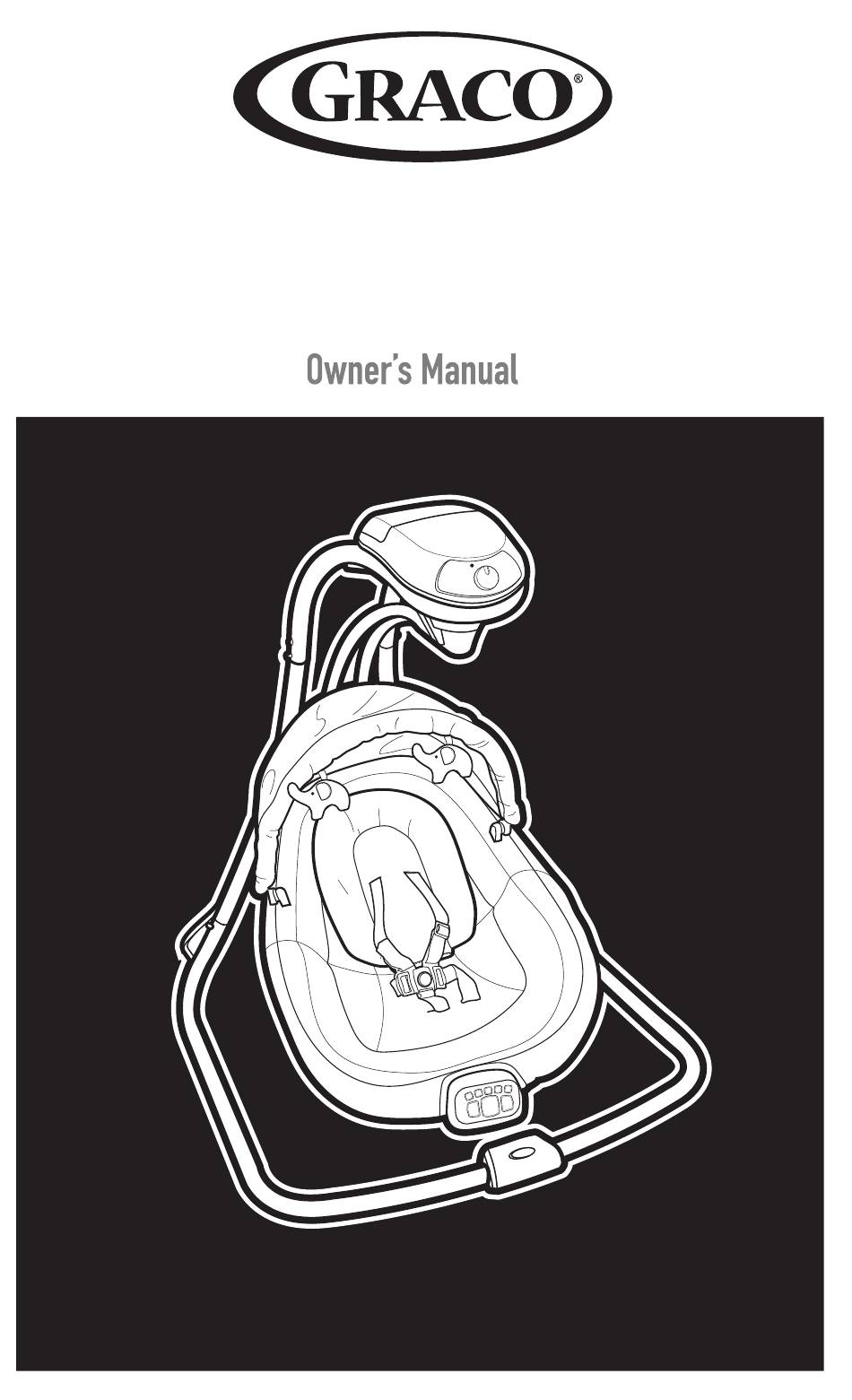

- Page 1 OASIS SWING with SOOTHE SURROUND Technology PD348757C 9/15...
-
Page 2: Table Of Contents
1 WARNING 4-15 Pages 2 Features 16-17 Pages Parts list Features on Certain Models 3 Assembly 18-25 Pages Seat Assembly Assembling Swing Frame Installing Seat... - Page 3 4 Use 26-41 Pages To Adjust Recline (2 positions) To Secure Child Installing Batteries (not included) 4-D To Use Wall Plug Starting Swing (6 Speed) To Use Vibration 4-G Problem Solving 5 Cleaning 42-44 Pages Care and Maintenance Replacement Parts • Warranty Information (USA) Product Registration (USA)
-
Page 4: Warning
Prevent serious injury or death: Failure to follow these warnings and the assembly instructions could result in serious injury or death. STRANGULATION HAZARD: • PLEASE SAVE OWNER’S • DO NOT suspend strings MANUAL FOR FUTURE USE. over the product or attach •... - Page 5 • DO NOT use the AC adapter if it has been exposed to liquids, has been dropped, or is damaged. • Protect the power cord. Place it so it is not walked on or pinched by furniture or other items. •...
- Page 6 FOR SAFE BATTERY USE: Keep the batteries out of children’s reach. Any battery may leak battery acid if mixed with a different battery type, if inserted incorrectly (put in backwards) or if all batteries are not replaced or recharged at the same time. Do not mix old and new batteries.
- Page 7 Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules.
-
Page 8: Features
2-A Parts list This model may not include some features shown below. Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service. Tools required: Phillips Screwdriver ALL MODELS Styles vary FEATURES ON CERTAIN MODELS... - Page 9 Features on Certain Models This model may not include some features. DO NOT use any other accessories with this product. Head support Only use this head support on this Styles vary swing. Never use this head support on any other product.
-
Page 10: Assembly
Assembly Seat 1. Pull the seat pad off the top portion of the shell. 2. Pull the seat pad off the bottom portion of the shell. - Page 11 3. Turn shell over and fasten vibration unit to shell with 4 screws as shown. 4. Wrap the bottom portion of the seat pad around the bottom of the shell as shown. 5. Wrap the top portion of the seat pad around the top of the shell as shown.
- Page 12 6. Insert canopy legs into slots in the shell. SNAP! 7. Wrap canopy over back of bouncer and attach fastening strips. Styles vary 8. Attach toys as shown.
- Page 13 Assembling Swing Frame 1. Place carton on ground. Lay unit down as shown. Plug wires together as shown and insert wires inside tube. 2. Insert motor housing tubes to leg tubes as shown. SNAP!
- Page 14 3. Insert vertical tubes into base tubes as shown. SNAP! SNAP!
- Page 15 4. Grab base tubes and push down while inserting tubes together. 5. Place the cover on tubes as shown. Installation complete.
- Page 16 Installing Seat 1. Insert rectangle end of the hanger tube into motor housing. Repeat for other hanger tube. CHECK that hanger tube is secured in housing by pulling firmly on it. SNAP!
- Page 17 2. Insert hanger tube into seat mounts on sides of seat. Repeat for other hanger tube. CHECK that hanger tube is secured in housing by pulling SNAP! firmly on it. Installation complete.
- Page 18 To Adjust Recline (2 positions) Use the most reclined position for newborn and young babies. Use the more upright position for older, more active infants. 1. Squeeze both tabs on the side of the seat and rotate up or down.
- Page 19 To Secure Child WARNING Falling Hazard: Always use the seat belt. 1. To open, press button on buckle to release the waist straps. 2. To close, slide shoulder strap connectors to waist straps and insert into buckle.
- Page 20 3. Use slide adjuster at shoulder and waist for tighter adjustment. 4. To change harness slots, pull the seat pad off the top portion of the shell. 5. Pull harness straps out of harness slots in the pad and thread into the new harness slots.
- Page 21 6. Pull harness straps out of the shell and thread the straps into the new slots. Make sure straps are even. 7. Wrap the top portion of the seat pad back around the top of the shell.Make sure straps are even.
- Page 22 8. The harness straps must go into the slot that is even with or slightly above the shoulders. Avoid twisting straps.
- Page 23 Installing Batteries (not included) WARNING To avoid injury: Remove child from swing before changing batteries. 1. With baby out of swing, open the battery compartment lid by inserting a screwdriver into the coin slot. Insert four D (LR20-1.5V) cell batteries. CHECK that the batteries are put in correctly.
- Page 24 To Use Wall Plug WARNING Product does not recharge batteries. When AC adapter is in use, batteries will automatically shut off. DO NOT place product near water and moisture. Do not use the product near possible wet areas, such as a bathtub, shower, wash basin, sink, laundry tub, swimming pool, wet basement, etc.
- Page 25 Starting Swing (6 Speed) WARNING avoid serious injury from falling or sliding out. Always use seat belt. After fastening buckles, adjust belts to get a snug fit around your infant. TO TURN SWING ON: Rotate the speed dial clockwise, and lightly push the swing to get it started. Observe the swinging motion for a minute.
- Page 26 6. Low Battery Alert- When you select a swing speed (other than OFF) it will check the battery voltage if they are installed. If the batteries are low, the LED will blink - 1 second on, 1 second off. 7. 1-6 set the speed of the product. Speed 1 moves the product a little.
- Page 27 To Use Vibration 1. Remove battery lid, found under seat, with a phillips screwdriver and insert 3-C (LR14-1.5V) batteries in module. Replace lid. 2. Vibration: Push “Vibration Up” button, or select an enviroment to play.
- Page 28 (Power) Turns vibration and sound/music off. (Volume Up) Raises sound/music volume. Pad Print 1:1 scale (Volume Down) Lowers sound/music volume. Vibration will still play if volume is lowered to "off". (Vibration) Switches vibration level between high and low. For steady vibration only, push the "Power" button to turn everything off, then push the "Vibration"...
- Page 29 (Vibration Off) Turns vibration off. Sound/music will still play even when vibration is off. Pad Print 1:1 scale (Car Ride Enviroment) Car ride sound will play with matching vibration. (Heart Beat Enviroment) Heart beat sound will play with matching vibration. (Stroller Ride Enviroment) Stroller ride and nature sounds will play with matching vibration.
- Page 30 Problem Solving SWING WON’T OPERATE: 1. No batteries in swing. 2. Batteries dead. 3. Speed setting too low. 4. Batteries in backwards — check “+” and “-”. 5. Corrosion on battery terminals. Rotate batteries in place against terminals, or clean with sandpaper or steel wool if corrosion is severe. 6.
- Page 31 5-E TO TIME CHECK YOUR SWING for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco replacement parts. 6-TO CLEAN SEAT COVER, Refer to your care tag on your seat pad for washing instructions.
Need help?
Do you have a question about the OASIS and is the answer not in the manual?
Questions and answers

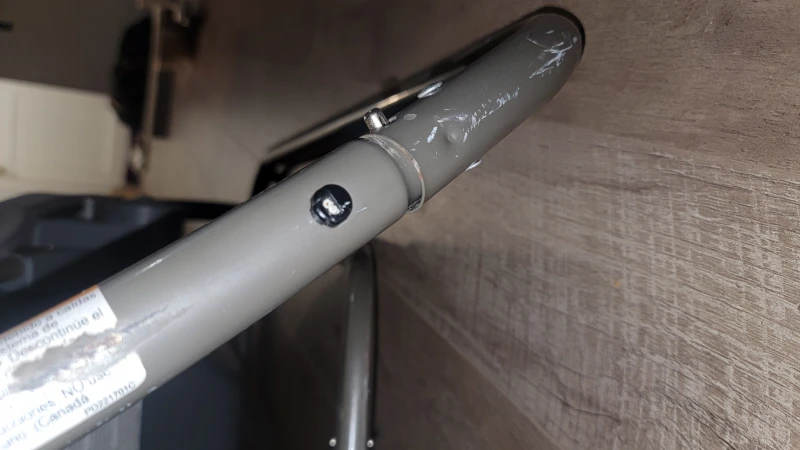

The insert for the wall plug seems to have broken off is there anyway to replace it I can send photos
The manual does not provide instructions for replacing a broken wall plug insert. It only states to use the provided power cord and not to use an extension cord. If the wall plug insert is broken, do not use the AC adapter and seek a replacement from the manufacturer.
This answer is automatically generated
