SPECIFICATIONS

Input Power: 2 Watts @ 120 vac
Output Relay: NO Contact; 20A ,
or 1 HP @ 120 VAC,
with 30 sec ON delay
NC contacts; 10A or 1/3 HP
30 amp relay is option
Optional: power receptacle and
cord for line-voltage operation.
Product # SOLR-2EHW-20 With Conduit Holes for Hard Wiring
PR# SOLR-2EHW-20
DATA PORT
REMOTE DISPLAY
COMPUTER RS232
UPDATE INTERVAL
6 MIN.
RELAY (PUMP/FAN)
CM- 120VAC 10%
NO- 20A / 1HP LOAD
NC- 10A / 1/4HP
FOUR ½" CONDUIT
HOLES HERE & SIDES
RECEPTACLE 5-15R
SWITCHED UNFUSED
15 A (1HP) MAX. PER
CORD RATING
PR# SOLR-2ELC
Product # SOLR-1ELC-10, -15 With Line Cord & Receptacle
CONTROLLERS:
With line cord & receptacle
With conduit holes for permanent wiring - 20 amp rated -
INSTRUMENTATION WITH QUALITY ENGINEERING INSTRUMENTATION WITH QUALITY ENGINEERING
OVERRIDE JUMPERS: (ONE OR NONE)
RELAY (PUMP)
FZ- FREEZE PROTECT (37 ON 52 OFF)
OVERRIDE SWITCH
LO- LOW LIMIT COL (50 OFF 70 ON)
AUT- NORMAL SETTING
:
RJ-45
OR
2 SEC.
:
±
:
- 10 amp rated -
- 15 amp rated -
- 30 amp rated -
Differential: 8/4 to 24/4 F
High Limit: 110 to 200 F
°
Accuracy: +/- 1 F
Environmental: -10 to 120 F
0 to 95% RH
Temperature Sensors: 10K @ 25C/77 F
Dimensions 5.00"W x 6.00"H x 2.50"Deep

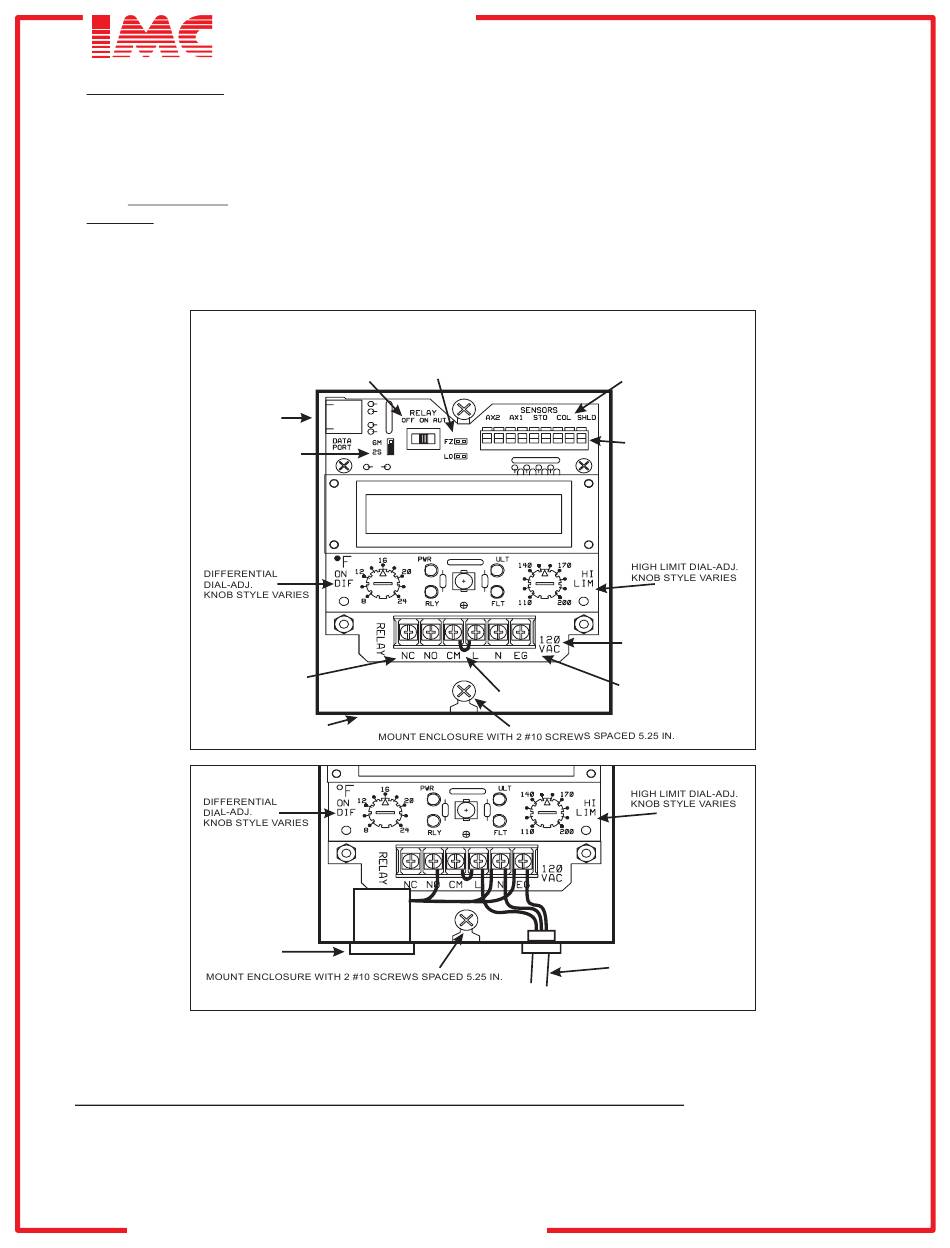

TEMPERATURE
SENSORS (4)
SHD- CABLE SHIELDS
COL- COLLECTOR
STO- STORAGE
AX1 & 2- OPTIONAL
PRESS ORANGE
BUTTON TO OPEN
HOLE FOR WIRE
(22 TO 18 GA)
POWER WIRING:
USE 12 TO 18 GA.
PER LOCAL CODES
CIRCUIT POWER (2.4W)
EG- EARTH GROUND
20AMP POWER
N- NEUTRAL (WHT)
COPPER JUMPER
L - 120VAC 10% (BLK)
POWER INPUT/OUTPUT
120VAC 10% 50/60 HZ
CORD WITH 5-15P PLUG
10 A (18AWG CORD)
13 A (16AWG CORD)
15 A (14AWG CORD)
6 ½ FT LG.
PRODUCT #
SOLR-2ELC-10
SOLR-2ELC-15
SOLR-2EHW-20
SOLR-2EHW-30
°
°
°
°
:
:
±
:
±
