IMC SOLAR EAGLE 2 User Manual

IMC SOLAR EAGLE
MAIN FEATURES
- Microprocessor programed specifically for
optimal performance of "DRAINBACK" systems
used for heating pools*.
- Large easy-to-read 40 character (2x20) backlit
LCD display showing every parameter measured
and controlled by the onboard microprocessor.
- With IMC's exclusive "DATA PORT" designed
for use with one of these optional devices:
- REMOTE 4 LINE LCD DISPLAY
- DATA ADAPTER TO PC'S RS-232
- DATA ADAPTER TO PC'S USB
- SD CARD RECORDER
- BACNET INTERFACE
This unique transmitter allows these devices to be
located up to 500 feet away connected with a
conventional CAT-5 cable.
- Model "IP" has an electrically isolated
DATA PORT to maximize reliability for systems
requiring permanent monitoring.
- Power relay that can handle up to 20 A or 2 HP.
See specifications on p.3 for complete ratings.
- Fault LED indicators for simple diagnostics
.
- Electrostatic discharge protected electronics
- Polyester coated 16 gage rugged steel
enclosure with features for efficient installation.
- Reliable operation when installed where the
ambient swings do not exceed -10 to 120 °F
* Model is available with power cord and receptacle
for simpler installation.
Also available, model with external pool
temperature adjustor.
®
INSTRUMENTS, INC.
2

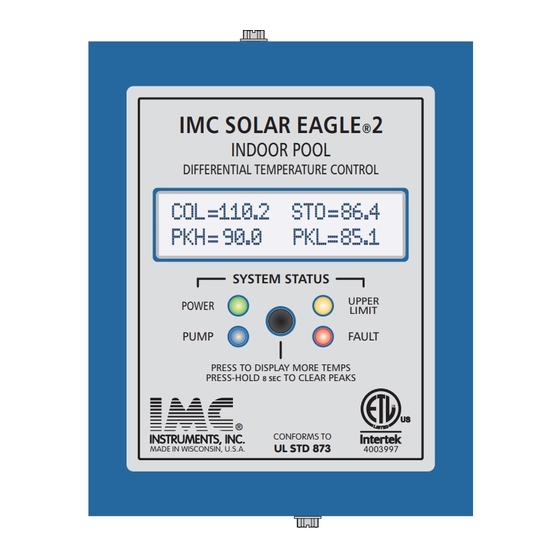

DIFFERENTIAL TEMPERATURE CONTROLLERS
®
IMC SOLAR EAGLE 2
INDOOR POOL
DIFFERENTIAL TEMPERATURE CONTROL
COL =110.2 STO = 86.4
PKH = 90.0
SYSTEM STATUS
POWER
PUMP
PRESS TO DISPLAY MORE TEMPS
PRESS-HOLD TO CLEAR PEAKS
8 SEC
®
CONFORMS TO
INSTRUMENTS, INC.
UL STD 873
MADE IN WISCONSIN, U.S.A.
SHOWN AT 5/8 SCALE
CONTROLLERS conform to UL
STD 873 with 1/2" conduit holes
for permanent wiring "hard wired":
.
Product #
E2W1-2000-PL
with NON-isolated DATA PORT
.
E2W1-2000-PLIP
with isolated DATA PORT
Tel : 715- 253-2801 Fax
468 Liberty Drive Wittenberg, WI 54499 U.S.A.

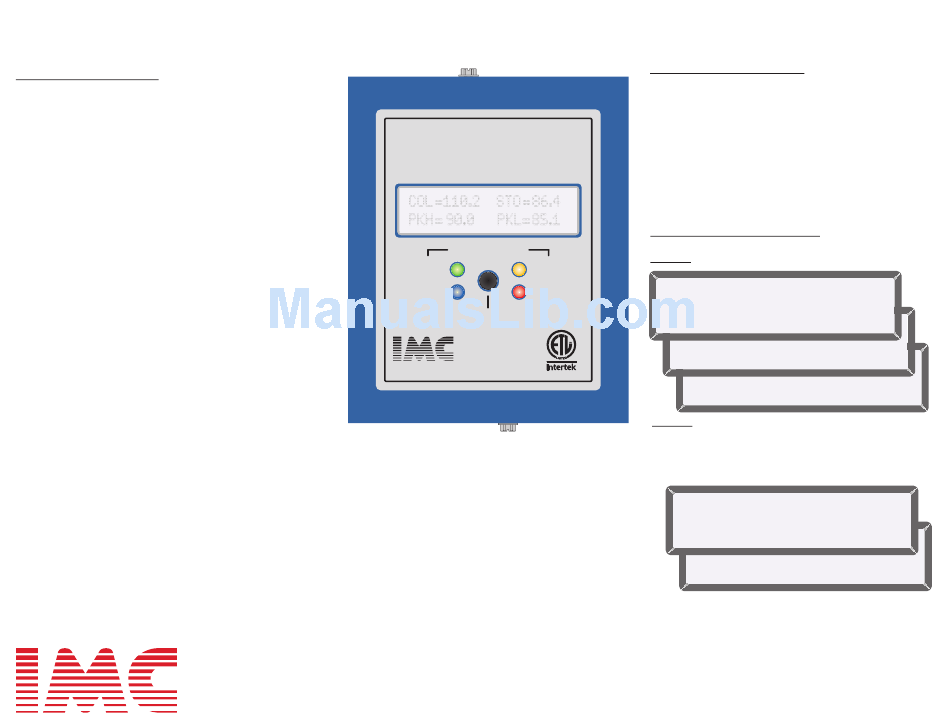

LOCAL LCD DISPLAY

The LCD display has 2 lines of 20 characters
each. The first line permanently displays the
COLLECTOR and the STORAGE temperatures.
The second line can be paged (switched) by
®
pressing the black button. These 4 pages (as
sampled below) display all system information
including OVERRIDE messages.
PKL= 85.1
Page 1 is shown on product.
Page 2
UPPER
LIMIT
COL =110.2 POL = 86.4 COL =110.2 POL = 86.4
FAULT
DIF = 08.0 DIF = 08.0
COL =174.1 STO = 1 62.1 COL =174.1 STO = 1 62.1
AX1= 89.6 AX1= 89.6
U S
4003997
Page 4

SYSTEM OVERRIDE MESSAGES

on the LOWER LCD LINE as follows:
: 715- 253-2811
HIL = 90.0 HIL = 90.0
Ax2= OPEN. Ax2= OPEN.
COL =174.1 STO = 1 62.1 COL =174.1 STO = 1 62.1
PMP = OFF PMP = OFF UPL= ON UPL= ON
COL =110.2 POL = 86.4 COL =110.2 POL = 86.4
LOWTEMP-PMP>OF LOWTEMP-PMP>OF
COL =174.1 STO = 1 62.1 COL =174.1 STO = 1 62.1
FREZE-PMP->ON FREZE-PMP->ON
Web: www.solar.imcinstruments.com
E2W1-2000-PL
Rev 11-01-11
FLASH
PG- 1
