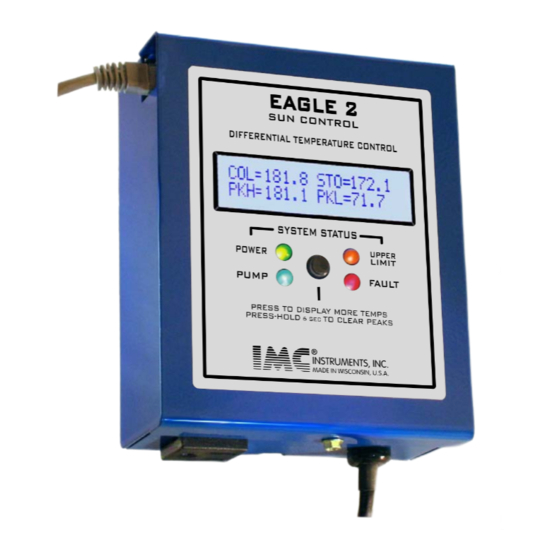

SERVICE AND INSTALLATION INSTRUCTIONS
MAIN FEATURES
- Microprocessor accuracy and
dependability with ambient
operation from -10 to 120 F
- Large easy-to-read 40 character (20x2) backlit LCD
display showing every parameter measured and
Controlled by the microprocessor.
- PC DATA PORT with built-in transmitter allows optional
adapter and up to 500 ft. cable to interface with computers
for ease in startup and remote diagnostics. Or, for adding
an Optional large 80 character (4x20) backlit LCD display.
Remote-mount up to 150 ft. distances with a CAT-5 cable.
- Long-term diagnostics and data logging is possible using
communications software that is included in Windows' OS.
- Fault LED indicators for quick servicing and diagnostics
- Features for fast installation and wiring
- Electrostatic discharge protected
- One HP or 20 AMP high reliability relay
- Polyester coated 16 gage rugged steel enclosure
- Model available with receptacle & power cord or with 1/2"
conduit holes for higher current permanent wiring
- Two industrial 400°F (204°C) rated 10 K thermistors with +/- 1°F accuracy are included.
- Two auxiliary thermistor inputs for optional sensors that can be located up to 1000' away.
- Selectable overrides for low temperature shut down or freeze protection modes for safe operation.

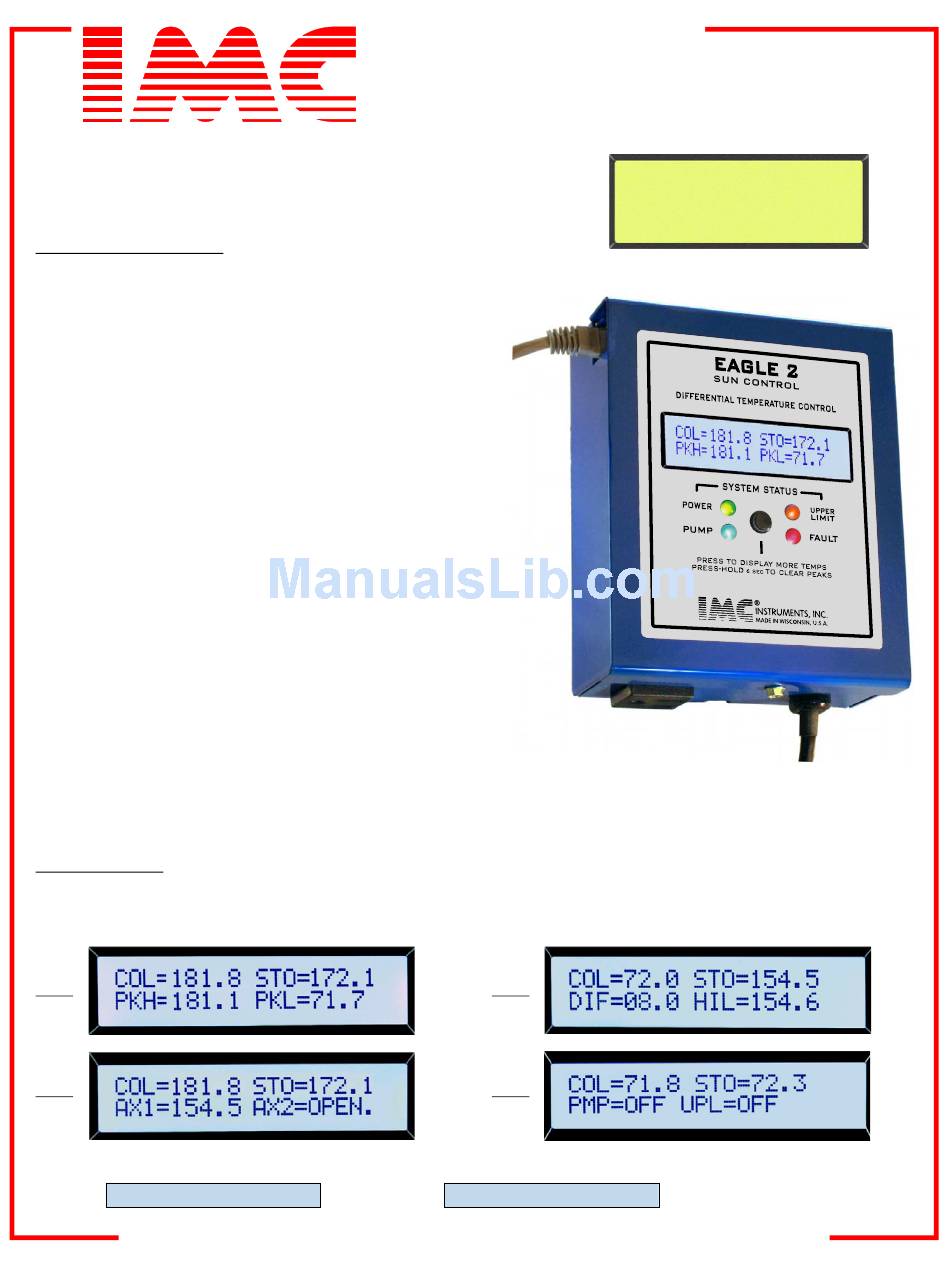

LCD DISPLAY
The LCD display has 2 lines of 20 characters each. The first line permanently displays the COLLECTOR and the
STORAGE temperatures. The second line can be paged by pressing the button located just below the LCD
display. The following 4 pages display all system information including OVERRIDE messages.
PG 1
PG 3
SYSTEM OVERRIDE MESSAGES
LOWTEMP-PMP>OF
INSTRUMENTATION WITH QUALITY ENGINEERING
INSTRUMENTATION WITH QUALITY ENGINEERING
INSTRUMENTS, INC.
INSTRUMENTS, INC.
468 Liberty Drive
Wittenberg, WI 54499
®
EAGLE 2
SUN CONTROL
SUN CONTROL
DIFFERENTIAL TEMPERATURE CONTROLLER
°
FLASH
on the LOWER LCD LINE as follows:
:
Tel
:
Fax
U.S.A.
Web
COL=174.1
COL=174.1
PKH =18 0.4
PKH =18 0.4
DI F=0 8 . 0
DI F=0 8 . 0
PMP= O N
PMP= O N
IMC'S LCD MASTER DIGITAL DISPLAY PANEL
P# SOLR-2ELC-10
PG 2
PG 4
FREZE-PMP->ON
715- 253-2801 Ver.11-01-2008
715- 253-2811
:
www.solar.imcinstruments.com
STO= 1 10 . 4
STO= 1 10 . 4
PKL= 6 0 . 1
PKL= 6 0 . 1
H IL= 17 5 . 3
H IL= 17 5 . 3
UPL=ON
UPL=ON
FOR REMOTE INDICATION
Advertisement
Table of Contents
Related Manuals for IMC EAGLE 2 SOLR-2ELC-10
Summary of Contents for IMC EAGLE 2 SOLR-2ELC-10
- Page 1 PMP= O N PMP= O N UPL=ON UPL=ON MAIN FEATURES SUN CONTROL SUN CONTROL IMC’S LCD MASTER DIGITAL DISPLAY PANEL - Microprocessor accuracy and FOR REMOTE INDICATION DIFFERENTIAL TEMPERATURE CONTROLLER dependability with ambient operation from -10 to 120 F °...
- Page 2 OFF ON An IMC LCD MASTER DIGITAL DISPLAY PANEL can also be connected to the DATA PORT. It has an RJ-45 jack and is supplied with a 3 foot long cable that can be substituted with a standard CAT5 cable up to150 feet long.
-
Page 3: Important Notice
ON SENSORS- Industrial 400°F (204°C) rated 10K IMC thermistors have +/- 1°F accuracy. When installed, they will not exceed ONE degree of additional error for cable distances up to 1000 feet of 18ga., 700 feet of 20ga. or 500 feet of 22ga. -
Page 4: Installation
DATA LOGGING TO A COMPUTER- All the EAGLE Solar controllers can be connected to the serial port of a PC or Laptop computers. An IMC DATA PORT/RS232 adapter is required. The maximum recommended adapter cable length is 500 feet. All Windows operating systems have a communications programs such as “Terminal”... -
Page 5: Specifications
INSTRUMENTS, INC. INSTRUMENTS, INC. ® SPECIFICATIONS Input Power: Relay Action: 2 Watts @ 120VAC* 30sec delay ON; no delay OFF Relay Contact Ratings: Differential: Adjustable 8 to 24 F; fixed 4 F reset ° ° #832 UL #E88991, CSA #1429333 High Limit: Adjustable from 110 to 200 F °... - Page 6 INSTRUMENTS, INC. INSTRUMENTS, INC. ® CONTROLLERS (120vac power) RATING PRODUCT # With line cord & receptacle - 10 Amp SOLR-2ELC-10 15 Amp SOLR-2ELC-15 With conduit holes for permanent wiring - 20 Amp SOLR-2EHW-20 30 Amp SOLR-2EHW-30 ACCESSORIES THERMISTOR TEMPERATURE SENSORS- RATED TO 400 F: Bolt-on style: SOLR-TS02 Screw-in style: SOLR-TS03...
- Page 7 Housing dimensions are 4.33” (110mm) wide x 2.34” (82mm) high x 1.73” (44mm) deep. * IMPORTANT NOTICE Do NOT attempt to connect any ETHERNET device or any other non- IMC devices to the RJ-45 DATA-PORT of any IMC CONTROLLER or accessory. This will result in damage to the connected equipment. Connect...
- Page 8 VER: 11-01-08 PRINTED IN U.S.A.
