IMC Eagle 2 SUN CONTROL Service And Installation Instructions

IMC Eagle 2 SUN CONTROL Service And Installation Instructions

Differential temperature controller

Advertisement

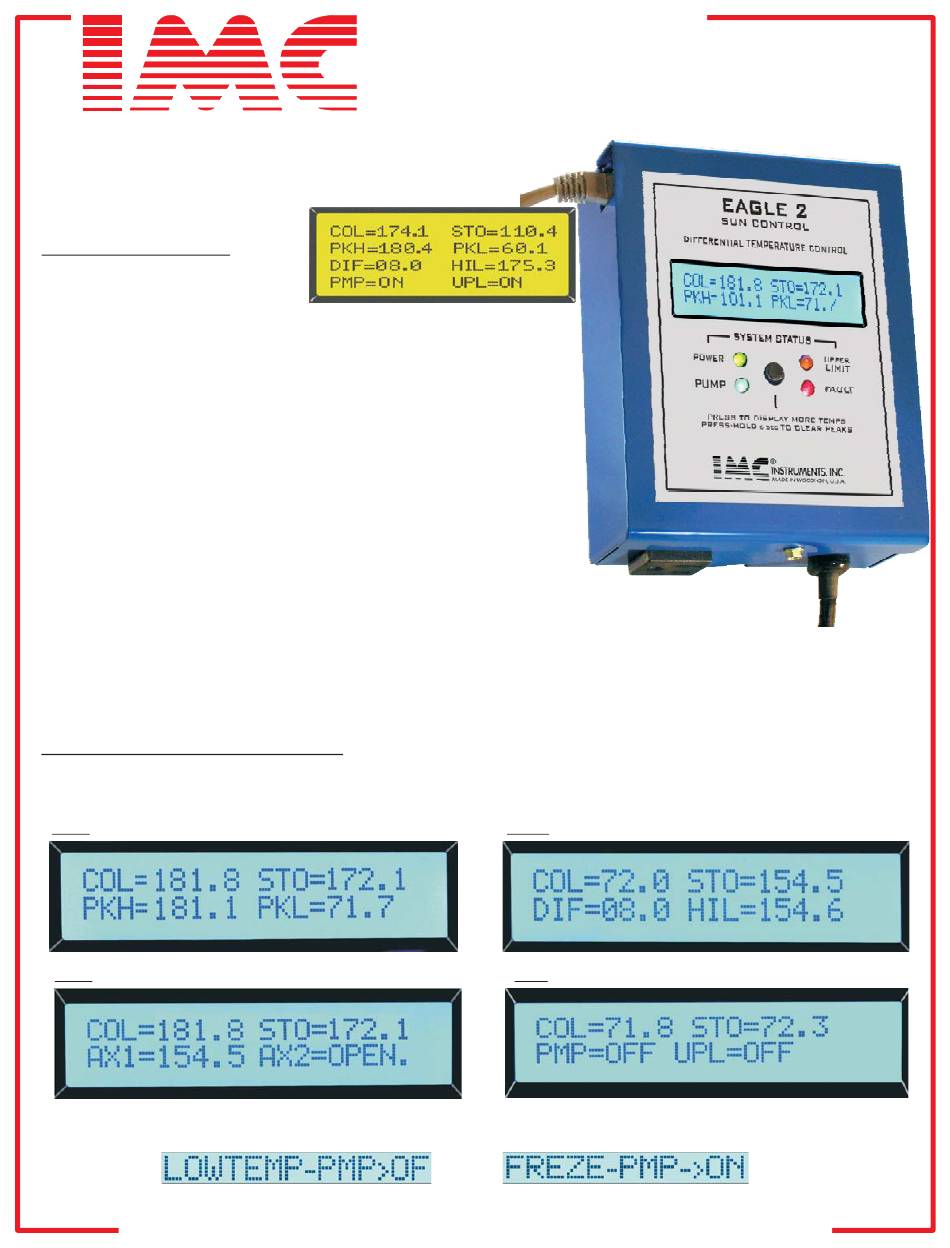

SERVICE AND INSTALLATION INSTRUCTIONS
MAIN FEATURES
- Microprocessor
accuracy and
dependability with ambient
operation from -10 to 120 F
- Large easy to read 40 character
display
showing every parameter measured and controlled
by the microprocessor.
- Plugin adapter
for IMC's
indicator for distances up to 150 feet with a CAT-5 cable.
- Fault LED indicators
- PC Serial DATA port with built in transmitter
foot long cable for ease in remote startup and diagnostics.
Full industrial isolation is available for safe PC interface.
- Long-term diagnostics
software that is included with Windows OS.
- Fast and easy
installation with screw-less sensor terminals
and easy access for all other wiring.
- Electrostatic
discharge protected.
- True one HP
Hi-Reliability relay operation.
- Polyester coated 16 gage
- Industrial Rated 400 °F(204°C) 10 K thermistors
- Two additional auxiliary Thermistor inputs
- Selectable Overrides
OPERATION- LCD DISPLAY
The LCD display has 2 lines of 20 characters each. The first line permanently displays the COLLECTOR and
the STORAGE temperatures. The second line can be paged by pressing the button located just below the
LCD display. The following 4 pages display all system information including OVERRIDE messages.
PG 1
PG 3
SYSTEM OVERRIDE MESSAGES
INSTRUMENTATION WITH QUALITY ENGINEERING
INSTRUMENTATION WITH QUALITY ENGINEERING
INSTRUMENTS, INC.
INSTRUMENTS, INC.
468 Liberty Drive
Wittenberg, WI 54499
USA
IMC LCD MASTER DIGITAL DISPLAY PANEL
IMC LCD MASTER DIGITAL DISPLAY PANEL
for REMOTE indication
for REMOTE indication
°
(20x2) back light LCD
REMOTE DISPLAY
for quick servicing and diagnostics.
and PC data logging using "Terminal"
rugged steel enclosure.
for
low temperature Shut down
FLASH
on the LOWER LCD LINE as follows:
TEL 715- 253-2801
FAX 715- 253-2811
www.imcinstruments.com
monitor and
for up to 500
Product # SOLR-2ELC-10 (pictured)
with +/- 1 °F accuracy.
which can be located up to 1000' away.
or
Freeze protection
PG 2
PG4
Ver. 10-05-2007

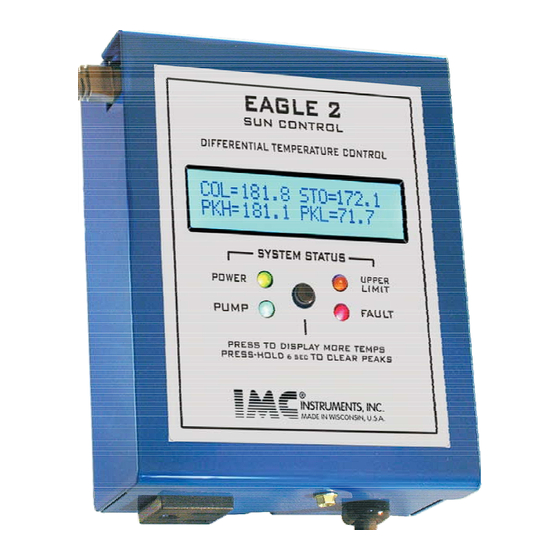

EAGLE 2
EAGLE 2
SUN CONTROL
SUN CONTROL
DIFFERENTIAL TEMPERATURE CONTROLLER
DIFFERENTIAL TEMPERATURE CONTROLLER
modes for
SAFE
operation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eagle 2 SUN CONTROL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IMC Eagle 2 SUN CONTROL

  • Page 1 EAGLE 2 SUN CONTROL SUN CONTROL SERVICE AND INSTALLATION INSTRUCTIONS DIFFERENTIAL TEMPERATURE CONTROLLER DIFFERENTIAL TEMPERATURE CONTROLLER IMC LCD MASTER DIGITAL DISPLAY PANEL IMC LCD MASTER DIGITAL DISPLAY PANEL for REMOTE indication for REMOTE indication MAIN FEATURES - Microprocessor accuracy and...
  • Page 2: Operation-Controller

    DATA PORT- Requires an IMC-Data port/RS232 ADAPTER. This will allow interface to a standard PC serial port. The ADAPTER can further accept a serial/USB converter to connect directly to PC or Laptops that only have USB ports.
  • Page 3: Status Indication Leds

    Please consult local, State and federal codes for proper grounding. SETTING UP A PC- All the EAGLE Solar controllers can be connected to the serial port of a PC or Laptop computers. An IMC DATA PORT/RS232 adapter is required. The maximum recommended adapter cable length is 500 feet. All Windows operating systems have a communications programs such at “TERMINAL or HYPER-TERMINAL”...
  • Page 4: Specifications

    INSTRUMENTS, INC. INSTRUMENTS, INC. SPECIFICATIONS Input Power: 2 Watts @ 120 vac ° Differential: 8/4 to 24/4 F Output Relay: NO Contact; 20A , ° High Limit: 110 to 200 F or 1 HP @ 120 VAC, ° Accuracy: +/- 1 F with 30 sec ON delay °...
  • Page 5: Thermistor Temperature Sensors

    INSTRUMENTS, INC. INSTRUMENTS, INC. ACCESSORIES: THERMISTOR TEMPERATURE SENSORS: Bolt-on style -SOLR-TS02 Screw-on 1/2” hex plug style -SOLR-TS03 Immersion style with 1/4NPT fitting - 4” long -SOLR-TS04 (or 1/2”) - 8” long -SOLR-TS05 longer are available- special request for temperature and status -SOLR-RD80 LCD MASTER DIGITAL DISPLAY PANE 80 characters (4x20) 1/4”...
  • Page 6 Do not attempt to connect any ETHERNET and/or other foreign devices to the RJ45 ports of all the IMC CONTROLLERS and accessories. This will result in damage to the connected equipment. Only devices specifically designed by IMC Instruments should be connect to these ports.

This manual is also suitable for:

Solr-2elc-15Solr-2elc-10Solr-2ehw-20Solr-2ehw-30
