Product View - Motorola MT7711 User Manual

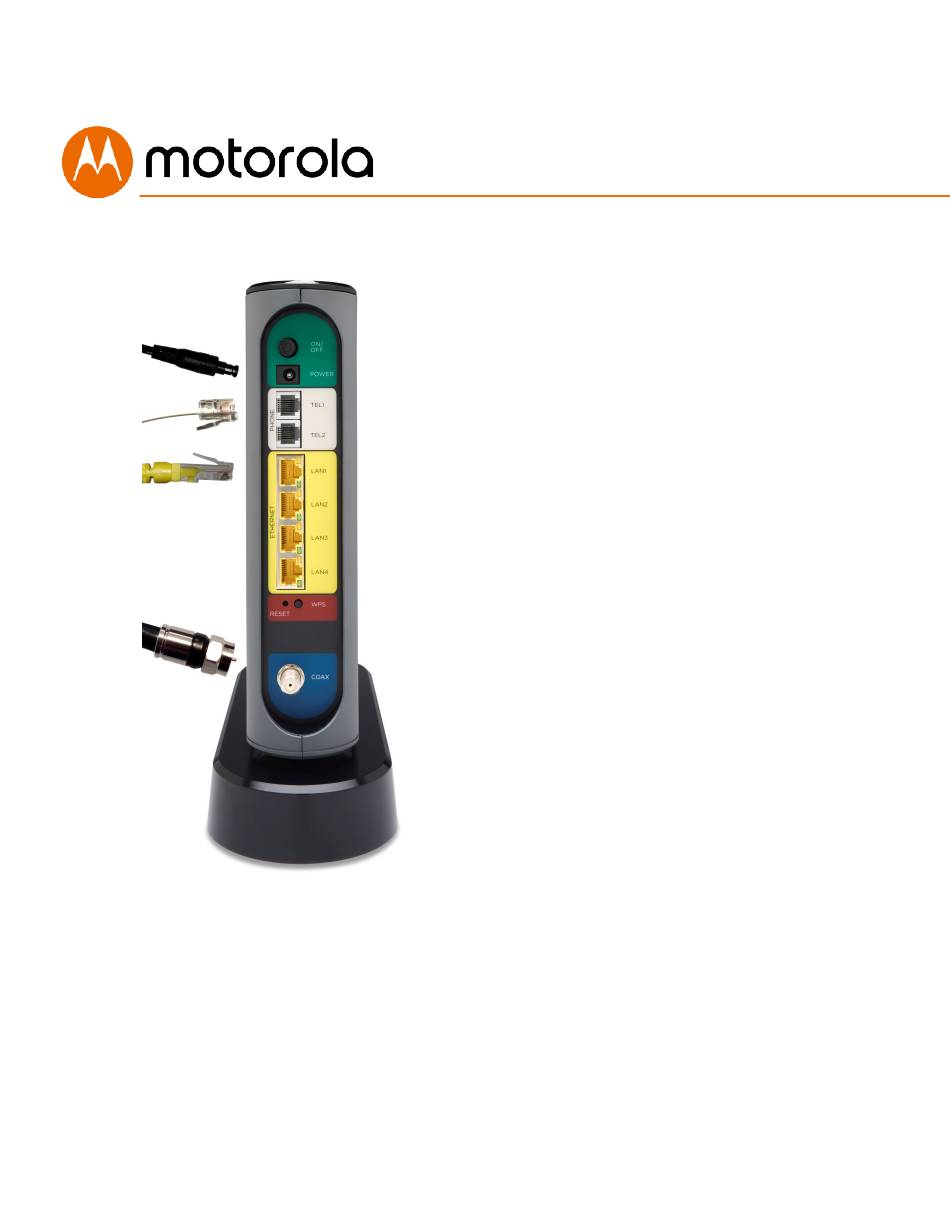

ON/OFF button
POWER
Connect the supplied power
supply between the power jack
and an electrical outlet.
If you have Xfinity
PHONE (TEL 1-2)
phone service, you can connect
telephones to either or both of
these phone jacks.
ETHERNET (LAN 1-4)
You can connect a computer,
HDTV, game station, or other
Ethernet-capable device to any of
these 4 LAN ports.
RESET
WPS button
COAX
Connect a "live" coax cable to the
modem's COAX connector as
discussed above. (Tighten the nut
so it's finger tight. You may want to
use the supplied wrench. Make the
connection snug but not over-tight.)
