  • Page 1 Technical noTe Lightning Protection guide MoToRola PoinT-To-PoinT BRoaDBanD WiReleSS SolUTionS MoToRola PTP 400 and 600 SeRieS WiReleSS eTheRneT BRiDGeS...

  • Page 2: Table Of Contents

    MoToroLA, the stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, inc. ® reg. uS Pat & Tm. office. All other product or service names are the property of their respective owners. © 006 Motorola, inc. All rights reserved.

  • Page 3: Introduction

    This Technical Note provides you with detailed instructions for setting up lightning arrestors to protect your Motorola PTP 400 and 600 Series bridges. The recommendations provided in this Technical Note will provide the best protection from the harmful effects of electro-magnetic discharge (eMd). The Surge Arrestor (ALPu-orT) should be used on all PTP 400 and 600 bridge interface ports, including the ethernet, T1/e1 and power ports.

  • Page 4: Recommended Tower/Mast Installation For Ptp 400 And 600 Series Bridges

    • 8 AWg grounding cable (minimum gauge) note: Lightning damage is not covered under the Motorola Warranty. When correctly installed, the recommendations on this page and in this Technical Note give the user the best protection from the harmful effects of lightning. however, 100% protection is not implied or possible.

  • Page 5: Recommended Wall-Mount Installation For Ptp 400 And 600 Series Bridges

    • 8 AWg grounding cable (minimum gauge) note: Lightning damage is not covered under the Motorola Warranty. When correctly installed, the recommendations on this page and in this Technical Note give the user the best protection from the harmful effects of lightning. however, 100% protection is not implied or possible.

  • Page 6: Recommended Tower/Mast Installation For Ptp 600 Series Bridges With T1/E1

    • 8 AWg grounding cable (minimum gauge) note: Lightning damage is not covered under the Motorola Warranty. When correctly installed, the recommendations on this page and in this Technical Note give the user the best protection from the harmful effects of lightning. however, 100% protection is not implied or possible.

  • Page 7: Recommended Wall-Mount Installation For Ptp 600 Series Bridges With T1/E1

    • 8 AWg grounding cable (minimum gauge) note: Lightning damage is not covered under the Motorola Warranty. When correctly installed, the recommendations on this page and in this Technical Note give the user the best protection from the harmful effects of lightning. however, 100% protection is not implied or possible.

  • Page 8: Installation Diagrams

    110 Punch-Down Tool Make sure the surge arrestor box is mounted vertically with the cable glands at the bottom. cable to the Motorola PTP 400 or PTP 600 PiDU Plus inside the building. cable from the Motorola PTP 400 or PTP 600 outdoor unit (oDU).
  • Page 9 installation Diagram 2 attach a 6- or 8-gauge ground wire from a verified building ground point to the lug on the side of the suppressor. Tech NoTe: LighTNiNg ProTecTioN guide...

  • Page 10: Installation Diagrams

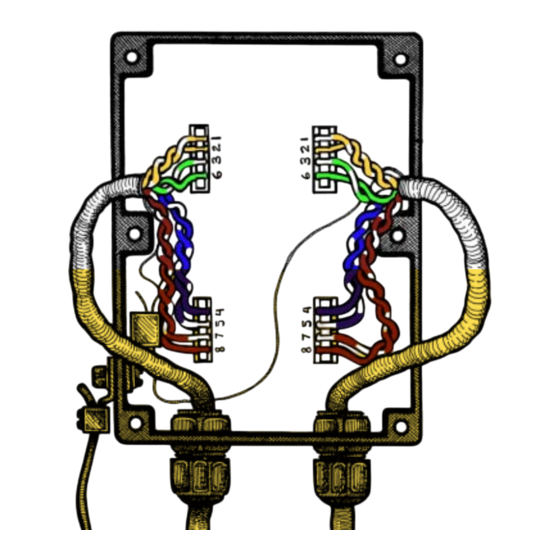

    installation Diagram 3 after terminating the cables, push the cables into the box and secure the cover with the screws. Shield drain wire from cable. Secure both shield drain wires onto the grounding lug. Shield drain wire from cable. Punch down the remaining wires in the color sequence shown above. (See the following wiring charts for details.) Terminal Terminal...

  • Page 11: Pre- And Post-Power Testing For The Ptp 400 Series Bridges

    Pre- and Post-Power Testing for the PTP 400 Series Bridges Pre-Power Testing for Motorola PTP 400 Series Bridges Before plugging in the rJ45 to the Pidu Plus, check the following impedances at the rJ45: check the cable resistance between pins  and 4 at the rJ45 against column  in the table.

  • Page 12: Pre- And Post-Power Testing For The Ptp 600 Series Bridges

    Pre- and Post-Power Testing for the PTP 600 Series Bridges Pre-Power Testing for Motorola PTP 600 Series Bridges Before plugging in the rJ45 to the Pidu Plus, check the following impedances at the rJ45: check the cable resistance between pins 1 and ,  and 6, 4 and 5, and  and 8 at the rJ45 against column  in the table.

  • Page 13: Pre-Power Testing For The Ptp 600 Series With T1/E1

    Pre-Power Testing for the PTP 600 Series with T1/e1 Pre-Power Testing for Motorola PTP 600 Series T1/e1 connections Before plugging in the rJ45 to the Pidu Plus, check the following impedances at the rJ45: check the cable resistance between pins  and 6 and pins  and 8 at the rJ45 against column  in the table.
  • Page 14 +1 8 515-0400 www.motorola.com/ptp MoToroLA, the stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, inc. ® reg. uS Pat & Tm. office. All other product or service names are the property of their respective owners.
