INSTALLATION
GB

INSTALLING THE SUPPORT

The standard installation procedure is described below. Unfortunately we cannot describe a procedure
applicable to all the situations.
Adapt this procedure to satisfy your own individual requirements.
Find the spot most suitable for the support based on the following criteria:
• The support must be positioned so that it can easily be
reached by the operator.
• Choose a clean, smooth, flat location.
• Check that the back of the panel into which the screws of
the support will be tightened is free from passing cables,
tubes, etc.
• Take particular attention when screwing into the panels or
parts of the boat. The screws must not weaken or cause
the breakage of structure of the boat.
• Place the support onto the chosen surface.
• Fix the support with the 2 screws provided.

INSERTING THE CHAIN COUNTER INTO THE SUPPORT

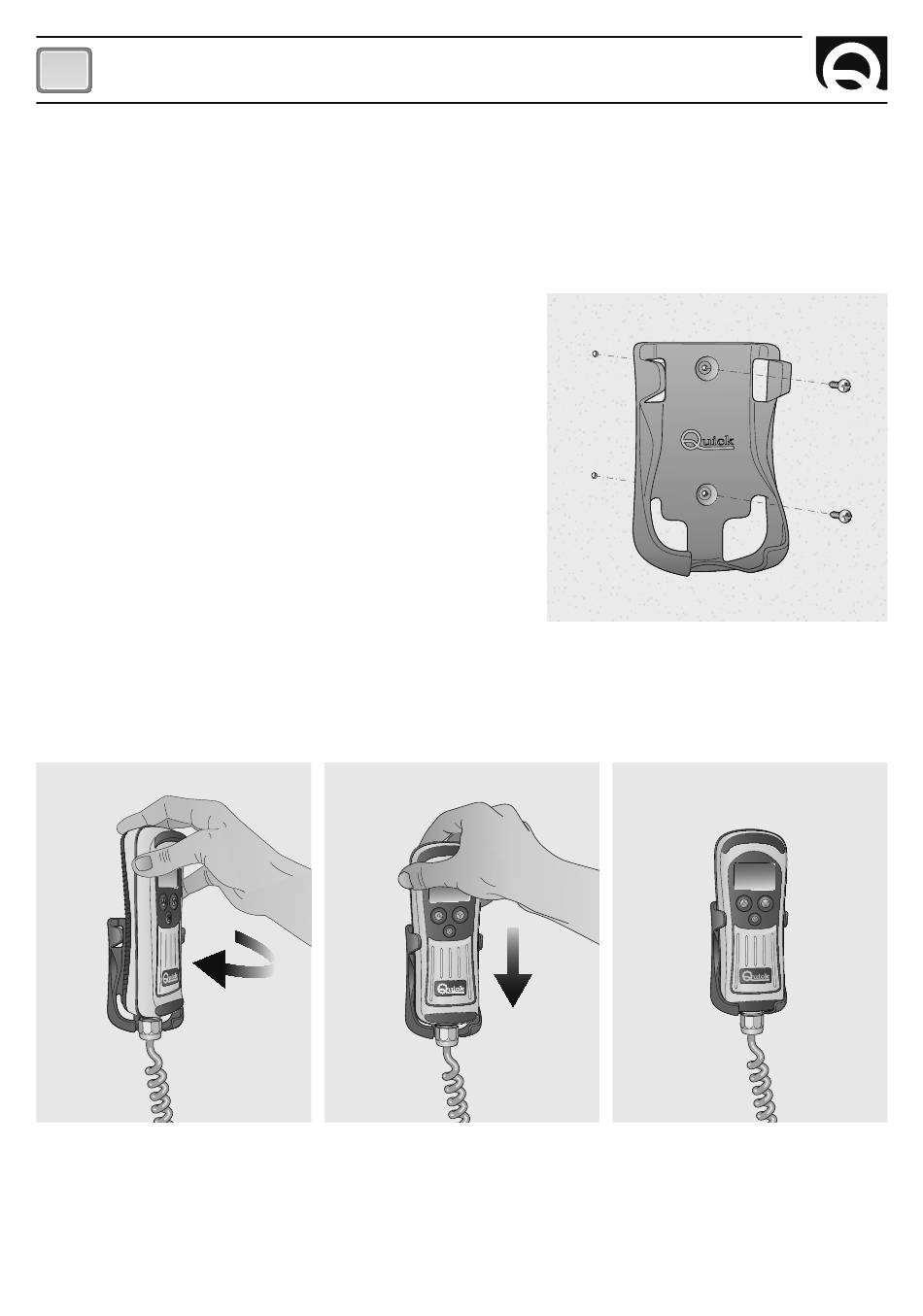

To insert the chain counter into the support, follow the instructions in the illustrated sequence:
Insert the chain counter slightly rotated into the support and continue the rotation until the chain counter
is parallel with the support.
Push the chain counter down until it is fully inserted into the support.
