INSTALLATION
GB

Connecting the instrument

After installing the socket as instructed above, proceed as directed below:
• Turn the cover's ring nut counter-clockwise and take it out.
• Insert the instrument's plug into the socket, being careful to plug it in the right direction.
• Turn the plug's ring nut clockwise until it is fully tightened.

Disconnecting the instrument

• Turn the plug's ring nut counter-clockwise and take it out.
• Cover the socket with the cover provided, turning the ring nut clockwise
ATTENTION: make certain the socket is covered with the cover provided when the instrument is
disconnected.

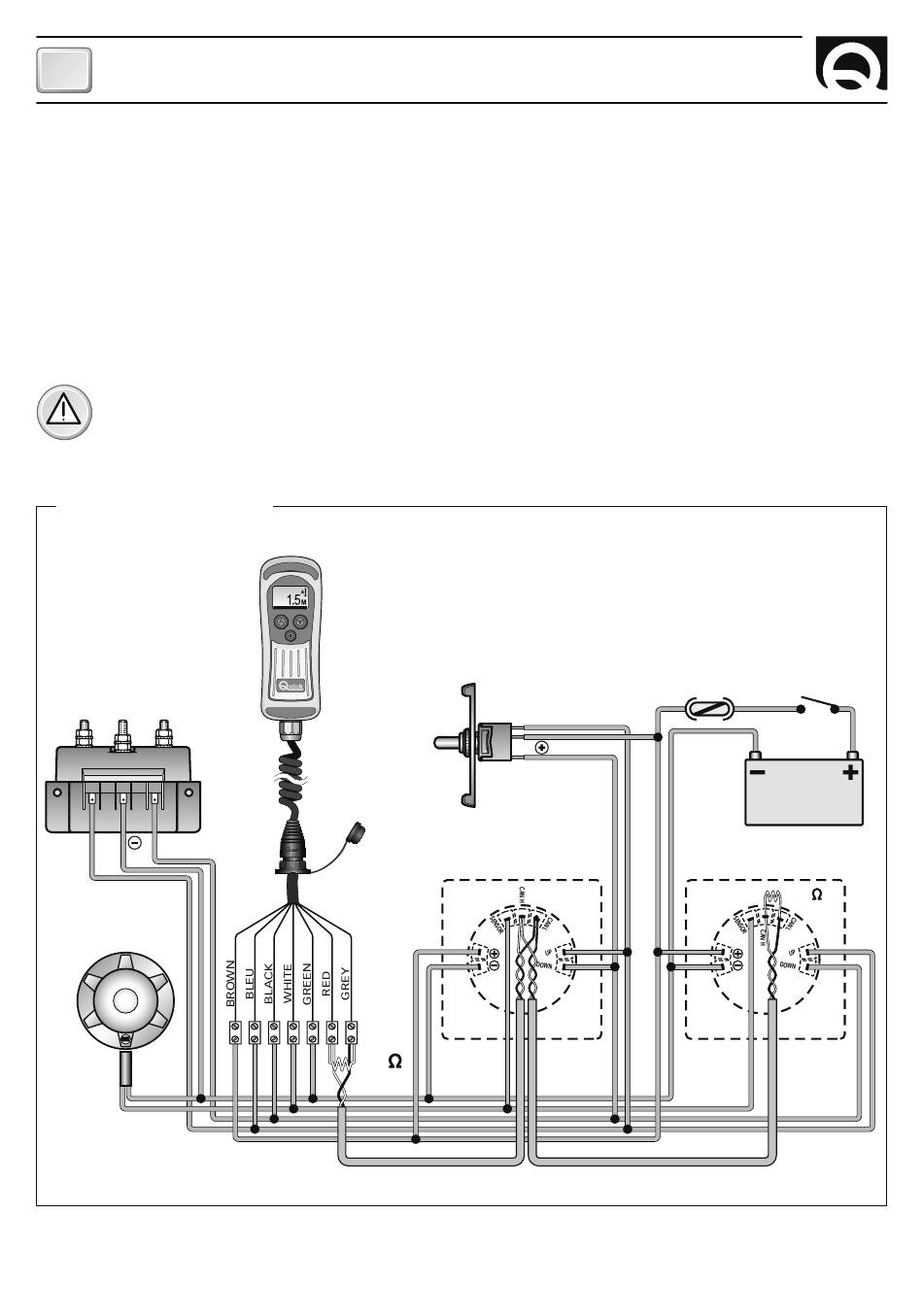

THE WIRING DIAGRAM
CONTACTOR UNIT/
REVERSING CONTACTOR UNIT
UP DOWN
GYPSY
SENSOR
10
UP ALARM
SPEED 000 M/M
AUXILIARY
COMMAND
150
UP
DOWN
CHC 1102 M
FUSE
4A FAST SWITCH
BATTERY
12/24 V
CHC 1102 M
150
CHC1102M GB F - REV005B
