GDS Corp C2 Protector Quick Start Manual

Quickstart Guide
C2 Protector Controller with Remote
GASMAX II Gas Monitor
C2 ANALOG INPUT BOARD
P/N #10-0221
1 2
TB2 TB1
+24VDC POWER OUT
(For Xmtrs.requiring
24VDC; see manual)

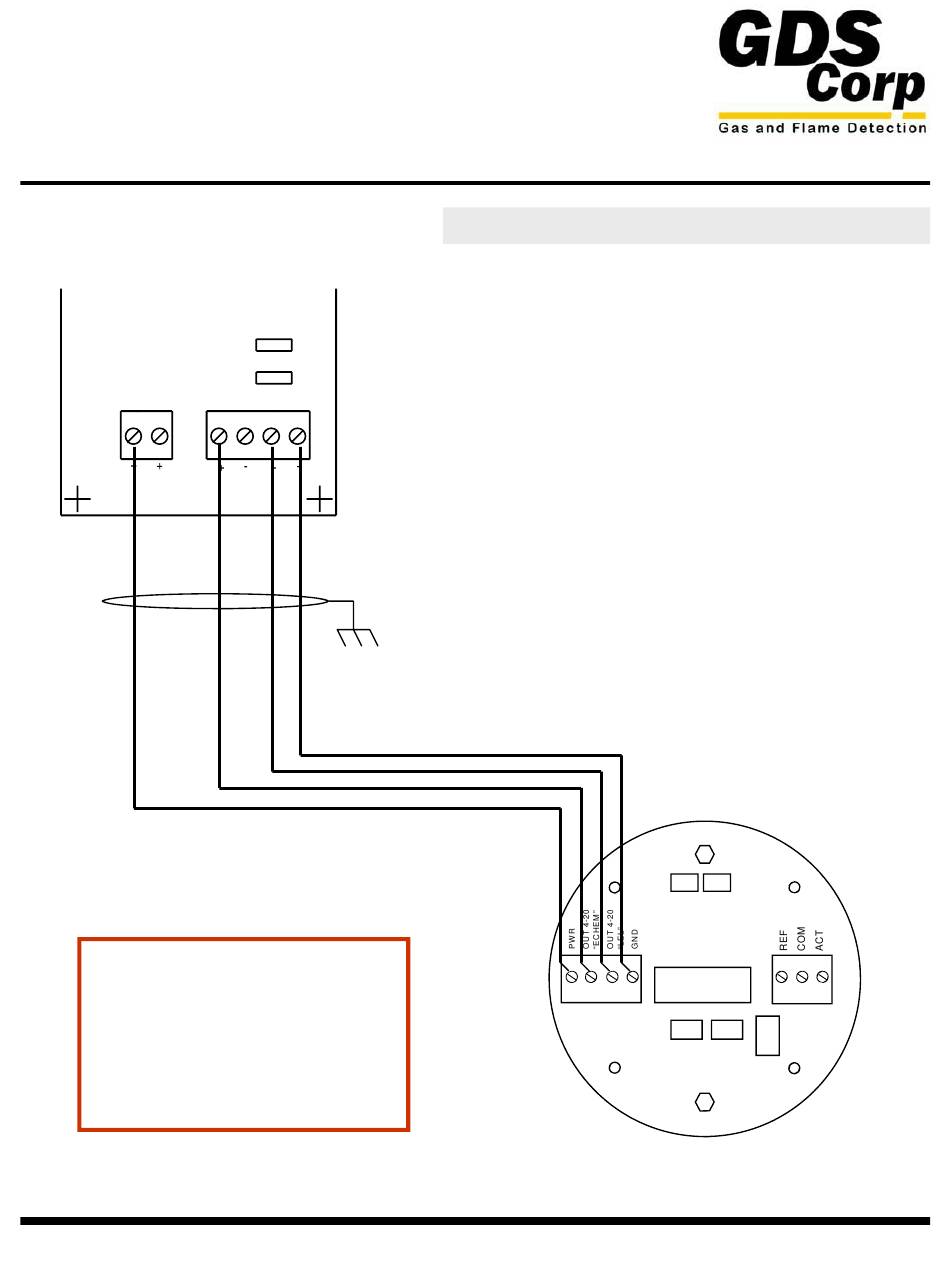

As shown, GASMAX II ECHEM 4-20mA output is connected to
C2 channel 2 and GASMAX II LEL 4-20mA output is connected
to C2 channel 1.
Important:
The GASMAX II output is
polarized. Take care in
connecting the +24VDC
source, 4-20mA output and
ground reference wiring.
AUTHORIZED DISTRIBUTOR - GasDetectorsUSA.com - Houston, Texas USA
R1
R2
1 2 3 4
4-20mA INPUTS
CH1
CH2
Ground Shield at C2
Controller (Recommended)
sales@GasDetectorsUSA.com
Wiring & Initial Setup Instructions
1) Install the C2 Protector controller and remote GASMAX
II monitor. As with all sensors, avoid locations subject to
excessive heat, directed water spray or dust. A splash
guard is recommended on all externally-mounted
sensors.
2) Connect the C2 input terminals to the remote GASMAX
II monitor as shown below. Select a wire gauge that is
sufficient to ensure that there is sufficient voltage
available at the GASMAX II.
3) Make sure the selected C2 channel is set to "ON" (see
the C2 manual, section 2.2.4d).
4) Calibrate the unit to verify proper operation.
GASMAX II POWER SUPPLY
ASSEMBLY BOARD
1 2 3
TB2
- 832-615-3588
P/N #10-0233
C2 C1
CATBEAD
I/O Power Supply
Assy 10-0233
4
S2
Ribbon to Display
TB1
C8 C7
S1
