Summary of Contents for Denver CAU-438MK2
-

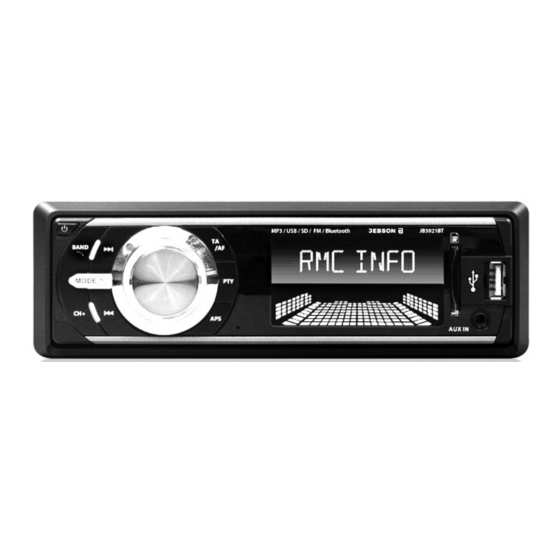

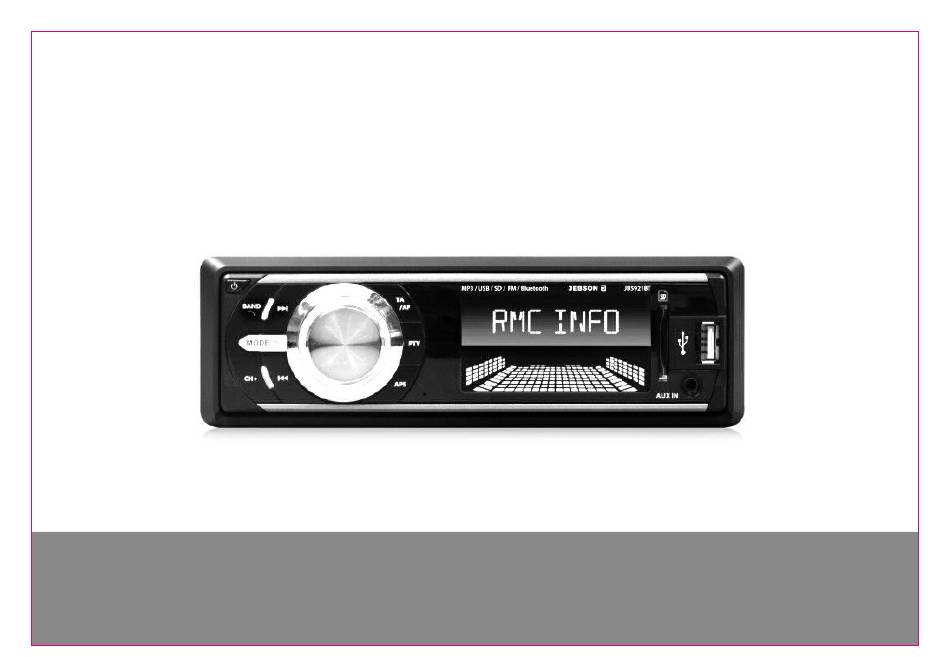

Page 1: Mp3 Player
MP3 PLAYER AUX IN, FM Radio, RDS Control, USB & SD Slots │ 4x50W INSTRUCTION MANUAL... - Page 3 Installation Precautions: 1. This unit should be installed by professional 2. personnels, if possible. 3. Please refer to the instruction manual for 4. electrical application, wrong 5. operation will cause damage to the unit. 6. Apply the power cord after all connections of the unit are set.
-
Page 4: Wiring Connections
Wiring Connections SPECIFICATIONS FM tuner Frequency range: ..........87.5-108 MHz Medium frequency: ........10.7 MHz +- 0.3% Signal/Noise ratio: ............50 dB Rear right speaker Radio sensitivity: ............10 dB Front right speaker Front left speaker USB/SD Rear left speaker Frequency range: ..........20 Hz-20 kHz 1. - Page 5 Front Panel Controls and Functions – DENVER (CAU–438) button: Press it once for power on/off. 2. MOD button: Press it to swift mode when power on among Radio,AUX IN & USB (if connected) 3. 1) Rotary Volume button, to adjust the volume.
- Page 6 * Hold the button first and then press it to adjust the functions below. Hold it to show LOUD on/of. Continue to press it for DSP mode, turn turn it to show POP, ROCK, CLASSIC, FLAT. press → DX, turn it for LOCAL. press →...
- Page 7 button: in radio mode. hold it for manual station search, press it for automatic station search. When in playing mode, press it for the last or next track, hold it for fast forward and fast backward. 7. BAND button: In playing mode, press it to select the playing mode of INT, RPT and RDM circularly. In radio mode, press it for band switch.
- Page 8 WARNINGS: SHOULD POWER WIRE ( YELLOW ONE ) BE GROUNDED OR WRONGLY CONNECTED, THE WHOLE UNIT WOULD BURN OUT OR FAIL TO TURN ON OR LIGHT OUT. SHOULD MEMORY WIRE ( RED ONE ) BE WRONGLY CONNECTED, THE WHOLE UNIT WOULD BURN OUT OR FAIL TO TURN ON OR LIGHT OUT.
