NovoCyte
Flow Cytometer
®
Multi-option Configuration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NovoCyte and is the answer not in the manual?

Questions and answers

Related Manuals for Acea NovoCyte

Summary of Contents for Acea NovoCyte

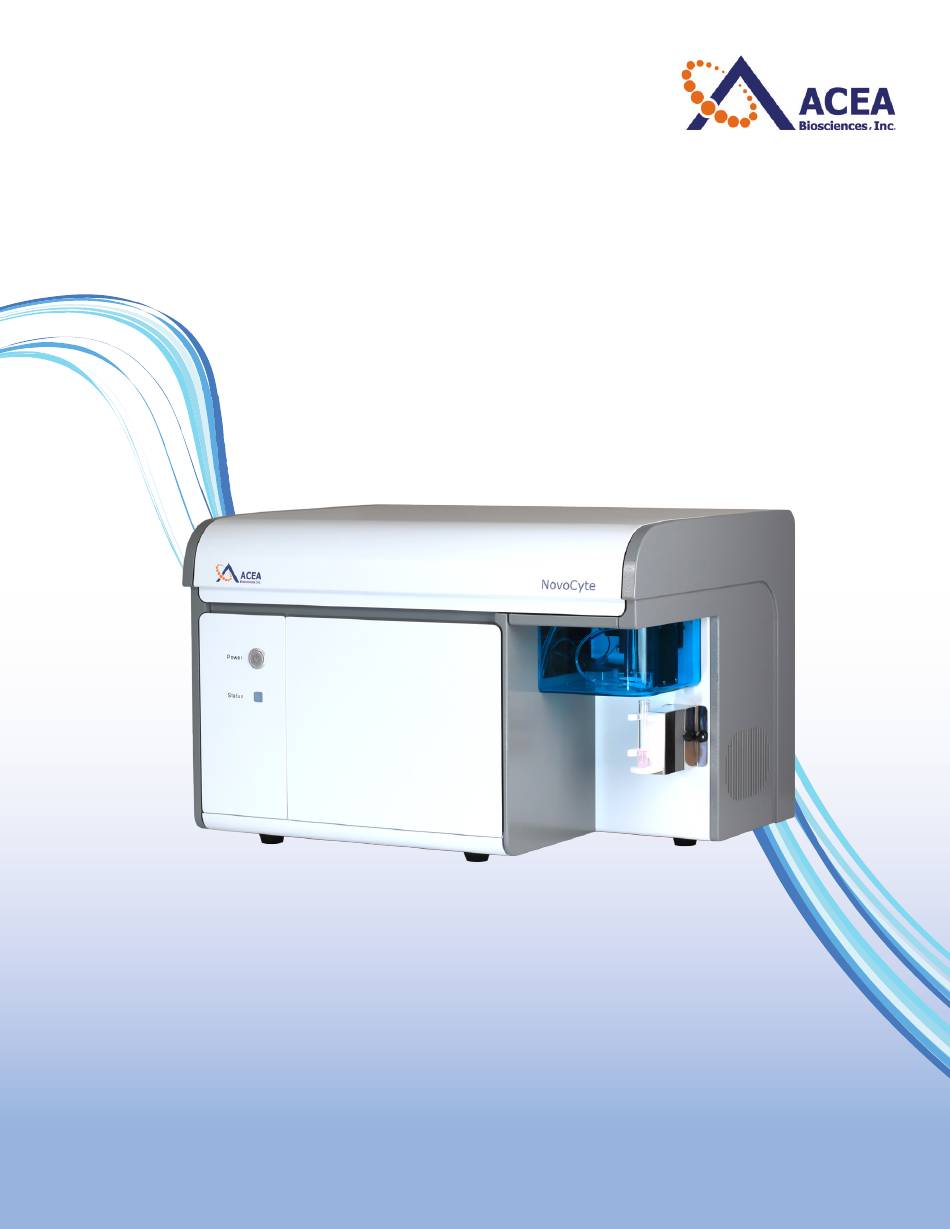

  • Page 1 NovoCyte Flow Cytometer ® Multi-option Configuration Guide...
  • Page 2 This guide provides an outline for the available configuration options for different models of NovoCyte flow cytometer. 3005 Model NovoCyte Violet/Blue/Red System with baseline configuration of 3 lasers (405 nm, 488 nm, 640 nm) and 6 PMTs with ≥3 red channels.
  • Page 3 Optical Configuration Option 1 Laser Detector BP Filter Dichroic Mirror 405 nm 488 nm 640 nm 445/45 472SP Pacific Blue 530/30 505LP AmCyan FITC 572/28 555LP Pacific Orange 660/20 650LP Qdot 655 PE-Cy5 695/40 685LP Qdot 705 PE-Cy5.5 Alexa Fluor 700 780/60 735LP Qdot 800...
  • Page 4 3000 Model NovoCyte Violet/Blue/Red System with baseline configuration of 3 lasers (405 nm, 488 nm, 640 nm) and 6 PMTs with 2 red channels. Default Optical Configuration Laser Detector BP Filter Dichroic Mirror 405 nm 488 nm 640 nm 445/45...
  • Page 5 2070R Model NovoCyte Blue/Red System with 2 lasers (488 nm, 640 nm) and 5 PMTs. Default Optical Configuration Laser Detector BP Filter Dichroic Mirror 488 nm 640 nm 530/30 505LP FITC 572/28 555LP 615/20 600LP PE-Texas Red 660/20 650LP PE-Cy5...
  • Page 6 PE-Cy5.5 Alexa Fluor 700 780/60 735LP PE-Cy7 APC-Cy7 8 FL Channels 2060R Model NovoCyte Blue/Red System with 2 lasers (488 nm, 640 nm) and 4 PMTs. Default Optical Configuration Laser Detector BP Filter Dichroic Mirror 488 nm 640 nm 530/30...
  • Page 7 Optical Configuration Option 1 Laser Detector BP Filter Dichroic Mirror 488 nm 640 nm 530/30 505LP FITC 572/28 555LP 660/20 650LP PE-Cy5 780/60 735LP PE-Cy7 APC-Cy7 6 FL Channels Optical Configuration Option 2 Laser Detector BP Filter Dichroic Mirror 488 nm 640 nm 530/30 505LP...
  • Page 8 PerCP-eFluor 710 Alexa Fluor 700 780/60 757LP PE-Cy7 APC-Cy7 7 FL Channels 2000R Model NovoCyte Blue/Red System with 2 lasers (488 nm, 640 nm) and 3 PMTs. Default Optical Configuration Laser Detector BP Filter Dichroic Mirror 488 nm 640 nm...
  • Page 9 530/30 505LP FITC 572/28 555LP 660/20 650LP PE-Cy5 4 FL Channels 2110V Model NovoCyte Violet/Blue System with 2 lasers (405 nm, 488 nm) and 6PMTs. Default Optical Configuration Laser Detector BP Filter Dichroic Mirror 405 nm 488 nm 445/45 472SP...
  • Page 10 Optical Configuration Option 1 Laser Detector BP Filter Dichroic Mirror 405 nm 488 nm 445/45 472SP Pacific Blue 530/30 505LP AmCyan FITC 572/28 555LP Pacific Orange 615/20 600LP Qdot 605 PE-Texas Red 695/40 650LP Qdot 705 PE-Cy5.5 780/60 735LP Qdot 800 PE-Cy7 11 FL channels Optical Configuration Option 2...
  • Page 11 2090V Model NovoCyte Violet/Blue System with 2 lasers (405 nm, 488 nm) and 5 PMTs. Default Optical Configuration Laser Detector BP Filter Dichroic Mirror 405 nm 488 nm 445/45 472SP Pacific Blue 530/30 505LP AmCyan FITC 572/28 555LP Pacific Orange...
  • Page 12 Optical Configuration Option 2 Laser Detector BP Filter Dichroic Mirror 405 nm 488 nm 445/45 472SP Pacific Blue 530/30 505LP AmCyan FITC 572/28 555LP Pacific Orange 660/20 650LP Qdot 655 PE-Cy5 780/60 735LP Qdot 800 PE-Cy7 9 FL Channels Optical Configuration Option 3 Laser Detector BP Filter...
  • Page 13 2070V Model NovoCyte Violet/Blue System with 2 lasers (405 nm, 488 nm) and 4 PMTs. Default Optical Configuration Laser Detector BP Filter Dichroic Mirror 405 nm 488 nm 445/45 472SP Pacific Blue 530/30 505LP AmCyan FITC 572/28 555LP Pacific Orange...
  • Page 14 1000 Model NovoCyte Blue System with 1 laser (488 nm) and 3 PMTs. Default Optical Configuration Laser Detector BP Filter Dichroic Mirror 488 nm 530/30 505LP FITC 572/28 555LP 675/30 650LP PerCP 3 FL Channels Optical Configuration Option 1 Laser...
  • Page 15 488 nm 530/30 505LP FITC 572/28 555LP 695/40 650LP PE-Cy5.5 3 FL Channels 1040 Model NovoCyte Blue System with 1 laser (488 nm) and 4 PMTs. Default Optical Configuration Laser Detector BP Filter Dichroic Mirror 488 nm 530/30 505LP FITC 572/28...
  • Page 16 Optical Configuration 1 Laser Detector BP Filter Dichroic Mirror 488 nm 530/30 505LP FITC 572/28 555LP 615/20 600LP PE-Texas Red 780/60 735LP PE-Cy7 4 FL Channels Optical Configuration 2 Laser Detector BP Filter Dichroic Mirror 488 nm 530/30 505LP FITC 572/28 555LP 660/20...
  • Page 17 FITC 572/28 555LP 695/40 650LP PE-Cy5.5 780/60 735LP PE-Cy7 4 FL Channels 1050 Model NovoCyte Blue System with 1 laser (488 nm) and 5 PMTs. Default Optical Configuration Laser Detector BP Filter Dichroic Mirror 488 nm 530/30 505LP FITC 572/28...
  • Page 18 Optical Configuration 1 Laser Detector BP Filter Dichroic Mirror 488 nm 530/30 505LP FITC 572/28 555LP 660/20 650LP PE-Cy5 695/40 680LP PE-Cy5.5 780/60 735LP PE-Cy7 5 FL Channels Optical Configuration 2 Laser Detector BP Filter Dichroic Mirror 488 nm 530/30 505LP FITC 572/28...
  • Page 19 695/40 650LP PE-Cy5.5 780/60 735LP PE-Cy7 5 FL Channels 3000RYB Model NovoCyte Red/Yellow/Blue System with 3 lasers (640 nm, 561 nm, 488 nm) and 6 PMTs. Default Optical Configuraton Laser Detector BP Filter Dichroic Mirror 488 nm 561 nm 640 nm...
  • Page 20 Optical Configuraton Option 1 Laser Detector BP Filter Dichroic Mirror 488 nm 561 nm 640 nm 530/30 FITC 586/20 572LP EYFP 615/20 600LP PE-Texas Red 660/20 650LP PerCP PE-Cy5 725/40 685LP PerCP-eFluor 710 PE-Alexa Fluor 700 Alexa Fluor 700 780/60 757LP PE-Cy7 APC-Cy7...
  • Page 21 3000VYB Model NovoCyte Violet/Yellow/Blue System with 3 lasers (405 nm, 561 nm, 488 nm) and 6 PMTs. Default Optical Configuraton Laser Detector BP Filter Dichroic Mirror 405 nm 561 nm 488 nm 445/45 Pacific Blue 530/30 495LP AmCyan FITC 586/20...
  • Page 22 Qdot 705 PE-Cy5.5 PerCP-Cy5.5 780/60 735LP Qdot 800 PE-Cy7 14 FL Channels 2100YB Model NovoCyte Yellow/Blue System with 2 lasers (561 nm, 488 nm) and 6 PMTs. Default Optical Configuraton Laser Detector BP Filter Dichroic Mirror 488 nm 561 nm 530/30...
  • Page 23 1000Y Model NovoCyte Yellow System with 1 laser (561 nm) and 5 PMTs. Default Optical Configuraton Laser Detector BP Filter Dichroic Mirror 561 nm 586/20 572LP 615/20 600LP PE-Texas Red 660/20 650LP PE-Cy5 695/40 685LP PE-Cy5.5 780/60 735LP PE-Cy7 5 FL Channels...
  • Page 24 ® ® ® Published by: NovoRinse , and NovoClean are trademarks of ACEA Biosciences, Inc., in the United States ® ® ACEA Biosciences, Inc. and some other countries. 6779 Mesa Ridge Road Ste. 100 All other company and product names might be trademarks of the respective companies with San Diego, CA 92121 which they are associated.
