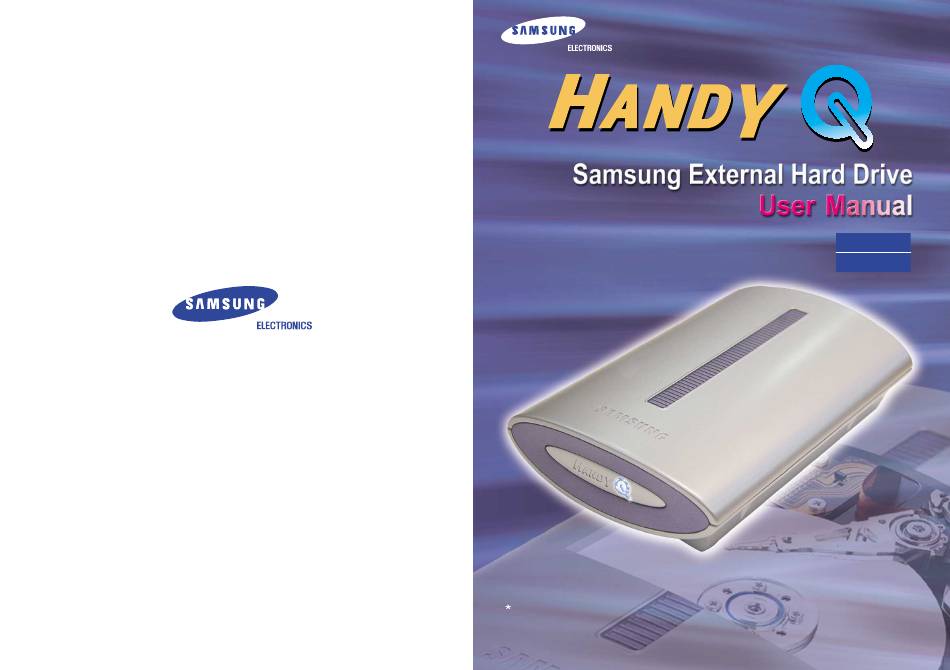

- Page 1 SEV04UP SEV08UP BF68-00152B Samsung is not responsible for loss of data. http://www.samsunghdd.co.kr 2002.05. Rev.00 Please back up data frequently.
-
Page 2: Table Of Contents
HANDY Q is the name of a new high-performance external hard drive Identifying the Parts and Checking the Package Kits by Samsung. It supports both the high-speed IEEE 1394 interface and System Requirements the high-speed USB 2.0 interface. Unlike the existing desktop hard... -
Page 3: Safety Precautions
Safety Precautions Identifying the Parts and Checking the Package Contents Carefully follow all instructions below to prevent loss of data or damage to your Handy Q drive. This product is precision equipment and, the HDD inside is extremely susceptible to shock and static electricity. Front Back Avoid high-temperature, high-humidity storage. -
Page 4: System Requirements
System Requirements The following are the minimum system requirements to install and run Handy Q. Windows PC Macintosh IEEE 1394 FireWire (IEEE 1394) CPU: Pentium or faster Power PC (iMAC DV, G3, or later) with a FireWire-mounted board RAM: Minimum 32MB Mac OS 8.6 or higher Windows 98SE, Windows ME, Windows 2000, Windows XP RAM: Minimum 32MB... -
Page 5: Installing The Hardware
Installing the Hardware For USB-port Installation For 1394-Port Installation Make sure your computer meets the system Make sure your computer meets the system requirements. requirements. See Pages 3 & 4 for System Requirements. See Pages 3 & 4 for System Requirements. Connect the AC adaptor to the power supply Connect the AC adaptor to the power supply slot on the back of Handy Q as shown in the... -
Page 6: Turning Handy Q Power On & Off
Turning Handy Q Power ON & OFF Turning Power OFF Windows - For USB - For IEEE 1394 Click the Eject Hardware/USB Storage Device icon( Click the Eject Hardware/IEEE 1394 Storage Device icon( on the right-hand corner of the taskbar, and the following small on the right-hand corner of the taskbar, and the following small message box appears above the taskbar. -
Page 7: Turning Power On
Installing the Software Before you start using Handy Q, you need to install a USB/1394 driver compatible with your system. Turning Power On Reconnecting If the power is off, turn Handy Q on before connecting the data cable to your computer. USB 2.0 / 1.1 - Windows 98 Second Edition (Initial Installation) Page 11... -
Page 8: Installing Usb 2.0/1.1. Driver
Installing the USB 2.0/1.1 Driver Windows 98 Second Edition (Initial Installation) Make sure Handy Q is connected to your computer, and turn the power on. A dialogue box as shown below appears and starts to look for a driver for the device. Click Next. When you see the dialogue box as shown below, click Next. -
Page 9: Windows Me/2000/Xp
Explorer window. Decompress HANDYQ.hqx and the files appear as shown below. You are ready to use Handy Q. Double-click the file named SAMSUNG MSC Driver. A device driver is installed and the following dialogue box appears. Click OK and an icon( )appears. -
Page 10: Mac Os X
Installing the IEEE 1394 Driver Mac OS X Windows 98SE/2000 Professional/ME/XP Turn your computer on and connect Handy Q to your computer Connect Handy Q to your computer and turn the power on. using the IEEE1394 port. An icon( )appears on the screen. When ‘Insert Disk’... -
Page 11: Initial Use Of Handy Q In Mac Os X
Initial Use of HANDY Q in Mac OS X When you first connect Handy Q to your computer, Click the Drive Setup button on the left-hand side of the window. a dialogue box appears as below. Click Initialize. Choose/dev/disk1. The Disk Utility window appears. Of the three menu tabs showing, choose “Partition”. -
Page 12: Macintosh
When formatting is completed, an icon( )appears When the following window appears, click Initialize. on the desktop. You are now ready to use Handy Q using the 1394 connection. Macintosh - OS 8.6 ~ 9.0 The formatting begins as below. Connect to the Macintosh Homepage to download the FireWire Enabler and install it on your computer. -
Page 13: Troubleshooting Guide
SEV04UP/DOM-40.0GB If the connection fails, try connecting to other USB ports. Memory SEV08UP/DOM-80.0GB Make sure you installed the USB driver provided by Samsung. Front Power On-Off/Read/Write Mode Indicator LED Lamp (Blue) Note : See “Installing the Software” for driver installation. - Page 14 Fcc information to the user This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
