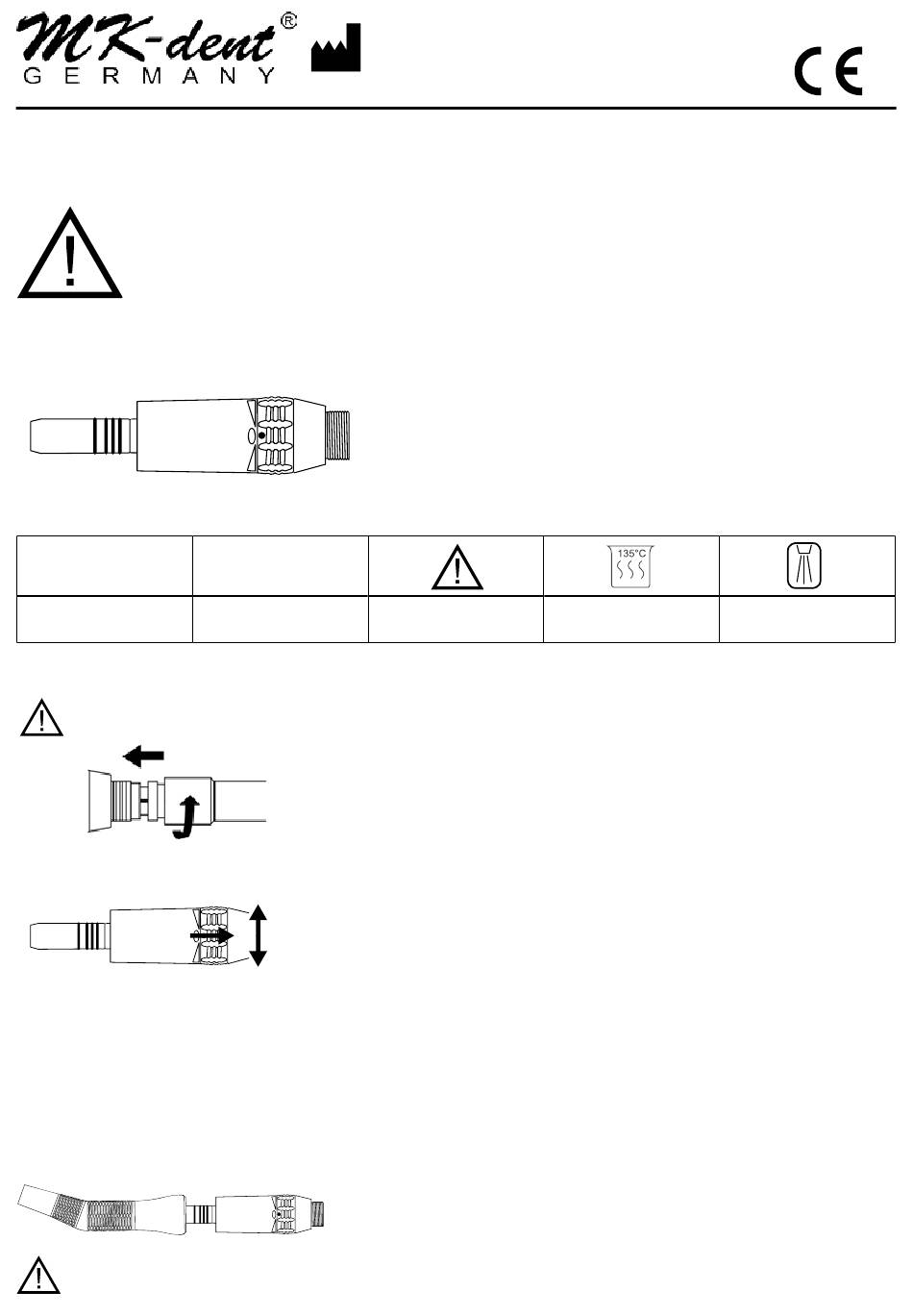

Instruction for use and hygiene
MK-dent Air Motor AM1116
Meaning of Symbols
REF
Item No.
Connection to the Treatment Unit
Before first use and after each use, sterilize the Air Motor. Always use dry, cleaned and decontaminated compressed
air. Premature wear from contaminated and humid compressed air can shorten the lifetime of the product.
Spray Regulation
Checking the Compressed Air with a Manometer
Install the manometer between tubing and Air Motor. The following values should be displayed:
Forced Air (F.A./ T.R.)
Return Air (R.A./ R.L.)
Water (W.)
Spray Air (S.A./ Spr.L.)
Connecting to the INTRAmatic-connection of Handpieces
In order to avoid damage to the driver, do not attach or release the Air Motor while the handpiece is in movement.
Important Details
The MK-dent Air Motor (AM1116)
- is only intended for dental treatment of patients.
- is according to relevant national regulations as a medical device.
These provisions indicate, that
- applicable accident prevention regulations and health and safety regulations must be observed.
- only a competent user is allowed to use the product according to this instruction.
- only faultless work equipment is to be used.
- any contamination from the product must be avoided.
- patients, users and third parties are to be protected from danger.
SN
Serial No.
=
<
=
=
Manufacturer:
MK-dent GmbH
Eichenweg 7b
D-22941 Bargteheide
Germany
Technical Facts
MK-dent Air Motor (AM1116)
Input speed: 5.000 - 15.000 rpm
Air input: 2,2 - 2,8 bar
Air use: up to 60Nl/ min.
Connection: 4-hole standard connection, INTRAmatic connector
Caution!
Place the connection of the turbing on the Air Motor and
turn the thread until stop.
Regulate the amount of water by turning the regulation ring
at the back of the Air Motor.
2,2 - 2,8 bar
1,1 bar
0,8 - 2,5 bar
1,0 - 4,0 bar
Place the handpiece on the Air Motor until it audibly locks in place.
Contact:
Phone:
04532 400490
Fax:
04532 4004910
email:
info@mk-dent.com
Internet: www.mk-dent.com
Sterilizable in an autoclave
up to max. 135°C/ 275°F
Rev: A/09_2015
0123
Suitable for spray- and
wipe disinfection
File: Manual_AM1116_EN.indd
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for mk-dent AM1116
Summary of Contents for mk-dent AM1116
- Page 1 Instruction for use and hygiene MK-dent Air Motor AM1116 Important Details The MK-dent Air Motor (AM1116) - is only intended for dental treatment of patients. - is according to relevant national regulations as a medical device. These provisions indicate, that - applicable accident prevention regulations and health and safety regulations must be observed.
- Page 2 Turn the control ring to change the speed and the rotation direction. Disinfektion The MK-dent Air Motor can be disinfected externally. Only use DGHM listed chemical disinfectant for spray and wipe disinfection. Don‘t place the Air Motor in disinfectant baths. Results are mulfunctions.
