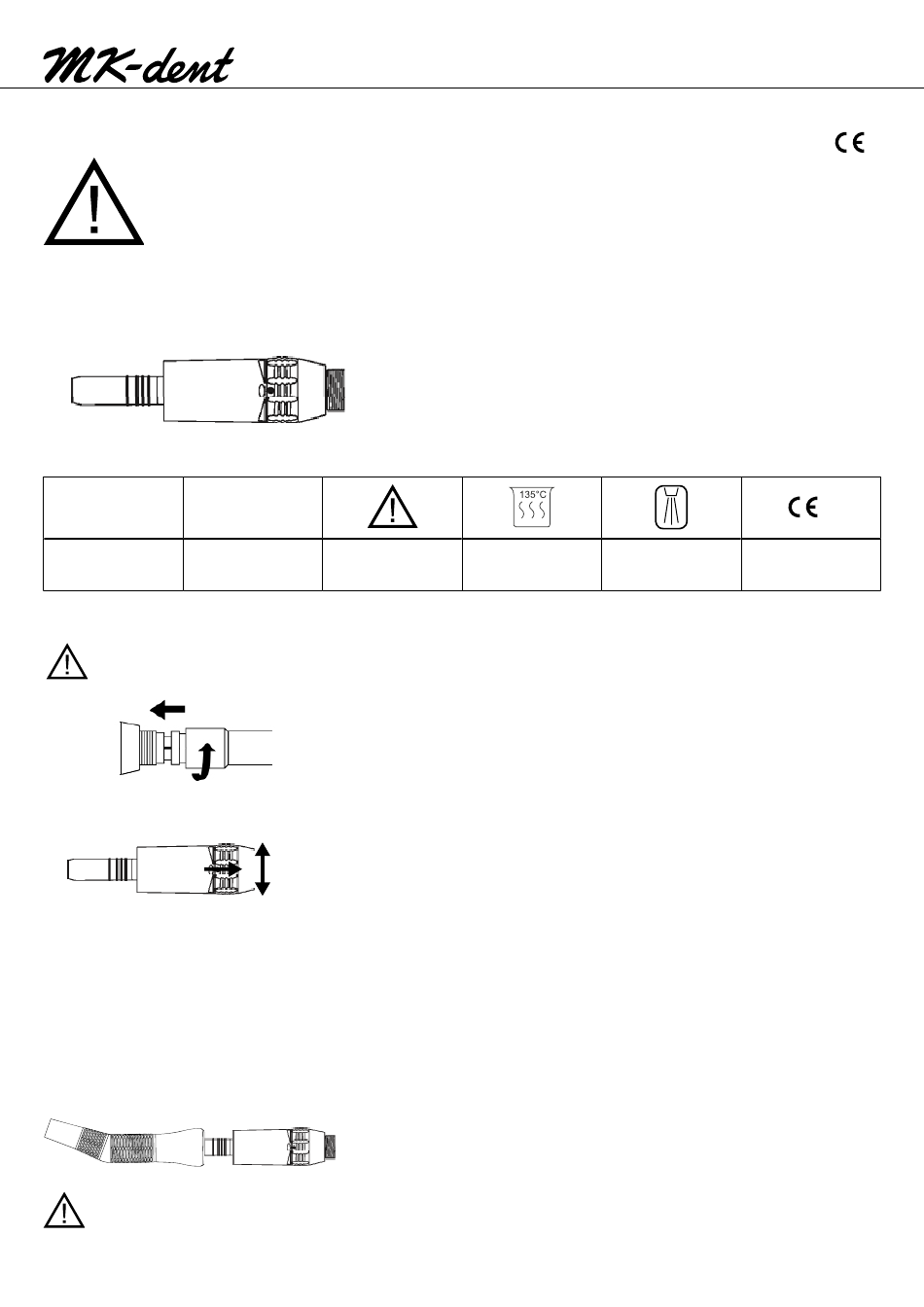

mk-dent AM1016 Instruction Manual

Important Details

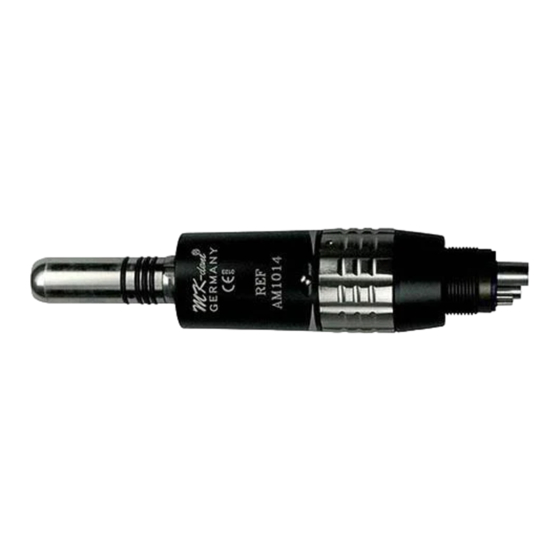

The MK-dent Air Motor (AM1014/ AM1016)
- is only intended for dental treatment of patients.
- is according to relevant national regulations as a medical device.
These provisions indicate, that
- applicable accident prevention regulations and health and safety regulations must be observed.
- only a competent user is allowed to use the product according to this instruction.
- only faultless work equipment is to be used.
- any contamination from the product must be avoided.
- patients, users and third parties are to be protected from danger.

Meaning of Symbols

REF
Item No.

Connection to the Treatment Unit

Before first use and after each use, sterilize the Air Motor. Always use dry, cleaned and decontaminated compressed
air. Premature wear from contaminated and humid compressed air can shorten the lifetime of the product.

Spray Regulation

Checking the Compressed Air with a Manometer

Install the manometer between tubing and Air Motor. The following values should be displayed:
Forced Air (F.A./ T.R.)
Return Air (R.A./ R.L.)
Water (W.)
Spray Air (S.A./ Spr.L.)

Connecting to the INTRAmatic-connection of Handpieces

In order to avoid damage to the driver, do not attach or release the Air Motor while the handpiece is in movement.

Technical Facts

MK-dent Air Motor (AM1014/ AM1016)
Input speed: 5.000 - 15.000 rpm
Air input: 2,2 - 2,8 bar
Air use: up to 60Nl/ min.
Connection: 4-hole standard connection, INTRAmatic connector
SN
Serial No. Caution!
Place the connection of the turbing on the Air Motor and
turn the thread until stop.
Regulate the amount of water by turning the regulation ring
at the back of the Air Motor.
= 2,2 - 2,8 bar
< 1,1 bar
= 0,8 - 2,5 bar
= 1,0 - 4,0 bar
Place the handpiece on the Air Motor until it audibly locks in place.
Sterilizable in an
Suitable for spray- and
autoclave up to max.
wipe disinfection
135°C/ 275°F
Instruction manual
AM1014, AM1016
0123
0123
CE-Sign
