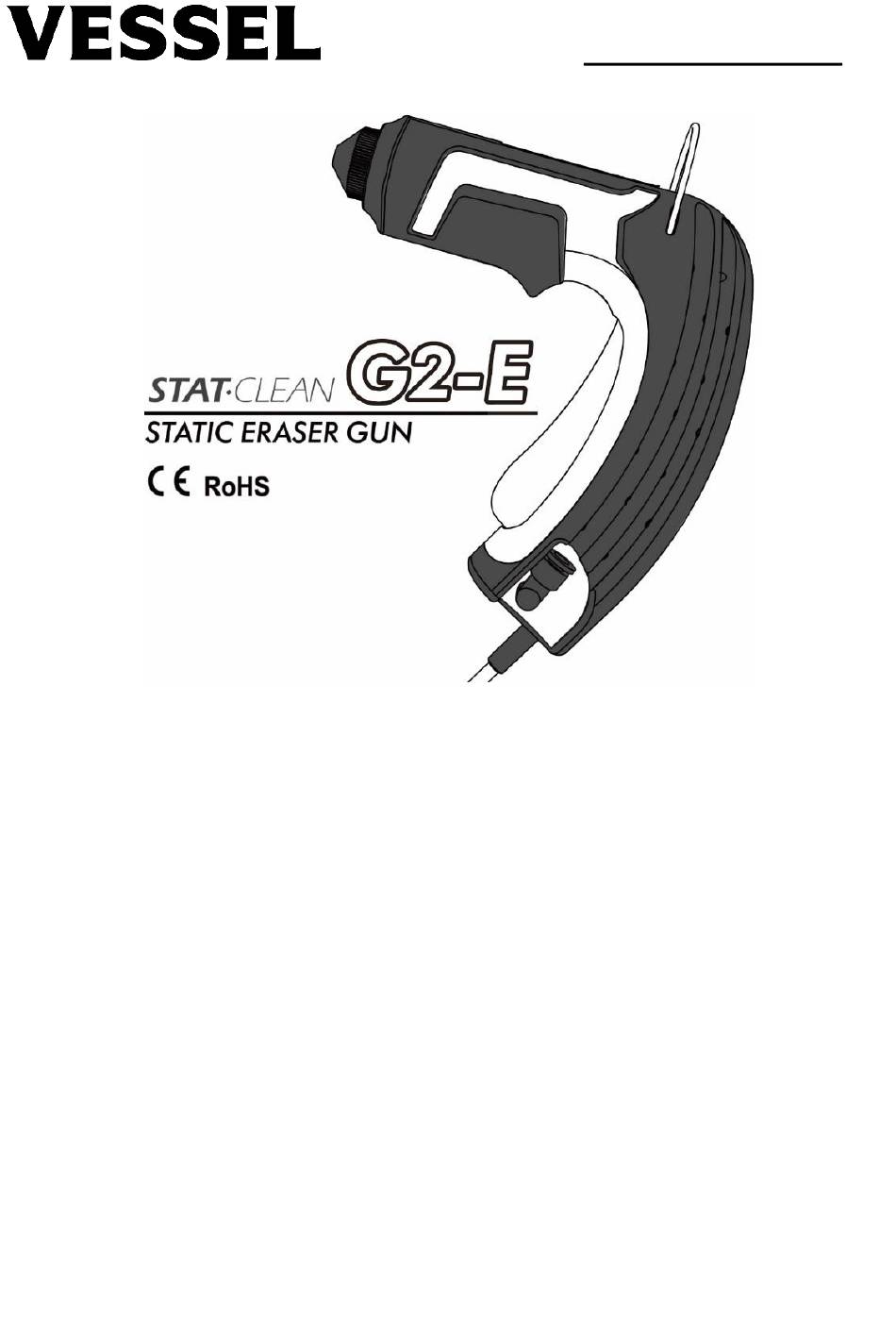

Thank you for purchasing our Stat Clean No.G2-E.
Read this instruction manual before use. Keep it in a safe handy place for future reference.
Table of Contents
■For Your Safety ························· P.2
■Product Features ······················· P.3
■Product Specifications ··············· P.4
■External View ···························· P.5
■Performance ····························· P.5
■Installation ······························· P.6
■Operation ································· P.8
■Maintenance ····························· P.9
■Troubleshooting ························ P.11
■Storage ···································· P.11
■Warranty ·································· P.12
Instruction Manual
Advertisement
Table of Contents
Related Manuals for Vessel STAT CLEAN G2-E
Summary of Contents for Vessel STAT CLEAN G2-E
-
Page 1: Table Of Contents
Instruction Manual Thank you for purchasing our Stat Clean No.G2-E. Read this instruction manual before use. Keep it in a safe handy place for future reference. Table of Contents ■For Your Safety ························· P.2 ■Product Features ······················· P.3 ■Product Specifications ··············· P.4 ■External View ····························... -
Page 2: For Your Safety
●Safety precautions in this instruction manual are categorized into two types by the degree of danger associated with each on the followings. Based on danger analyses performed by Vessel, all precautions in this instruction manual are of the CAUTION level. -
Page 3: Product Features
■Product Features Special Features * Corona Discharge AC type AC Corona discharge method has an advantage of stable ion balance, not much influenced by contamination on the electrode needle. High Frequency Voltage Transformer produces ions in its high performance with less production loss due to the ion recombination. -
Page 4: Product Specifications
Cable length ：about 170g Weight *The measurement values were obtained on the VESSEL measurement environment and conditions, so error could be induced depending on the operation environment. Replaceable Parts : Electrode Needle GN-H Options : Tube-Fitting Nozzle G-7THN / AC Adapter AD24-ITC /... -

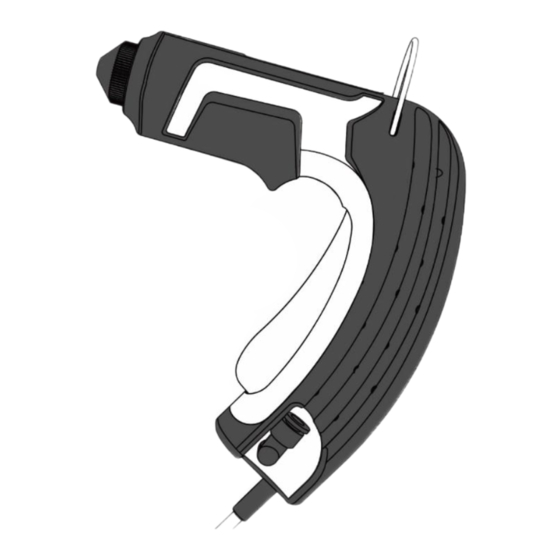

Page 5: External View
External View / Performance No.G2-E Static Elimination Performance Air Pressure (MPa) Air Volume (L/min) +1000V ↓ +100V (min) Decay -1000V ↓ time -100V (min) Ion Balance (V) -0.6 ※Measured at 150mm from the target object. -
Page 6: Installation
Installation CAUTIONS IN INSTALLATION Use only the included power supply adapter. Use of other adapters may results REMEMBER in fire, electric shock and static electricity removal failure. Use an air hose of sufficient withstanding pressure performance. REMEMBER Air hoses of insufficient withstanding pressure may rupture and leak air. Install the G2-E in the following environment. - Page 7 Installation Points to be checked before use 1. Before use, check the G2-E, tube and power adapter for trouble. 2. Make sure that there is no damage, loose screws, disconnected hosing, loose connectors, or other defects. 3. Do not pull strongly the air hose or power cable when using. 4.
-
Page 8: Operation
Operation Stopper Air Blow Point Part which ejects air. According to the application, 1.Nozzle you can install the Tube-Fitting Nozzle (option) instead. 2.Trigger Pull the trigger for air blow and static electricity removal. 3.LED for operation and LED lights during static electricity removal after pulling the trigger. high voltage alarm H.V. -
Page 9: Maintenance
Operation CAUTIONS IN OPERATION Do not use the G2-E for anything other than removal of static electricity or dust. PROHIBITED If noticing anything strange, stop using the G2-E immediately. REMEMBER Supply clean dry air. REMEMBER Mount the nozzle after cleaning the electrode needle for maintenance. If the G2-E is used without the nozzle, the electrode needle may fly off because of REMEMBER the air pressure. - Page 10 Maintenance 1. How to Clean the Gun Casing Wipe off the dirt on the gun with soft and dried cloth. Use the vacuum cleaner to remove the dust stained around body. Do not use solvent such as alcohol or thinner, or detergent on the casing. 2.
-
Page 11: Troubleshooting
Troubleshooting CAUTIONS IN TROUBLESHOOTING Do not use the G2-E in the following situations. They can result in fire or electric shock. *When the power cable is damaged or hot PROHIBITED *When the G2-E has been damaged because of dropping or shock. *When the plug of AC adaptor does not fit the electric outlet. -
Page 12: Warranty
LIMITED WARRANTY: VESSEL expressly warrants that for a period of one (1) year from the date of purchase, VESSEL static erasers will be free of defects in material (parts) and workmanship (labour). Within the warranty period, Defects occurring will be repaired or products will be replaced at VESSEL's option and expense, if VESSEL receives notice during the warranty period. - Page 13 Advice to use the G2-E for a long time In the case of using the G2-E with the hose and the cable dropping down, please band them with the provided “self-fusion butyl rubber tape”, by bowing the power cable as shown in the photograph below. It can prevent the air hose and the power cable from scattering, and it can also improve durability of the power cable.
