Summary of Contents for iPazzPort KP-810-61

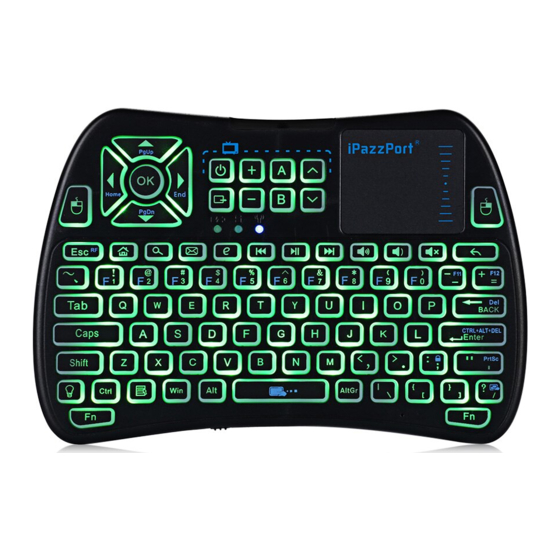

- Page 1 User manual Mini RF/IR keyboard KP-810-61 (Backlit version) www.iPazzPort.com Email: support@iPazzPort.com Video tutorial on YouTube: iPazzPortfan...
- Page 2 QWERTY layout Home Play/Pause Searching Next Track Turn on/off backlit or E-mail Volume Up change the backlit color Android Browser Back Volume Down Lock/Unlock the Previous Mute keyboard 8 exclusive buttons of To lock/unlock the IR learning function function of the touchpad...
- Page 3 1 Basic information: 1.1 Application: 1.4 Specifications: - Mini RF/IR backlit keyboard for home entertainments, - Wireless connection education, training, meeting, speech and projector - Max Distance:10 m Windows,Mac, Android/Google, Linux, - Dimensions: 142.5X97X19.8mm Computer,Smart TV, Raspberry Pi, TV box,set-top box - Weight: 121g Working voltage: 3.3V...
- Page 4 2 .How to use 2.1.Start up 2)Plug USB dongle into any USB port of your device (Raspberry Pi/Smart TV /PC) USB dongle Power Switch 1)Open the battery lid and, 3)Turn the unit on by switching the power switch to the position “on”(the LED would be flashing then go out ) take the USB dongle out 4 The connection is successful (slide your finger on touchpad you can see the cursor moving on the screen )
- Page 5 wireless connection: Commonly, the keyboard and the USB receiver is paired in factor y, you just plug the USB dongle in the USB port of your PC, TV box. Please follow the steps below to re-pair the keyboard with the USB within 30 seconds, if there is no reaction on the monitor when you operate the keyboard though this receiver has been recognized by the PC.
- Page 6 3 .IR learning These eight buttons in two rows all have access to IR learning function. 1) On keyboard remote， hold down the button “ ” until the LED lights solid. 2) Put together your keyboard remote and the source IR remote, head to head, approximately 1 inch apart. 3) Press the button on keyboard "+"...
- Page 7 4.Multi-touch function ： the touchpad supports various gesture as described below: One finger: (1)Slide to move the cursor; (2)Keep pressing " FN" and slide freely to scroll up/down the screen (to change the entire touchpad to a scrollbar); (3)Single click to act as the left mouse; (4)Double click to open a file or application;...
- Page 8 (7) The keyboard have an automatic sleep and wake mode to prolong the standby time, you may click any key to wake it up before you slide or click on the touchpad. 3) Still have problem? Please contact us on social platform iPazzPortfans, or email us at support@ipazzport.com...
- Page 9 3).Q:What about the backlit? A:(1)Just one click on the button " " to turn on the default red backlit. (2)Another click for green backlit and the third for blue mode. ( 3)And the forth click will turn off the backlit mode. Note: Under backlit mode, the backlit will go off in the period of inacitivity.
