Protecta AC350A User Instruction Manual

User Instruction Manual Cabloc Detachable Cable Sleeve
This manual is intended to be used as part of an employee training program as recommended by OSHA.
WARNING: These instructions must be provided to the user and installer of this equipment. The user and installer of
this equipment must read and understand these instructions before use or installation. Follow the manufacturer's
instructions for other safety equipment used with this system. Follow these instructions for proper use,
inspection, and maintenance of this equipment. This product is intended to be used as a part of a complete Cabloc
ladder safety system. Alterations, substitutions, or misuse of this equipment, or failure to follow instructions,
may result in serious injury or death.
IMPORTANT: If you have questions on the installation, use, maintenance, or suitability of this equipment for
your application, contact PROTECTA.
IMPORTANT: Before using this equipment, record the product identifi cation information from the installation and
service label in the "Inspection and Maintenance Log" at the back of this manual.
Cable
Installation
Slot
Sleeve
Body
7 x 19 Constructed
Steel Cable
(Carrier Cable)
1.0 APPLICATIONS
1.1 PURPOSE: The Cabloc detachable cable sleeve is designed to arrest the fall of personnel while climbing a
fi xed ladder. The detachable cable sleeve is not intended to be used for material handling.
NOTE: The installer and user must ensure the ladder meets all applicable local, state, and federal
standards, including ANSI A14.3.
1.2 LIMITATIONS: Cabloc detachable cable sleeves must be used with a PROTECTA approved ladder safety
system. Use only the Cabloc Sleeve model specifi ed in Figure 1 for you applicable cable diameter and safety
standard(s). The Cabloc cable sleeve must be directly connected to an approved full body harness with the
carabiner supplied with the sleeve (see Figure 1). Do not use connection devices other than the supplied
carabiner. Do not add additional connectors or lanyards between the user and the cable sleeve.
NOTE: ANSI A14.3 and OSHA 1926.1053 states that the length of connection between the carrier cable
and attachment point on the full body harness must not exceed 9 in. (0.2 m) in Canada per CSA Z 259.2.1-98.
1.3 Refer to applicable local, state, and federal (OSHA) requirements governing this equipment for more
information on ladder safety systems and associated components, including OSHA 1910.27.
Form No: 5902216 Rev: F
Instructions for the following series products:

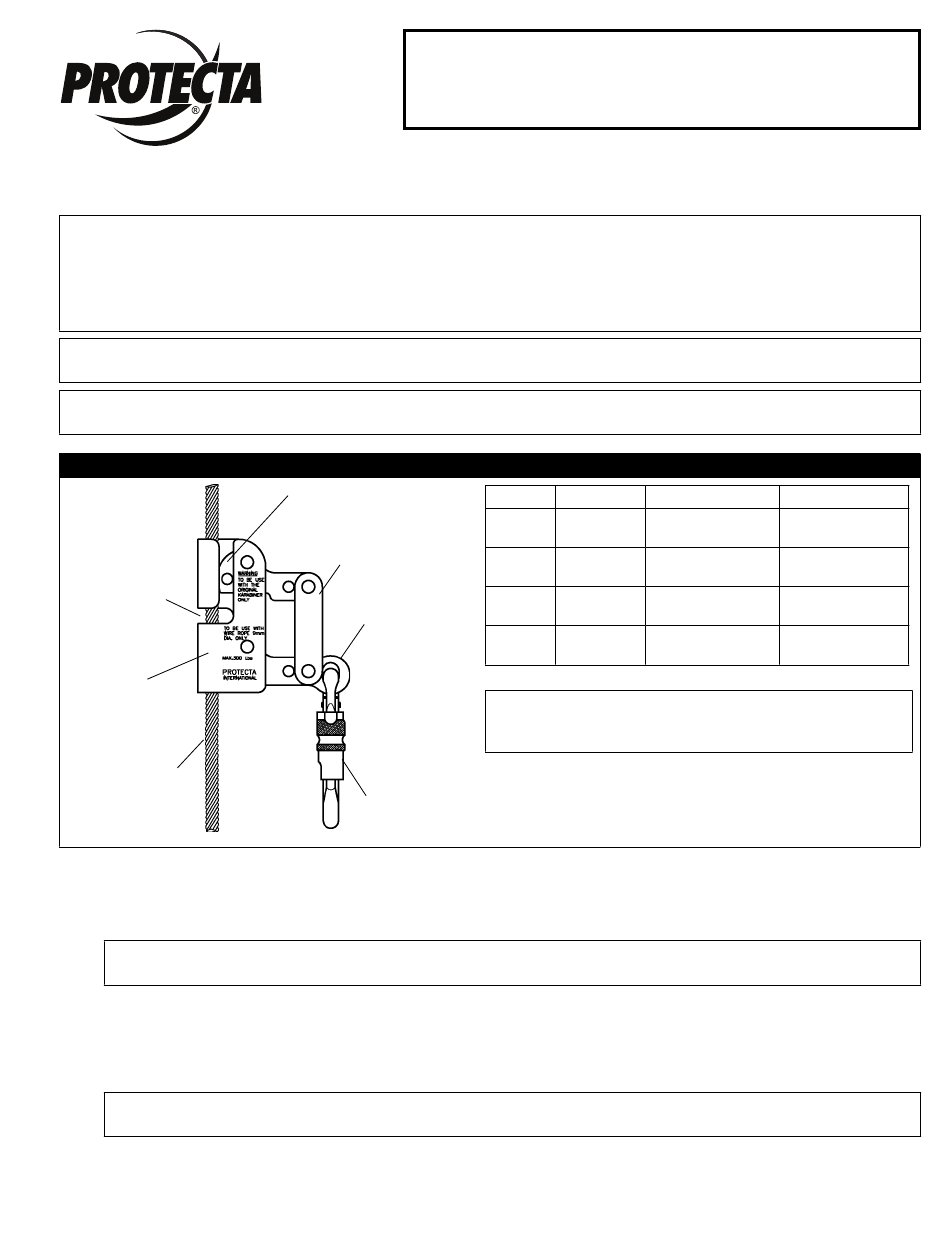

Figure 1 - Cabloc Detachable Cable Sleeves
Cable Shoe
Brake Lever
Attachment
Point
Carabiner
LADDER CLIMBING CABLE SLEEVE
Model Numbers: See Figure 1
Model Cable Dia. Safety Standard
5/16"
AC350A
(8 mm)
3/8 "
AC351A
(9.5 mm)
5/16"
AC350C CSA Z259.2.1
(8 mm)
3/8 "
AC351C CSA Z259.2.1
(9.5 mm)
7 X 19 CABLE ONLY: Cabloc Cable Sleeves shall only
be used on 7 x 19 constructed cable of the diameters
specifi ed above.
Anti-Inversion
ANSI A14.3
ANSI A14.3
√
√
© Copyright 2012, Capital Safety
