2.5.1 Forward and Reverse Path Coaxial Cable Connections
Use the following procedure to install the forward and reverse path coaxial cables that link the
RIU to the DHU:
1. Locate the forward and reverse path coaxial cables that were routed to the RIU from the
DHU.
Note: The procedures for routing the reverse and forward path coaxial cables from the
DHU to the RIU and for connecting the cables to the DHU are covered in the Digivance
ICS System Installation and Operation Manual (See Related Publications section) which
is provided with the DHU.
2. Terminate each cable with a type N male connector following the connector supplier's
recommendations.
3. Connect the forward path cable to the FORWARD OUT connector on the RIU front
panel as shown in Figure 9.
TYPE-N MALE CONNECTOR
4. Connect the reverse path cable to the REVERSE IN connector on the RIU front panel as
shown in Figure 9.
5. Dress and secure cables at the RIU.
2.5.2 Antenna Coaxial Cable Connection
Use the following procedure to install the coaxial cable that links the RIU to the donor
antenna:
Note: To comply with Maximum Permissible Exposure (MPE) requirements, the maximum
composite output from the antenna cannot exceed 1000 watts EIRP and the antenna must be
permanently installed in a fixed location that provides at least 6 meters (20 feet) of separation
from all persons.
Page 12
© 2002, ADC Telecommunications, Inc.

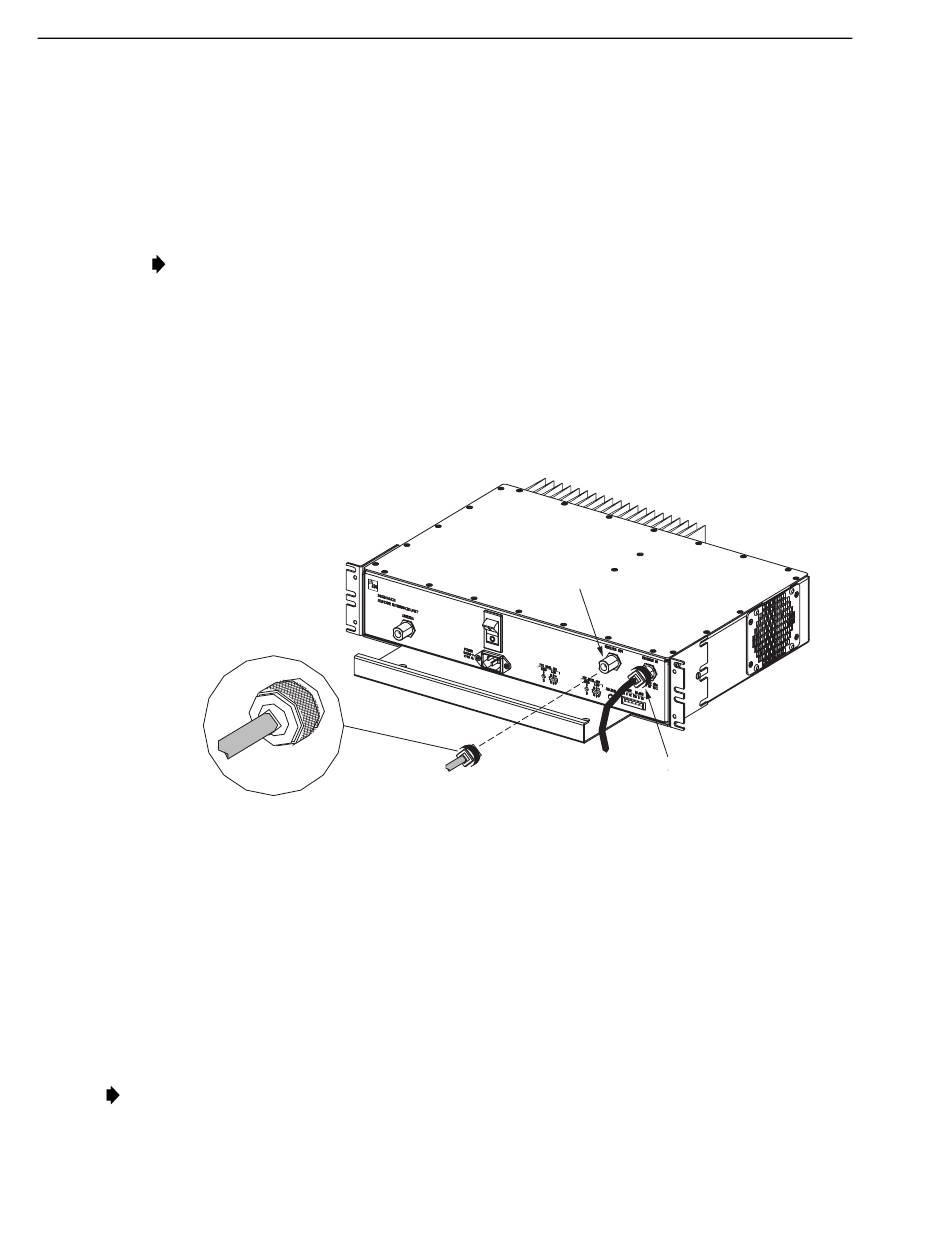

Figure 9. FORWARD OUT and REVERSE IN Coaxial Cable Connections
FORWARD OUT
CONNECTOR
REVERSE IN
CONNECTOR
16652-A
