6. Using the RIU as a template, mark the location of the mounting holes on the mounting
surface.
Note: The mounting holes in the RIU cable management tray are spaced 11-21/32 inches
(296 mm) center to center.
7. Set the RIU aside and then drill appropriately sized holes in the mounting surface for the
fasteners.
8. If using only the mounting brackets to secure the RIU to the mounting surface, skip step
9 and proceed to step 10. If using the cable management tray mounting holes to secure
the RIU to the mounting surface, proceed to step 9.
9. Partially install the fasteners for the cable management tray mounting holes. Leave the
head of each fastener protruding about 1/4 inch (6 mm) from the mounting surface.
10. Hang the RIU from the fasteners installed in step 9 or position the RIU for installation if
using only the mounting brackets.
11. Install and securely tighten all fasteners.
Page 10
© 2002, ADC Telecommunications, Inc.

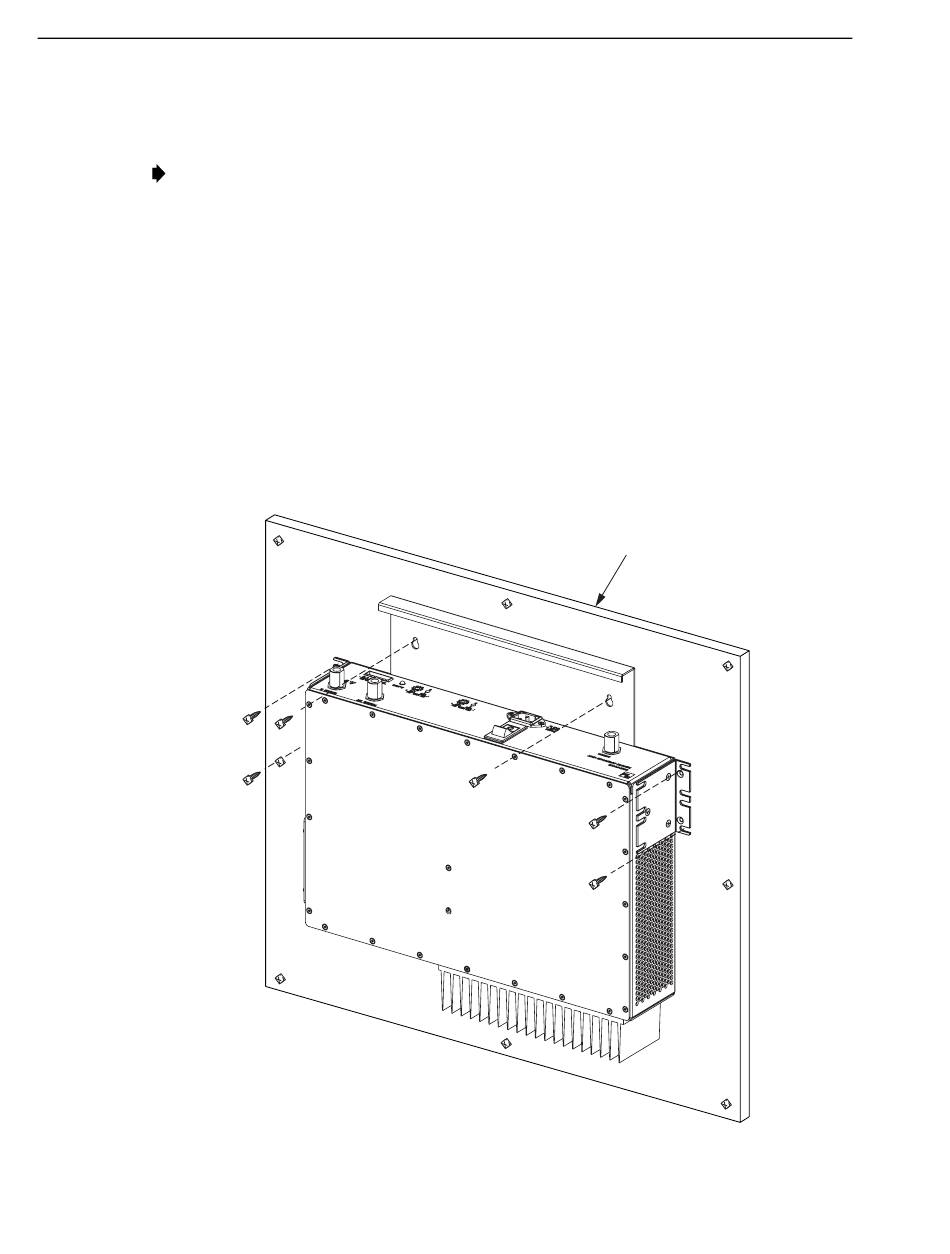

Figure 7. RIU Wall-Mount Installation
BACKER BOARD SUCH
AS 3/4-INCH PLYWOOD
16486-B
