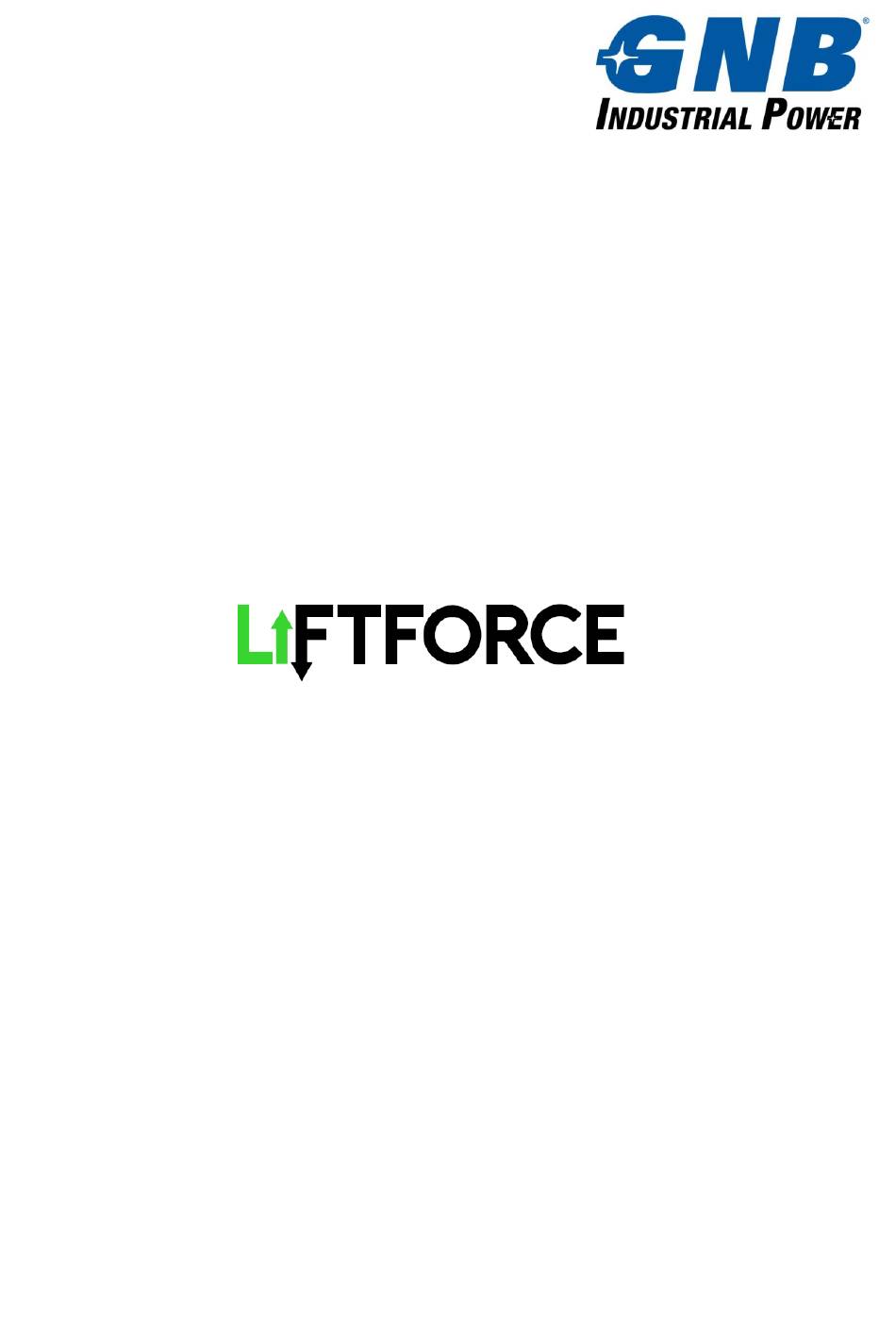

- Page 1 GNB LiFTFORCE Material Handling Battery Operating Instructions LiFTFORCE Material Handling Battery Operating Instructions 08/01/18 Page 1 of 9...
-
Page 2: Table Of Contents
Over Discharge Protection ......................... 7 5.3.1 Discharge mode: ........................7 5.3.2 Charge mode: ..........................7 MAINTENANCE ............................8 STORAGE ..............................8 BUZZER SUMMARY ............................ 8 SYSTEM LED SUMMARY ..........................8 LiFTFORCE Material Handling Battery Operating Instructions 08/01/18 Page 2 of 9... -
Page 3: Warnings And General Information
Keep the battery dry RECYCLE Battery may require recycling in accordance with local laws Contact Exide or regulatory authorities for further information DO NOT include battery with Lead Acid battery recycling LiFTFORCE Material Handling Battery Operating Instructions 08/01/18 Page 3 of 9... -
Page 4: General Data
See battery label SYSTEM OVERVIEW The LiFTFORCE Lithium battery system is an enclosed tray containing GNB Lithium Battery Modules in various capacities. The Battery Management System (BMS) and contactors are built into the tray and the system is equipped with a Curtis Engage II gauge or Opus A3 display, which shows battery parameters during charge and discharge. - Page 5 The Curtis display will show both a bar and text value of the State of Charge (SOC) of the battery from 100 to 0 %. The LED on the right of the gauge will flash from 20% to 15% SOC and will be permanently on below LiFTFORCE Material Handling Battery Operating Instructions 08/01/18 Page 5 of 9...
-
Page 6: Operating Instructions
The Opus display can be seen in Figure 4, 5, 6 and 7 below. The Opus will only be fitted to systems where GNB or the customer requires data logging to assess the duty cycle of their operation. This allows precise sizing of the battery pack for the most cost effective solution. -
Page 7: Balancing Charging
Power to the vehicle is automatically disabled while the battery is charging and therefore does not require an ON/OFF switch. 5.1.2 Charging Only GNB HF Approved Lithium chargers are to be used with the system. Standard Lead Acid chargers are not compatible and may damage the Lithium system. For maximum charge voltage see battery label. -
Page 8: Maintenance
