Cisco Expressway CE1200 Appliance Installation Guide
Front Panel Layout
Front Panel Layout
This section details the front panel layout, LEDs and ports.

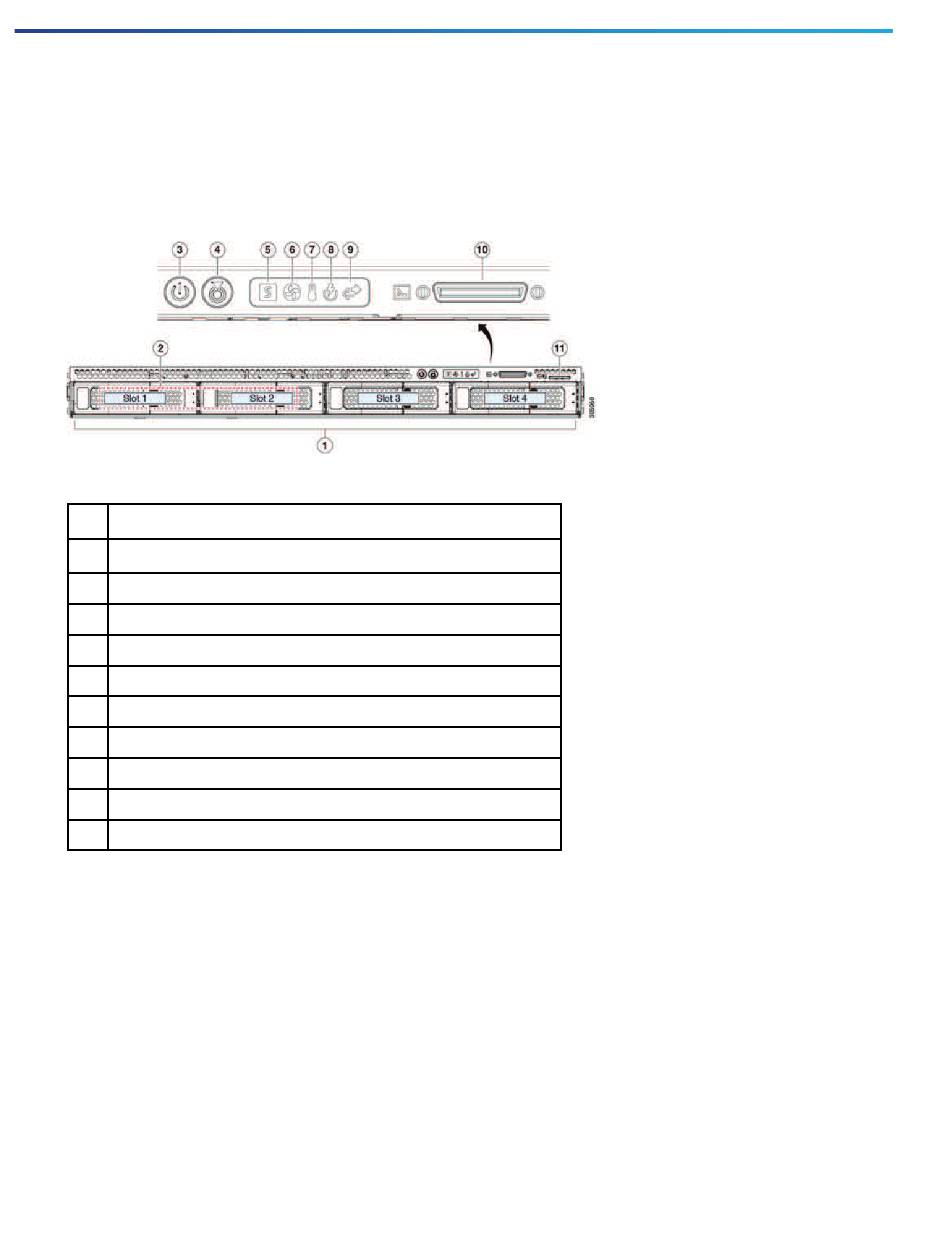

Figure 1 Front view of the Cisco Expressway
Table 3 Front panel LEDs and components
1
HD drives (use Slot 1 and Slot 2 only)
Activity/fault LED for HD drives
2
3
Power button/power status LED
4
Identification button LED
5
System status LED
6
Fan status LED
7
Temperature status LED
8
Power supply status LED
9
Network link activity LED
10
KVM connector (for USB/VGA connection)
11
Pullout tab for UCS serial number, MAC addresses
8
