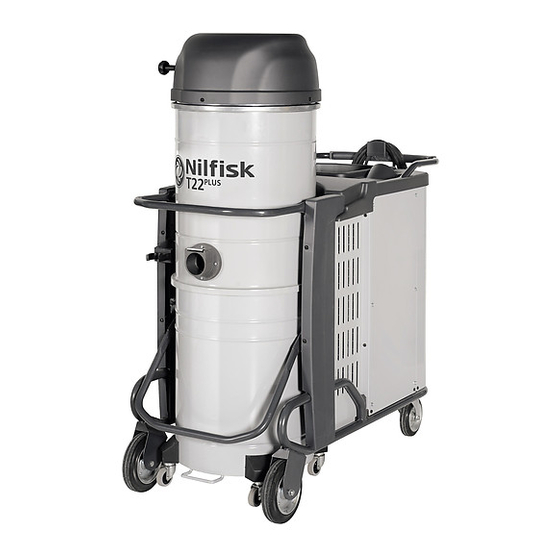

- Page 1 T22PLUS - T40PLUS - T40W PLUS MANUALE DI ISTRUZIONI Instructions for use INSTRUCTIONS MANUAL MANUEL D’INSTRUCTIONS BETRIEBSANLEITUNG MANUAL DE INSTRUCCIONES Italian GB English C380-I-GB-F-D-E French EDITION 03/2017 Deutsch Spanish...
-
Page 2: Table Of Contents
T22 Plus - T40 Plus - T40W Plus Translation of the original instructions Table of contents Instructions for use ......................2 Operator’s safety ..........................2 General information for using the vacuum cleaner ................2 Proper uses ............................. 2 Improper Use ........................... 2 Versions and variations ........................ -
Page 3: Instructions For Use
T22 Plus - T40 Plus - T40W Plus Instructions for use Read the operating instructions and comply with the important safety recommendations identified by the word WARNING! Operator’s safety Proper uses This vacuum cleaner is suitable for commercial use, in hotels,... -
Page 4: Versions And Variations
T22 Plus - T40 Plus - T40W Plus Versions and variations Dust emissions in the environment Indicative values of performance: Versions ■ normal version (not suitable for vacuuming hazardous dust): retains at least 99% of the vacuumed particles WARNING! (see EN60335-2-69, Annexe AA);... -
Page 5: Vacuum Cleaner Description
T22 Plus - T40 Plus - T40W Plus Vacuum cleaner description Parts and labels This vacuum cleaner creates a strong air flow which is drawn in through the inlet (5, Fig. 1) and blows out through the Figure 1 exhaust (6, Fig. 1). After the hose and tools have been fitted, Identification plate which includes: make sure that the motor turns correctly. -
Page 6: Packing And Unpacking
T22 Plus - T40 Plus - T40W Plus Packing and unpacking Setting to work - connection to the power supply Dispose of the packing materials in compliance with the laws in force. Figure 3 WARNING! ■ Make sure there is no evident sign of damage to the vacuum cleaner before starting work. -
Page 7: Extensions
T22 Plus - T40 Plus - T40W Plus Extensions Dry applications If an extension cable is used, make sure it is suitable for the [ NOTE ] power input and protection degree of the vacuum cleaner. The supplied filters and the bag (if applicable) must be WARNING! installed correctly. -
Page 8: Technical Specifications
T22 Plus - T40 Plus - T40W Plus Technical specifications Parameter Units T22 Plus T40 Plus T40W Plus Dust classes L - M - H Voltage (50 Hz) Power rating (T_Plus / T_Plus Z22) Power rating (EN 60335-2-69) (50 Hz) (T_Plus / T_Plus Z22) -
Page 9: Safety Devices
T22 Plus - T40 Plus - T40W Plus Safety devices Checking the rotation direction of the vacuum unit motor Figure 5 Check the vacuum cleaner operation by putting a hand on the Vacuuming unit inlet. Limiting valve If the vacuum cleaner does not vacuum any air, the rotation Clapet direction is not correct;... -
Page 10: Shaking The Primary Filter
T22 Plus - T40 Plus - T40W Plus Shaking the primary filter Safe Dust Bag Figure 9-10 Class H vacuum cleaners are supplied with the dust bag - code 4084001014 (Fig. 12). Depending on the vacuumed dust quantity and if the pointer Class H vacuum cleaners must always be used with this bag of the vacuum gauge switches from the green zone (3, Fig. -
Page 11: At The End Of A Cleaning Session
T22 Plus - T40 Plus - T40W Plus At the end of a cleaning session ■ A check must be carried out by the manufacturer or the personnel of the same at least once a year. For example: ■ Turn off the vacuum cleaner and remove the plug from Check the air filters to find out whether the air-tightness the socket. -
Page 12: Primary Filter Replacement
T22 Plus - T40 Plus - T40W Plus Primary filter replacement WARNING! Figure 15 Take care not to raise dust when this operation is carried out. Wear a P3 mask and other protective Vacuum hose clothing plus protective gloves (DPI) suited to the... -
Page 13: Tightness Inspection
T22 Plus - T40 Plus - T40W Plus Separator cleaning and replacement (8) to the absolute filter holder disc (7). ■ Insert the cover (3) again. (optional) ■ Close the cover hermetically by means of the lever (4) and lock the safety bolt (5) again. -
Page 14: Wiring Diagrams
T22 Plus - T40 Plus - T40W Plus Wiring diagrams Class L, M, H vacuum cleaner with electric filter shaker or solid material retaining sensor Figure 29 Class L, M, H vacuum cleaner Power input Figure 22 Phase sequence relay... -
Page 15: Additional Information About Special Versions "Asbestos
T22 Plus - T40 Plus - T40W Plus Additional information about special Figure 34 Power input versions “Asbestos” Phase sequence relay Vacuum cleaner ■ Asbestos vacuum cleaners (in accordance with German Figure 35 specification TRGS 519) Transformer Voltage indicator WARNING! -
Page 16: Recommended Spare Parts
T22 Plus - T40 Plus - T40W Plus Recommended spare parts The following is a list of spare parts that should be kept ready at hand in order to speed up maintenance operations. Refer to the manufacturer’s spare parts catalogue when ordering spare parts.
