Silver Lynx Ella Assembly Instructions

Bed

(please retain this instruction for future reference)

To assemble your bed you have been supplied with 2 x corner bracket inc leg, 12 x M4

button head bolts, 2 x 1 ¼ screws and an Allen key.

Steps:

1. Connect the side rails to the bed head

and foot end rail by hooking the side

rail brackets onto the head and foot

end rail bracket. NOTE: Make sure side

rails are attached so that two button

head bolts (already attached to side

rails) are at the foot end of the bed.

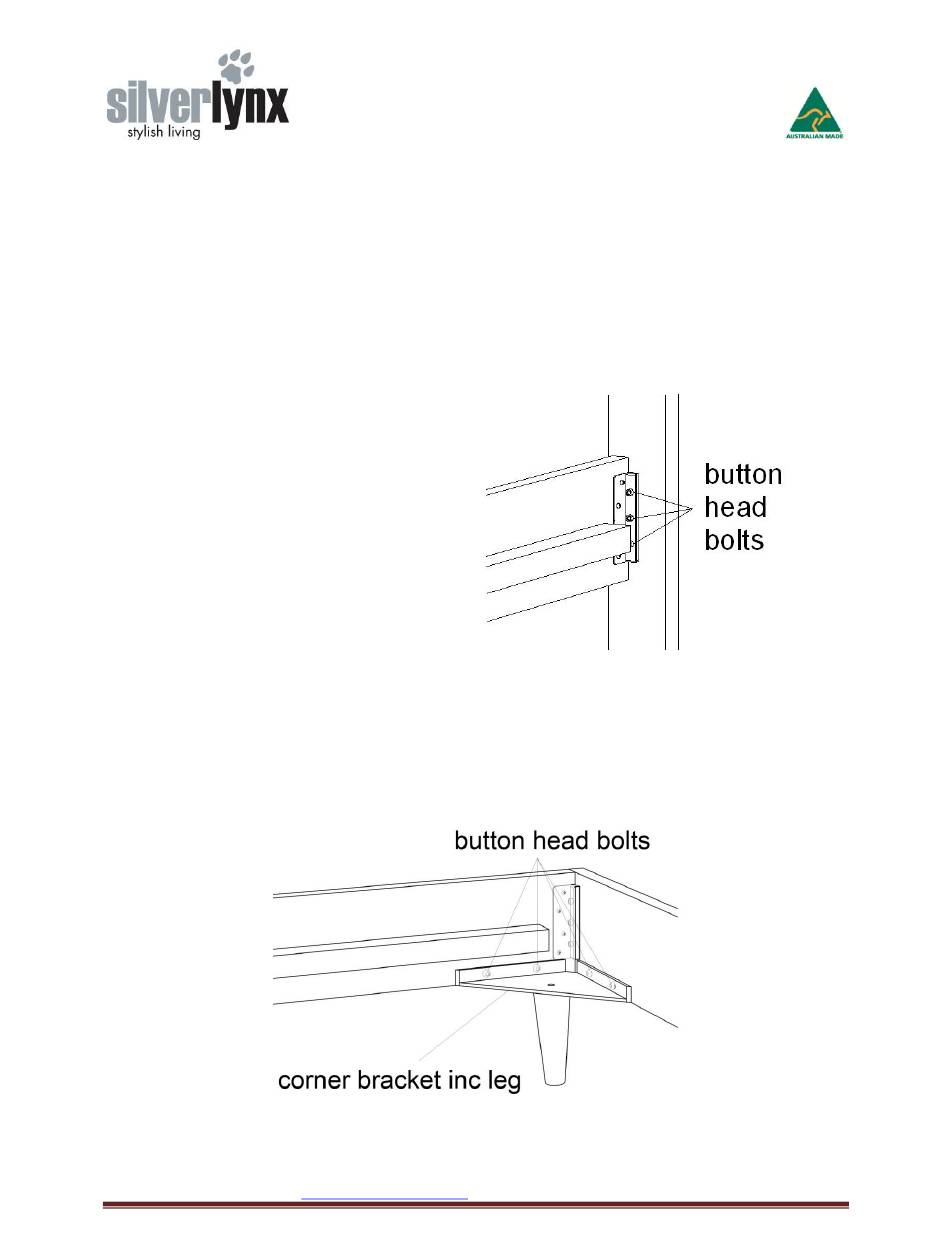

2. Screw three button head bolts (M4)

loosely into the holes on the bracket

on the bed head and foot end rail.

3. Tighten the button head bolts – only

finger tight.

4. Remove button head bolts (M8) from foot end of each side rail and foot end rail. Lift

the base frame and position corner bracket inc. leg into position. NOTE: Holes on

corner bracket must line up with the holes on the side rails and foot end rail.

Bomi Furniture P/L Trading as Silver Lynx Furniture

11 – 17 Sages Road Glenroy Victoria 3046 Australia T: +61 3 9359 4000 F: +61 3 9359 4322

Ella - Bed Assembly Instructions

sales@silverlynx.com.au

W: www.silverlynx.com.au

ABN 99 006 489 541

Page 1 of 2
