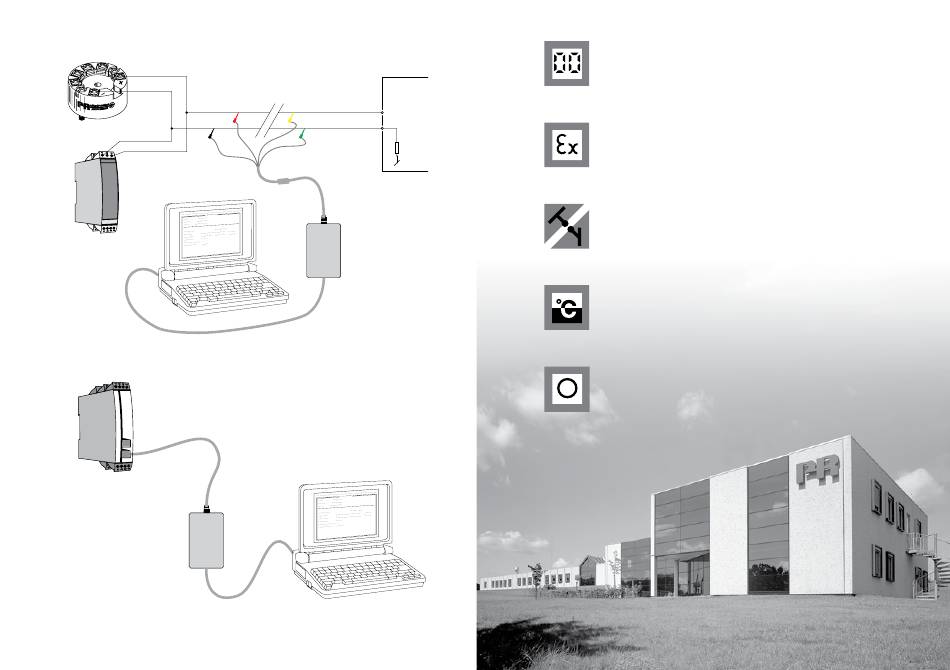

Connection of PR modules using EZ-Mini-Hooks:
1
2
PR 5331, 5333, 5334, 5335
Black
11 (21)
13 (23)
PR 6331, 6333, 6334, 6335
Connection of PR modules using a modular connector:
Programming cable
with modular connector
PR 5114, 5115, 5116, 5131
Loop
Link
USB cable
28
Receiving
Equipment
Disconnect
+Vsupply
Red Yellow
*
Input
Green
*
Connector
* Connected only for
on-line programming
Loop
Link
USB cable
Displays
Programmable displays with a wide
selection of inputs and outputs for display of temperature,
volume and weight, etc. Feature linearisation, scaling, and
difference measurement functions for programming via
PReset software.
Ex interfaces Interfaces for analogue and digital signals
as well as HART signals between sensors / I/P converters /
®
frequency signals and control systems in Ex zone 0, 1 & 2
and for some modules in zone 20, 21 & 22.
Isolation Galvanic isolators for analogue and digital
signals as well as HART ® signals. A wide product range
with both loop-powered and universal isolators featuring
linearisation, inversion, and scaling of output signals.
Temperature
A wide selection of transmitters for DIN
form B mounting and DIN rail modules with analogue
and digital bus communication ranging from application-
specific to universal transmitters.
Universal PC or front programmable modules with
universal options for input, output and supply. This range
offers a number of advanced features such as process
calibration, linearisation and auto-diagnostics.
