Application:

Loop.Link.5909.is.a.USB.communications.interface.for.configuration.
and.monitoring.of.PR.electronics'.PC-programmable.modules..The.USB.
communication.is.supported.by.the.Windows
and.Vista..PR.modules.available.in.the.configuration.program.PReset ver. 5.0.
or.higher,.can.be.programmed.by.way.of.Loop.Link.5909.
Technical characteristics:
The.PC.program.CD.PReset ver. 5.0.or.higher.contains.the.necessary.
(unsigned).USB.drivers..Loop.Link.5909.is.supplied.from.the.USB.port.of.the.
PC..If.you.want.to.conserve.power.on.a.laptop,.the.USB.connector.of.the.
5909.can.be.connected.to.an.externally.supplied.hub..The.communications.
connector.on.the.PR.modules.is.galvanically.isolated.from.the.USB.connection.
on.the.PC.

Installation:

System requirements:
®
Windows .98SE,.ME,.2000,.XP.and.Vista.with.the.following.recommendations:
. Memory:. 16.MB.
. Display.resolution:. 800.x.600.
. Hard.disk.space:. 12.MB
Installation of PReset:
The.USB.communications.interface.Loop.Link.5909 must not be connected.to.
the.USB.port.of.the.PC.until.after.installation.of.the.PReset.program..
PReset.will.be.installed.on.your.hard.disk.and.the.registry.will.be.updated.with.
all.necessary.information.on.the.program..A.PReset.icon.will.automatically.be.
placed.on.the.desk.top..
1. Insert the CD-ROM in the CD-ROM drive and the dialogue
"InstallShield Wizard PReset - INSTALL" will start automatically.
2. When the installation program has been started, on-screen
guidelines will guide you through the rest of the installation.
3. If AutoRun is disabled in Windows
click the "Start" button, select [Run] and start the installation
program "CD drive:\PResetWin\setup.exe".
Installation of USB drivers for
Install.the.USB.drivers.while.the.PReset.CD.is.still.in.the.drive,.i.e..immediately.
after.the.PReset.installation..Please.note.that.you.need.to.install.two.USB.
drivers.
20
®.
versions.98SE,.ME,.2000,.XP.
®
98SE, ME, 2000, XP and Vista,
Windows ® 98SE, ME and XP
1. Connect Loop Link 5909 to the USB port of the PC.
2. After a short while, the guide "New hardware found" will be shown.
This guide will help you through the installation of the first USB
driver.
3. When pressing [Execute] the first USB driver will be installed.
4. The guide starts again and helps you through the installation of the
second USB driver.
5. When pressing [Execute] the USB driver installation will be
complete.
Special instructions for Windows
®

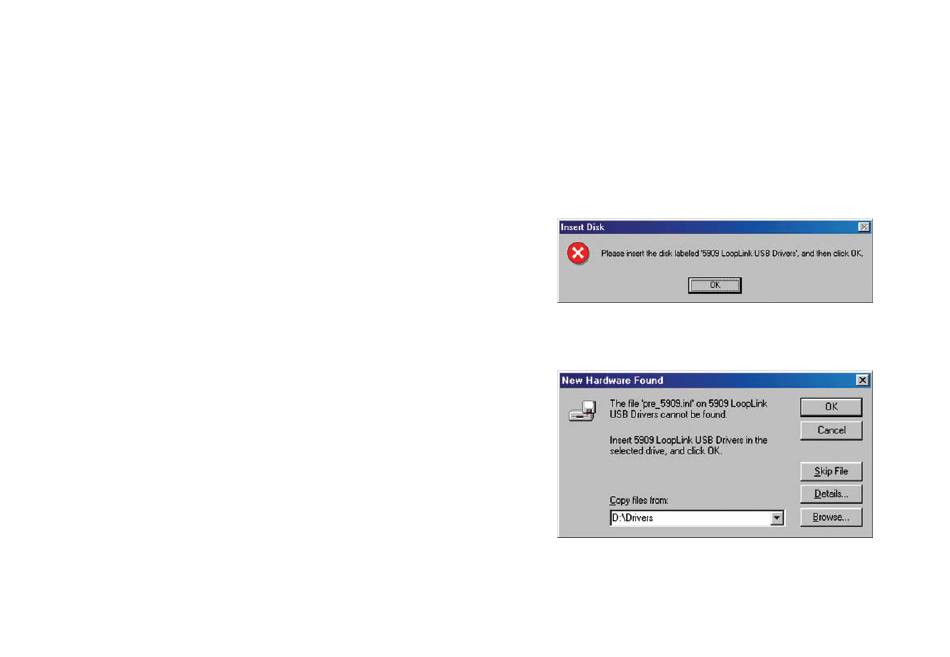

1. When Windows 98SE and ME are searching for the drivers, the
following message will probably appear:
2. After clicking OK, you will see the following dialogue where the path
"CD-ROM drive:\drivers" must be specified. Either use [Browse] or
type the path.
3. The installation will then continue according to the guidelines
specified in "Installation of USB drivers for Windows
XP".
®
98SE and ME:
®
98SE, ME and
