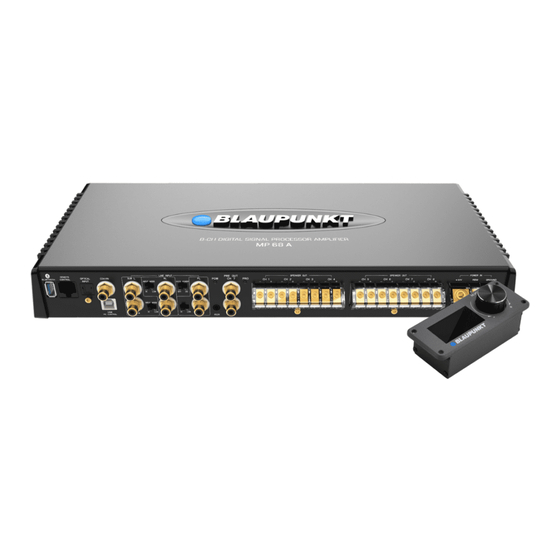

- Page 1 VELOCITY POWER CLASS D AMPLIFIER with DSP MP 68A Operating and Installation Instructions...
- Page 2 Read this carefully, prior to • In no event shall Blaupunkt be liable for any direct, using the car radio. Keep this manual in an easily indirect, punitive, incidental, special consequential accessible location.
-
Page 3: Input Function
INPUT FUNCTION Output to an ampli er system Speaker-in Hi-level Stereo Front + Rear + Subwoofer Remote Control In-Out Optical Power Protection Power-in Input Low / High Level-input Speaker Out Input 1. CH1 Out - 5. CH3 Out - 9. CH5 Out - 13. - Page 4 Adjust the sensitivity using the Level controls. 2 USB INPUT Connect PC to the processor through the USB (type B) input to adjust its setting with the downloaded DSP software. Visit www.blaupunkt.com/ase to download. REMOTE CONTROL OUTPUT Power-in +12V : Positive terminal for 12V vehicle power supply GND : Power supply negative terminal (GND) Warning : Ensure the polarity connection is as indicated on the terminals.
-
Page 5: Installation & Wiring Diagram
INSTALLATION & WIRING DIAGRAM Use 1mm (16 AWG) cable for power supply connection T30A-delayed (fuse & holder are Ground not provided) Ground REM-OUT to car radio Remark : The device is protected by its built-in fuse-resistor... -
Page 6: Install Software
INSTALL SOFTWARE 1. Insert Software CD into the PC and double-click on Blaupunkt DSP Setup EN to began installinng software. (Software is also available at www.blaupunkt.com/ase) 2. Click NEXT 3. Click CHANGE to change le saving location if prefer, then click NEXT 4. -
Page 7: Software Operation
SOFTWARE OPERATION Double-click on Blaupunkt DSP software to began using Blaupunkt DSP 1.0 Car entertainment enthusiast / experts may now begin to tone signal details. Enhance the sound e ect according to your very own preference for optimum music enjoyment with the DSP software 1. - Page 8 SOFTWARE OPERATION 2. INPUT MODE iv. Output Channel To select di erent input devices Clik the drop-down button to adjust channel input 3. CHANNEL SETTING Options on the LINK are for combine setting for Left/ i. Optional Fullrange Right CH. Tone each selected channel with Left/Right CH 2-way crossover.
- Page 9 SOFTWARE OPERATION 6. GAIN 12. READ 0-40dB is optional range for gain control kf every CH i. To read setting from DSP (POS1-POS8) 7. DELAY i. Auto con guration (base on 1.5 setting) ii. Manual con gurations in selected CH manually ii.
-
Page 10: Installation Reference
INSTALLATION REFERENCE CHANNEL STAND ALONE TREBLE MODE FLTW FRTW CH1/CH2 SPEAKER OUTPUT CH3/CH4 SPEAKER OUTPUT Hi Level Input MP 68A FLMB CH5/CH6 SPEAKER OUTPUT CH7/CH8 SPEAKER OUTPUT FRMB ACCU RLMidrange Ground RRMidrange Subwoofer 2-WAY CROSSOVER TREBLE MODE FLTW FRTW CH1/CH2 SPEAKER OUTPUT... -
Page 11: Remote Control Key Function
REMOTE CONTROL KEY FUNCTION a. Adjust Volume b. Press once to MUTE/UNMUTE c. Press and hold to enter MENU mode 2. Volume display 3. DSP mode display window (1-8) 4. Input display status (CD - AUX - SPDIF - BT) - Page 12 1 141 18 002 02 01 Designed and engineered by Blaupunkt Competence Center...
