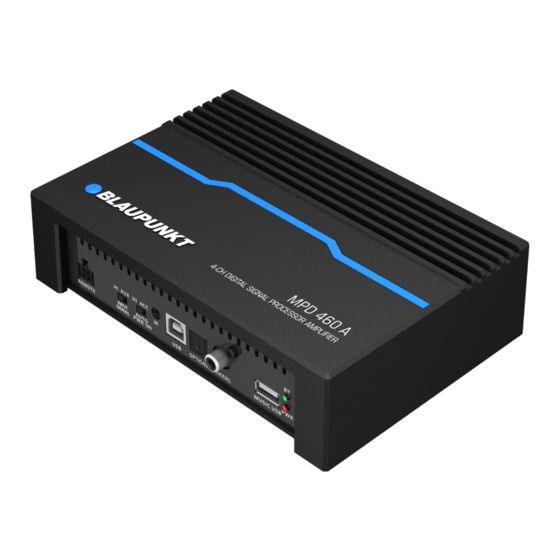

- Page 1 VELOCITY POWER CLASS AB AMPLIFIER with DSP MPD 460 A Operating and Installation Instructions...
- Page 3 • • Device must be used in a way that compliments In no event shall Blaupunkt be liable for any di- safety of the user when driving the vehicle. It is rect, indirect, punitive, incidental, special conse- recommended for the user to install at an ap- quential damages, to property or life, improper propriate location when operating the device.
-
Page 4: Input Function
INPUT FUNCTION Remote Control (Optional) HI IN / LOW IN Convertor HI / REM Convertor IR (Connect to Receiver) USB 2.0 port Optical Input Coaxial Input USB Player Bluetooth & Power LED Low Level RCA Input Low Level RCA Output Hi Level Input/ Speaker Output/ Remote in/ Remote Out/Power in... -
Page 5: Wiring Diagram
WIRING DIAGRAM Car Specific Wiring Method Car Specific DSP/ Amplifier Wiring Harness Car Player To Computer by USB... - Page 6 WIRING DIAGRAM Universal Wiring Method Car Head Unit (Red Wire) Front Right Speaker Purple Green (Blue Wire) Front Left White Speaker Grey Rear Right Speaker Rear Left Speaker...
-
Page 7: Specification
SPECIFICATION Audio Output • RMS Power : 35Wx4(4Ω), 60Wx4(2Ω) • 6 x RCA/ Cinch • • DSP Resolution : 24 Bit 4 High Level Speaker Output • • DSP Power : 48 kHz 1 x Remote-out • • Output Power RMS @ 4 Ohms (≤1% THD +N) : 4x35W Voltage RCA/ Cinch : 4V RMS •... - Page 8 SOFTWARE OPERATION (WINDOWS) Blaupunkt MPD 460 A Software Visit www.blaupunkt.com/ase to download the software. MPD 460 A.exe Car entertainment enthusiast / experts may now begin to tone signal details. Enhance the sound effect according to your very own preference for optimum music enjoyment with the DSP software.
- Page 9 SOFTWARE OPERATION (WINDOWS) 6-Channel Control Main Volume Control Crossover Frequency Setting : • 3 Types of High-pass Frequency • 3 Types of Low-pass Frequency...
-
Page 10: Troubleshooting
TROUBLESHOOTING If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist. Problem Solution Amplifier power Examine if the ground connection is intact. up failure Examine if remote input has at least 5V DC. - Page 12 Designed and engineered by Blaupunkt Competence Centre 1 141 21 008 02 01...
