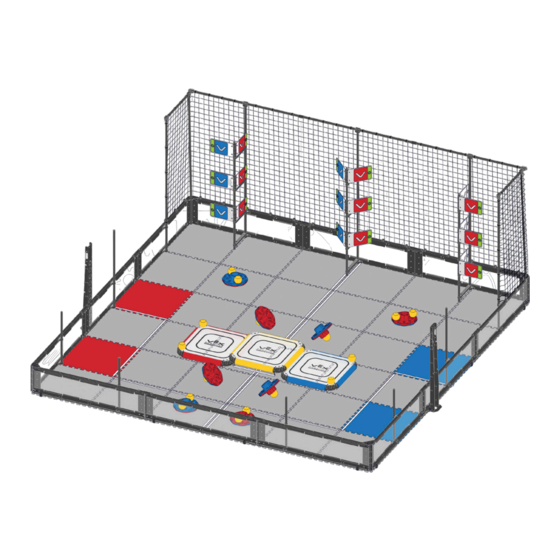

- Page 1 Field Build Instructions 276-5677-750...
-
Page 2: Parts List
Parts List 276-5677-017 276-5677-014 125x 8-32 Nylock 276-1027-001 0.375 in 276-5677-008 276-4991-001 0.5 in 276-4992-001 0.625 in 276-5677-007 276-4993-001 0.875 in 276-4995-001 276-5677-026 1 in 276-5677-015 276-4996-001 1.5 in 276-4998-001 276-5677-010 276-5677-009 2 in 275-1018-001 0.5 in 276-5677-013 275-1014-001 Hook /Loop Fastener 276-5677-019 276-5677-036 276-5677-006... - Page 3 9.125 in (231.775 mm) Short Pipe 276-5677-005 276-5677-032 58 in (1473.2 mm) Pipe 276-5677-001 47 in (1193.8 mm) Pipe 276-5677-002 13.25 in (336.55 mm) Long Pipe 276-5677-033 Net 276-5677-016 276-5677-040 34 in (863.6 mm) Pipe 276-5677-003 276-5156-001 276-5677-100 23 in (584.2 mm) Pipe 276-5677-004 276-5677-041 276-5677-035...
- Page 4 There are (7x) strips of 3/4 in White Electrical Tape on the Field, as shown below: = Tuck tape under tile IMPORTANT NOTE: DO NOT stretch tape when applying to the foam tile floor. For best results, smooth out any bubbles that form during application. To prevent tape lines from being pulled up during competition, it is recommended that the ends of the tape are tucked into tile seams.
- Page 5 Field Monitor Mount (optional) Recommended Location Use ¼-20 x 0.5 in screw already on field...
- Page 6 0.625 in 0.625 in...
- Page 7 0.625 in 0.625 in...
- Page 8 0.625 in 0.625 in...
- Page 9 1 in 0.5 in 0.375 in 0.5 in 0.375 in...
- Page 10 1.5 in 1.5 in...
- Page 11 0.5 in 0.5 in 0.375 in 0.375 in Locate 015 under tiles with the standoff facing up. Note: Tabs on the foam tiles may be mirrored on your field.
- Page 12 1 in Tabs may deform during assembly...
- Page 13 8-32 Nylock 8-32 Nylock 34 in 23 in 863.6 mm 584.2 mm...
- Page 14 0.625 in 0.625 in 34 in 863.6 mm 23 in 584.2 mm 34 in 863.6 mm 23 in 584.2 mm 23 in 23 in 584.2 mm 584.2 mm...
- Page 15 8-32 Nylock 8-32 Nylock 8-32 Nylock 0.375 in 0.375 in 8-32 Nylock 0.375 in 0.375 in 8-32 Nylock 0.875 in 8-32 Nylock Tighten only enough to engage nut. Do not fully tighten screws. 0.875 in...
- Page 16 47in 1193.8 mm Assemble on flat surface 58 in 1473.2 mm After alignment tighten screws Use 4x 006 for Alignment Align bottoms...
- Page 18 After alignment Short Pipe 9.125 in tighten screws 231.78 mm Use 032 for Alignment...
- Page 20 Long Pipe 13.25 in 336.55 mm After alignment tighten screws Use 033 for Alignment...
- Page 22 Long Pipe 13.25 in 336.55 mm After alignment tighten screws Use 033 for Alignment...
- Page 24 0.5 in 8-32 Nylock Align 017 straight 8-32 Nylock 0.5 in...
- Page 25 2 in 2 in 0.375 in 0.375 in Locate 015 under tiles with the standoff facing up. Tabs may deform during assembly Note: Tabs on the foam tiles may be mirrored on your field.
- Page 26 0.875 in 0.625 in 0.625 in 0.875in...
- Page 27 ¼ -20 x 0.5 in screw ¼ -20 x 0.5 in screw Use ¼-20 x 0.5in screw already on field Use ¼-20 x 0.5in screw already on field...
- Page 28 8-32 Nylock 8-32 Nylock 0.5 in 0.5 in 58 in 1473.2 mm...
- Page 29 0.625 in 0.625 in...
- Page 31 0.5 in 8-32 Nylock 0.5 in 23 in 8-32 Nylock 584.2 mm Pipe must be bent for assembly, bending is normal...
- Page 32 47in 1193.8 mm 47in 1193.8 mm 47in 1193.8 mm...
- Page 39 276-5156-001...
- Page 40 Turning Point Game Element Placement vexedr.com/turningpoint...
- Page 44 Field Build Instructions 276-5677-750 Rev1 Custom manufactured in China for Innovation First Trading SARL. Distributed in the U.S.A. by VEX Robotics, Inc., 6725 W. FM 1570, Greenville, TX 75402, U.S.A. Distributed in Europe by Innovation First Trading SARL, 21b rue Gabriel Lippmann, L-5365 Munsbach, Luxembourg +352 27 86 04 87.
