Danfoss ECL Comfort 310 Installation Manual
Application a319
Hide thumbs
Also See for ECL Comfort 310:
- Operating manual (171 pages) ,
- Installation manual (167 pages) ,
- Mounting manual (32 pages)
Related Manuals for Danfoss ECL Comfort 310
Summary of Contents for Danfoss ECL Comfort 310

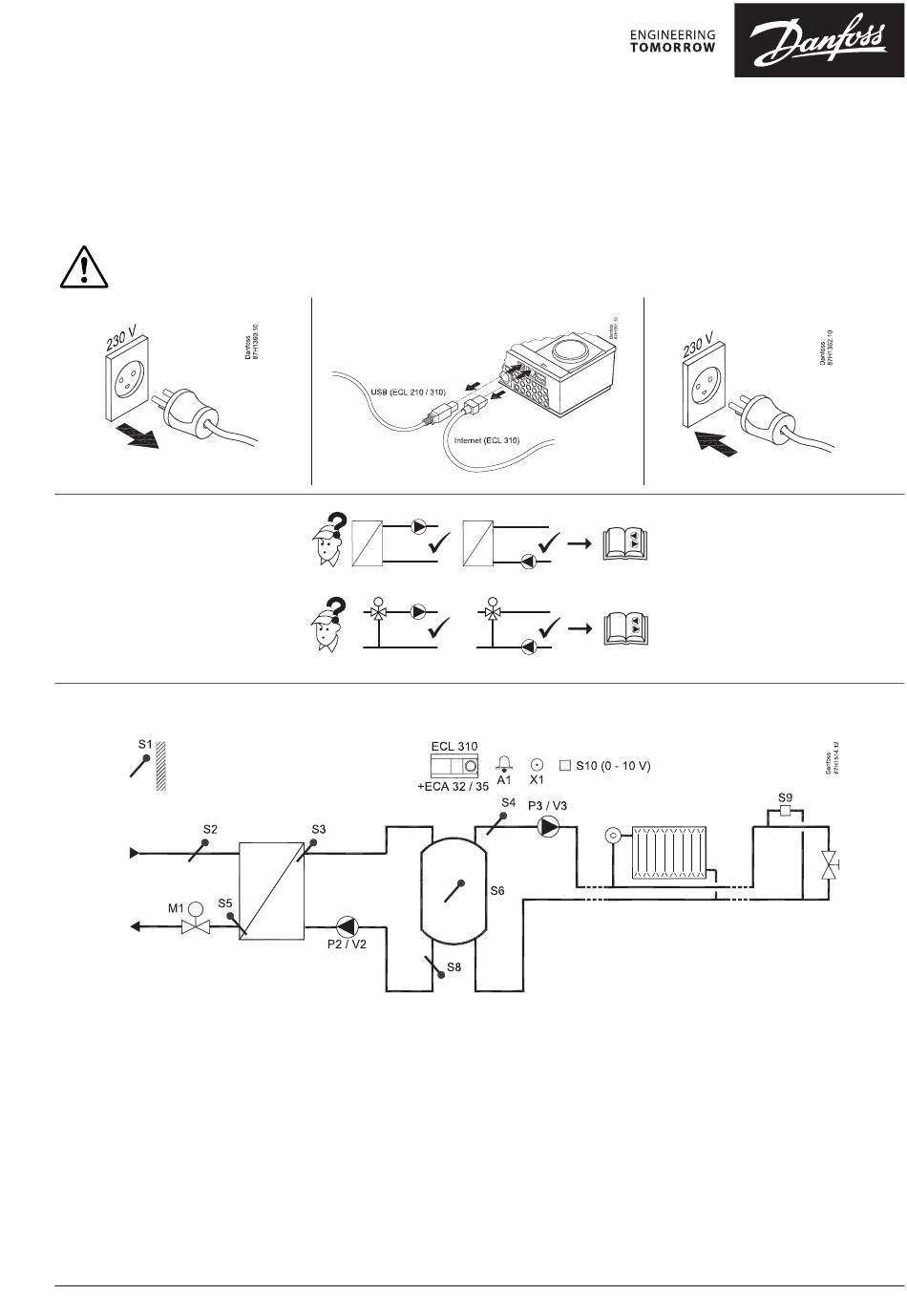

- Page 1 Installation Guide ECL Comfort 310, A319 (code no. 087H3831, 087H3847) A319.1, ex. a: VI.JM.I4.00 | 1 © Danfoss | 2018.12...
- Page 2 Installation Guide, ECL Comfort 310, A319 A319.2, ex. a: ECL 310, 230 V a.c.: 3-point: A319.1 ü A319.2 ü ü 230 V a.c., A319.1 / A319.2: 2 | © Danfoss | 2018.12 VI.JM.I4.00...
- Page 3 Installation Guide, ECL Comfort 310, A319 ECA 32, 0 - 10 V out ECA 35, PWM out VI.JM.I4.00 © Danfoss | 2018.12 | 3...
- Page 4 Installation Guide, ECL Comfort 310, A319 230 V a.c. / 24 V a.c., safety thermostat 1-step closing ECL 210 / 310 ECL 210 / 310 ECL 210 / 310 ECL 210 / 310 4 | © Danfoss | 2018.12 VI.JM.I4.00...
- Page 5 Installation Guide, ECL Comfort 310, A319 230 V a.c. / 24 V a.c., safety thermostat 2-step closing ECL 210 / 310 ECL 210 / 310 VI.JM.I4.00 © Danfoss | 2018.12 | 5...
- Page 6 Installation Guide, ECL Comfort 310, A319 ECL 310, 24 V a.c.: 3-point: A319.1 ü A319.2 ü ü 24 V a.c., A319.1 / A319.2 6 | © Danfoss | 2018.12 VI.JM.I4.00...
- Page 7 Installation Guide, ECL Comfort 310, A319 Pt 1000 (1000 Ω / 0 °C) ECL Comfort 210 / 296 / 310 ECL Comfort 210 / 296 / 310 230 V a.c. 230 V a.c. Input S1 - S6 and S8 S9 (0 - 10 V)
- Page 8 Installation Guide, ECL Comfort 310, A319 ECA 30 / 31 ECA 30 / 31 8 | © Danfoss | 2018.12 VI.JM.I4.00...
- Page 9 Installation Guide, ECL Comfort 310, A319 Master / slave Modbus ECL 210 / 296 / 310 M-bus ECL 296 / 310 M-bus ECL 296 / 310 METER METER S.Gnd VI.JM.I4.00 © Danfoss | 2018.12 | 9...
- Page 10 Installation Guide, ECL Comfort 310, A319 Pt 1000 (IEC 751B, 1000 Ω / 0 °C) Ω °C Ω 1600 1500 1400 1000 1300 1039 1078 1117 1200 1155 1194 1100 1232 1271 1309 1000 1347 1385 1423 1461 1498 1535 1573 °C...
- Page 11 Installation Guide, ECL Comfort 310, A319 ECA 30 VI.JM.I4.00 © Danfoss | 2018.12 | 11...
- Page 12 Installation Guide, ECL Comfort 310, A319 *087H9244* ECL Comfort 310, A319: www.heating.danfoss.com *VIJMI400* VI.JM.I4.00 12 | © Danfoss | DHS-SMT/DK | 2018.12...
