Mounting Guide
ECL Comfort 310, A368
(code no. 087H3803)
A368.1, ex. a:
P
P
P
Danfoss District Energy
VI.LG.K2.00
DEN-SMT/DK
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECL Comfort A368 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Danfoss ECL Comfort A368

Summary of Contents for Danfoss ECL Comfort A368

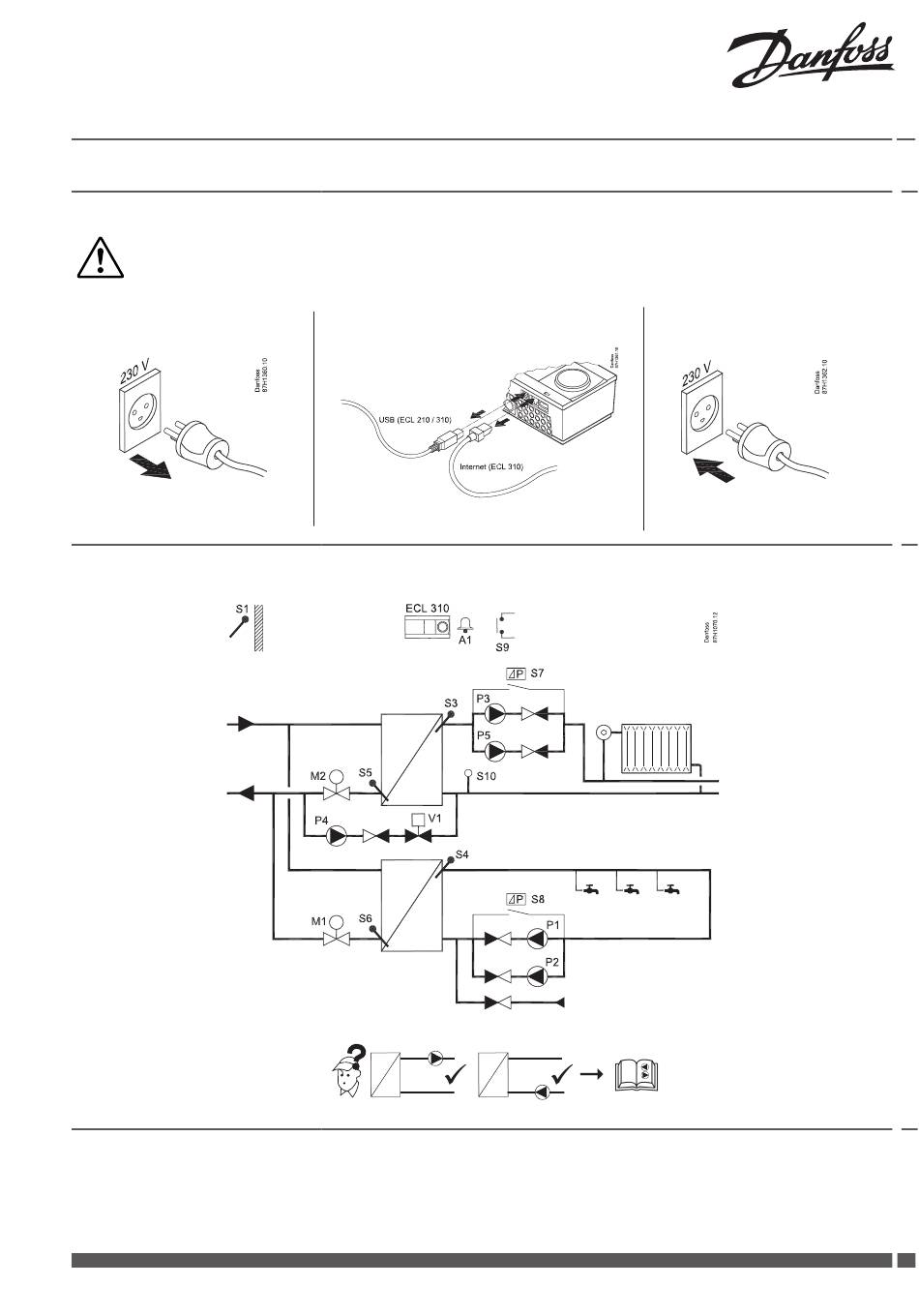

  • Page 1 Mounting Guide ECL Comfort 310, A368 (code no. 087H3803) A368.1, ex. a: Danfoss District Energy VI.LG.K2.00 DEN-SMT/DK...
  • Page 2 Mounting Guide ECL Comfort 310, A368 A368.2 , ex. a: A368.3 , ex. a: DEN-SMT/DK VI.LG.K2.00 Danfoss District Energy...
  • Page 3 Mounting Guide ECL Comfort 310, A368 A368.4 , ex. a: A368.5 , ex. a: Danfoss District Energy VI.LG.K2.00 DEN-SMT/DK...
  • Page 4 Mounting Guide ECL Comfort 310, A368 A368.6, ex. a: DEN-SMT/DK VI.LG.K2.00 Danfoss District Energy...
  • Page 5 ü ü ü ü A368.5 ü ü ü ü ü A368.6 ü ü ü ü 230 V a.c., A368 (ECA 32) A368.1 A368.2 A368.3 ü A368.4 ü A368.5 ü A368.6 ECA 32 230 V a.c. Danfoss District Energy VI.LG.K2.00 DEN-SMT/DK...
  • Page 6 Mounting Guide ECL Comfort 310, A368 24 V a.c. / 230 V a.c. safety thermostat DEN-SMT/DK VI.LG.K2.00 Danfoss District Energy...
  • Page 7 ü A368.5 ü ü ü ü ü A368.6 ü ü ü ü 24 V a.c., A368 (ECA 32) A368.1 A368.2 A368.3 ü A368.4 ü A368.5 ü A368.6 ECA 32 24 V a.c. 230 V a.c. Danfoss District Energy VI.LG.K2.00 DEN-SMT/DK...
  • Page 8 ü ü ü ü A368.6 ü ü ü ü ü ü ü A368 (ECL 310) A368.1 ü A368.2 ü A368.3 ü A368.4 ü A368.5 ü A368.6 ü V d.c. = 12 - 24 V d.c. DEN-SMT/DK VI.LG.K2.00 Danfoss District Energy...
  • Page 9 ECL Comfort 310, A368 A368 (ECL 310) V d.c. = 12 - 24 V d.c. A368 (ECL 310) A368.1 ü ü A368.2 ü ü A368.3 ü ü A368.4 ü ü A368.5 ü ü A368.6 ü Danfoss District Energy VI.LG.K2.00 DEN-SMT/DK...
  • Page 10 Mounting Guide ECL Comfort 310, A368 A368 (ECL 310) A368, ECA 32 Pt 1000 (1000 Ω / 0 °C) A368.1 A368.2 A368.3 A368.4 A368.5 ü ü A368.6 DEN-SMT/DK VI.LG.K2.00 Danfoss District Energy...
  • Page 11 ü ü ü ü ü A368.4 ü ü ü ü ü A368.5 ü ü ü A368.6 V d.c. = 12 - 24 V d.c. A368, ECA 32 V d.c. = 12 - 24 V d.c. Danfoss District Energy VI.LG.K2.00 DEN-SMT/DK...
  • Page 12 Mounting Guide ECL Comfort 310, A368 A368, ECA 32 A368.1 A368.2 A368.3 ü A368.4 ü A368.5 ü A368.6 DEN-SMT/DK VI.LG.K2.00 Danfoss District Energy...
  • Page 13 Mounting Guide ECL Comfort 310, A368 ECA 30 / 31 ECA 30 / 31 ECL 210 / 310 ESM-10 Danfoss District Energy VI.LG.K2.00 DEN-SMT/DK...
  • Page 14 Mounting Guide ECL Comfort 310, A368 Master / slave Modbus ECL 210 / 310 M-bus ECL 310 DEN-SMT/DK VI.LG.K2.00 Danfoss District Energy...
  • Page 15 Mounting Guide ECL Comfort 310, A368 M-bus Danfoss District Energy VI.LG.K2.00 DEN-SMT/DK...
  • Page 16 Pt 1000 (IEC 751B, 1000 Ω / 0 °C) Ω °C Ω 1600 1500 1400 1000 1300 1039 1078 1117 1200 1155 1194 1100 1232 1271 1309 1000 1347 1385 1423 1461 1498 1535 1573 °C 2.6 3.0 3.4 DEN-SMT/DK VI.LG.K2.00 Danfoss District Energy...
  • Page 17 Mounting Guide ECL Comfort 310, A368 ECA 30         Danfoss District Energy VI.LG.K2.00 DEN-SMT/DK...
  • Page 18 Mounting Guide ECL Comfort 310, A368 DEN-SMT/DK VI.LG.K2.00 Danfoss District Energy...
  • Page 19 Mounting Guide ECL Comfort 310, A368 Danfoss District Energy VI.LG.K2.00 DEN-SMT/DK...

  • Page 20: Mounting Guide

    Mounting Guide ECL Comfort 310, A368 *087H9019*   ECL Comfort 310, A368: www.ecl.doc.danfoss.com *VILGK200* Produced by Danfoss A/S © 10/2013...
