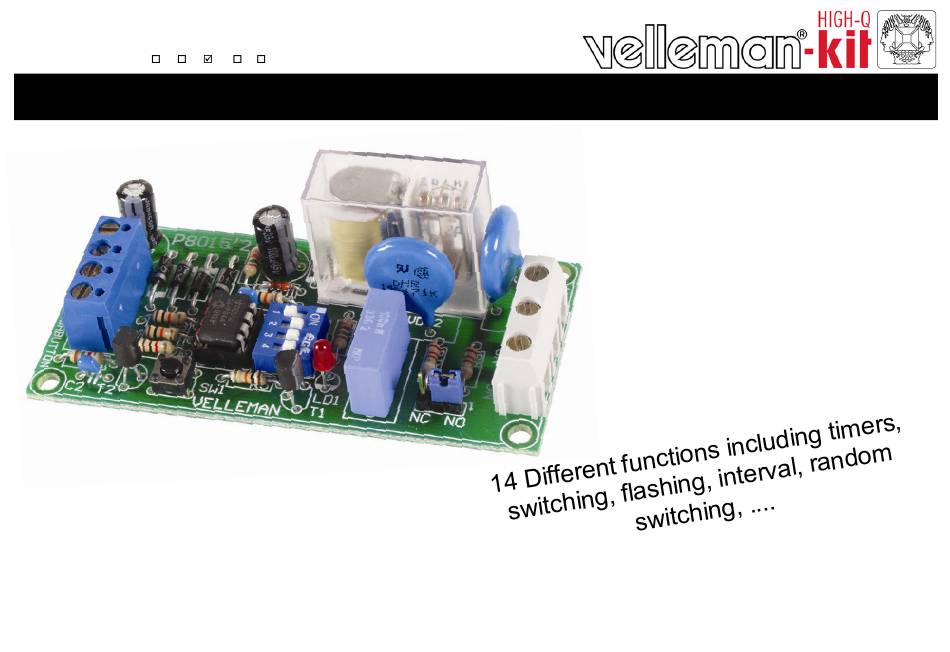

Multifunction relay switch, 14 different functions including timers, switching, flashing, interval, random, switching
Hide thumbs Also See for K8015:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Total solder points: 85
Difficulty level: beginner 1
2
3
4
5
advanced
MULTIFUNCTION RELAY SWITCH
K8015
ILLUSTRATED ASSEMBLY MANUAL
H8015IP-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K8015 and is the answer not in the manual?

Questions and answers

Summary of Contents for Velleman K8015

  • Page 1 Total solder points: 85 Difficulty level: beginner 1 advanced MULTIFUNCTION RELAY SWITCH K8015 ILLUSTRATED ASSEMBLY MANUAL H8015IP-2...
  • Page 2: Features And Specifications

    Features & Specifications Features: 14 different functions including timers, switching, flashing, interval, random switching, … Two pre-programmed delays. Learning mode for delays of 2s up to 12 days. EEPROM for delay time storage in case of power failure. On-board transient filter for the relay contacts. Suitable for control of incandescent lighting, halogen lighting, fluorescent lighting, fans, valves, buzzers, …...
  • Page 3: Assembly Hints

    Assembly hints 1. Assembly (Skipping this can lead to troubles ! ) Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully. 1.1 Make sure you have the right tools: • A good quality soldering iron (25-40W) with a small tip.
  • Page 4 REMOVE THEM FROM THE TAPE ONE AT A TIME ! AXIAL COMPONENTS ARE TAPED IN THE CORRECT MOUNTING SEQUENCE ! You will find the colour code for the resistances and the LEDs on the product page on our website: www.velleman.eu...
  • Page 5 Construction 1. Diode. Watch the polarity ! Resistors 1/4W 6. Push button. SW1 : KRS0611 D... CATHODE R... 7. IC socket. Watch the D1 : 1N4148 R1 : 1K5 (1 - 5 - 2 - B) position of the notch! R2 : 1K5 (1 - 5 - 2 - B) 2.
  • Page 6 Construction 10. LED. Watch the polarity! 13. Terminal blocks 16. VDR SK2 : 2p SK3 : 2p LD1 : 3mm RED LD... VDR1 : VDR 300 VAC SK4 : 3P VDR2 : VDR 300 VAC CATHODE 17. Relay 14. Electrolytic Capacitors 11.
  • Page 7 Construction 19. Shunt for transient suppressor. The unit is equipped with a transient suppressor to reduce contact wear. With very small loads, it might be necessary to omit the shunt. Transient suppressor over the normal open contact S K 1 Transient suppressor over the normal closed contact S K 1...
  • Page 8 Connection example Low Voltage 22. Connection example Low Voltage 2.5A max...
  • Page 9 Connection example Mains Voltage 23. Connection example Mains Voltage 12DC or 9VAC / 300mA 2.5A max 500W/230V max 275W/110V max...
  • Page 10 24. PCB...
  • Page 11 25. Diagram VR10V121C 220/0.6W 1N4148 SCREWL03 220/0.6W LED3RL IC1 PIC12CE518 VDR1 100nF/250V~ GP5/OSC1/CLKIN 2 VDR300 VDR300 GP4 3 SCREW02 PUSH BUTTON BC547 12V IN SCREW02 1N4007 1N4007 DS-4 BC547 KRS0611 100n 100n 1N4007 1N4007 100µ/35V 5V1/0.5W 100µ/35V...
  • Page 12: Especificaciones

    MÓDULO RELÉ MULTIFUNCIÓN CARACTERÍSTICAS : 14 funciones diferentes : temporizadores, conmutación, parpadeo, intervalo, conmutación aleatoria, etc. Dos temporizaciones preprogramadas. Modo de aprendizaje para temporizaciones de 2 segundos a 12 días. Equipado de EEPROM para almacenar los tiempos preprogramados durante una interrupción por fallo de alimentación. Filtro antiparásito para los contactos relés.
  • Page 13: Montaje

    MONTAJE La mayoría de los componentes han sido colocados mecánicamente por orden correcto en una banda para su facilidad y para evitar errores. Quite los componentes uno tras uno de la banda. Consejo : Puede usar las fotos del embalaje como directrices durante el montaje. Sin embargo, es posible que las fotos no correspondan completamente a la realidad debido a cambios posteriores.
  • Page 14: Modos De Operación

    19. SHUNT PARA SUPRESOR DE TRANSITORIOS : Este sistema está equipado con un filtro desparasitarlo a fin de suprimir de las interferencias causadas por la conmutación. Monte el shunt sobre los contactos normalmente abiertos (NO) o normalmente cerrados (NC) según la aplicación. Quite el shunt en caso de una carga muy pequeña.
  • Page 15 Apriete brevemente para activar el temporizador con tiempo1*. Apriete mucho tiempo Conmutador de para empezar con tiempo2*. Vuelva a apretar si la carga está conectada para reiniciar el escalera con dos temporizador. Después de que se haya pasado el tiempo instaurado, se desconecta la tiempos carga.
  • Page 16 Temporizador por Mientras esté apretado el botón, la carga se conecta durante el tiempo1* y se desco- intervalos necta durante el tiempo2* Aplicaciones : Regaderas, bombas de piscinas, compre- sores de drenaje, ventilación, descongelación, … Intermitente Mientras esté apretado el botón, la carga se conecta y se desconecta a una frecuencia fija de 1Hz Aplicaciones : lámparas de advertencia, zumbadores, …...
  • Page 17: Modo De Programación

    Una presión breve activa el delay1*. Una presión larga activa el delay2*. La carga se Interruptor de escalera neutralizará después del tiempo de variación, incluso si el botón queda apretado. La interrumpible con dos carga se neutraliza inmediatamente si aprieta el botón durante el tiempo que la carga tiempos.
  • Page 18 Luego, programe tiempo2: Apriete el pulsador brevemente. La carga parpadea 2 veces y se activa continuamente. Empieza la grabación del tiempo pasado. Espere hasta que se haya pasado el tiempo deseado. Vuelva a apretar el pulsador brevemente a fin de parar la grabación. La carga se desconecta.
  • Page 19 RESISTOR COLOUR CODE 10K OHM 100K OHM +/- 1% +/- 5% TOLERANCE DIGIT MULTIPLIER DIGIT DIGIT MULTIPLIER DIGIT TOLERANCE DIGIT 0.6 W MULTIPLIER TOLERANCE DIGIT DIGIT DIGIT STRIPE STRIPE Black Brown x 10 x 100 Orange x 1 000 Yellow x 10 000 Green x 100 000...
