Velleman K8015 Assembly Manual

Velleman K8015 Assembly Manual

Multifunction relay switch
Hide thumbs Also See for K8015:

Advertisement

Quick Links

Download this manual
Total solder points: 85
Difficulty level: beginner 1
2
3
4
5
advanced
MULTIFUNCTION RELAY SWITCH
K8015
1
ILLUSTRATED ASSEMBLY MANUAL
H8015IP-2

Advertisement

loading
Need help?

Need help?

Do you have a question about the K8015 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Velleman K8015

Summary of Contents for Velleman K8015

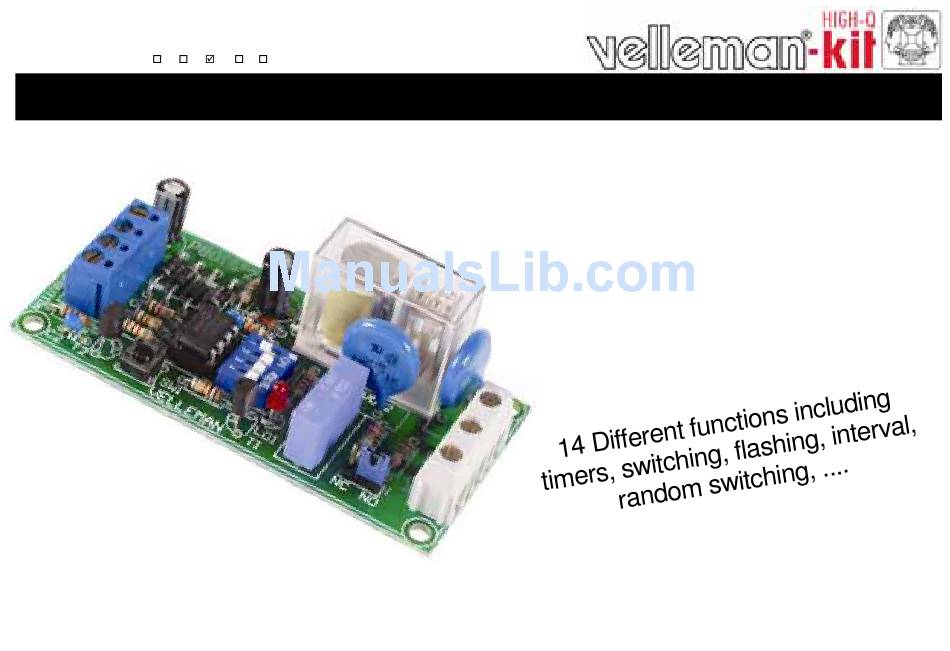

  • Page 1 Total solder points: 85 Difficulty level: beginner 1 advanced MULTIFUNCTION RELAY SWITCH K8015 ILLUSTRATED ASSEMBLY MANUAL H8015IP-2...
  • Page 2 Features & Specifications Features: 14 different functions including timers, switching, flashing, interval, random switching, … Two pre-programmed delays. Learning mode for delays of 2s up to 12 days. EEPROM for delay time storage in case of power failure. On-board transient filter for the relay contacts. Suitable for control of incandescent lighting, halogen lighting, fluorescent lighting, fans, valves, buzzers, …...

  • Page 3: Assembly Hints

    Assembly hints 1. Assembly (Skipping this can lead to troubles ! ) Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully. 1.1 Make sure you have the right tools: • A good quality soldering iron (25-40W) with a small tip.
  • Page 4 REMOVE THEM FROM THE TAPE ONE AT A TIME ! AXIAL COMPONENTS ARE TAPED IN THE CORRECT MOUNTING SEQUENCE ! You will find the colour code for the resistances and the LEDs in the HALG (general manual) and on our website: http://www.velleman.be/common/service.aspx...
  • Page 5 Construction 1. Diode. Watch the polarity ! Resistors 1/4W 6. Push button. SW1 : KRS0611 D... CATHODE R... 7. IC socket. Watch the D1 : 1N4148 R1 : 1K5 (1 - 5 - 2 - B) position of the notch! R2 : 1K5 (1 - 5 - 2 - B) 2.
  • Page 6 Construction 10. LED. Watch the polarity! 13. Terminal blocks 16. VDR SK2 : 2p SK3 : 2p LD1 : 3mm RED LD... VDR1 : VDR 300 VAC SK4 : 3P CATHODE VDR2 : VDR 300 VAC 17. Relay 14. Electrolytic Capacitors 11.
  • Page 7 Construction 19. Shunt for transient suppressor. The unit is equipped with a transient suppressor to reduce contact wear. With very small loads, it might be necessary to omit the shunt. Transient suppressor over the normal open contact S K 1 Transient suppressor over the normal closed contact SK 1...

  • Page 8: Operating Mode

    Operating mode 20. Operation mode OPERATION DESCRIPTION MODE Momentary The load will be switched on as long as the pushbutton is pressed. mode Applications : doorbell, … Push once to turn on, push again to turn off the load. Applications : put a virtually unlimited num- Toggle mode ber of pushbuttons in parallel to control a light source or other device.
  • Page 9 Operating mode Push to turn on. After pre-set time has elapsed, load will turn off. Pushing the button during on-time Non-retrigger- has no effect. Load will turn off when pushbutton is held down and time elapses. Applications : able timer General timing.
  • Page 10 Operating mode Push to start the blinking action as described above. At release, the timer will start. When time Blinking circuit elapses, the load is turned off. A push during on-time restarts the timer. with timer Applications : warning lights, buzzers, … As long as the button is closed, the system will activate the output in a random manner (9 min- utes to 2.5h between every transition).

  • Page 11: Learning Mode

    Operating mode & Learning mode 21. Learning mode The learning mode allows you to store two different delays, each from 2s up to 12 days. The delays are called delay1 and delay2. Originally, delay1 has been factory set to 3 minutes, while delay2 has been set to 30 minutes. All timer modes use delay1, unless the mode uses both delays.
  • Page 12 Connection example Low Voltage 22. Connection example Low Voltage 2.5A max...
  • Page 13 Connection example Mains Voltage 23. Connection example Mains Voltage 12DC or 9VAC / 300mA 2.5A max 500W/230V max 275W/110V max...
  • Page 14 24. PCB...
  • Page 15 25. Diagram VR10V121C 220/0.6W 1N4148 SCREWL03 220/0.6W LED3RL IC1 PIC12CE518 VDR1 100nF/250V~ GP5/OSC1/CLKIN 2 VDR300 VDR300 GP4 3 SCREW02 PUSH BUTTON BC547 12V IN SCREW02 1N4007 1N4007 DS-4 BC547 KRS0611 100n 100n 1N4007 1N4007 100µ/35V 5V1/0.5W 100µ/35V...
  • Page 16 VELLEMAN Components NV Legen Heirweg 33 9890 Gavere Belgium Europe www.velleman.be www.velleman-kit.com Modifications and typographical errors reserved © Velleman Components nv. H8015IP - 2004 - ED2 (rev. 1.0) 5 4 1 0 3 2 9 2 9 1 1 4 3...
