5.4 Leads setup

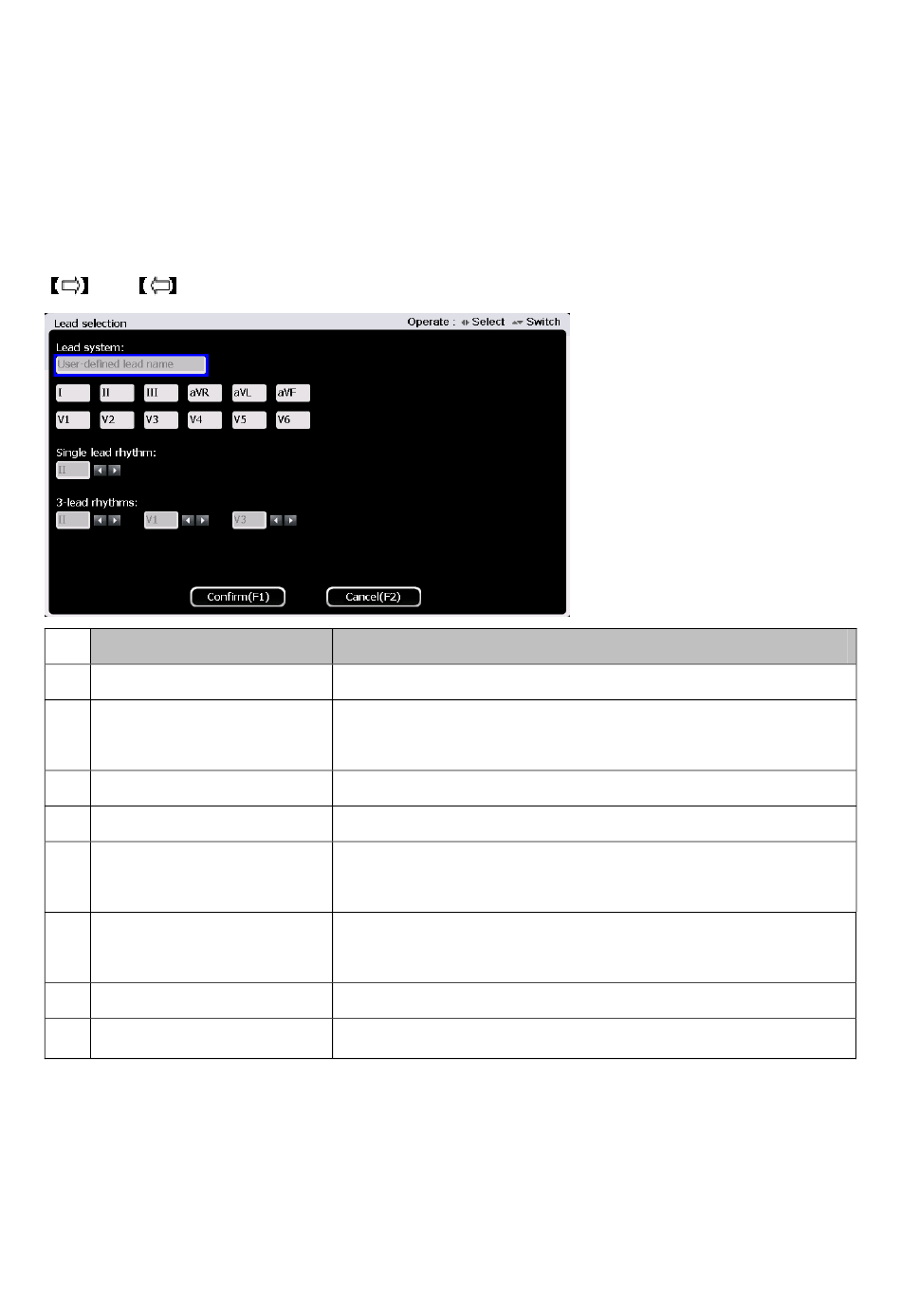

On the second page of main interface，press 【F1】button to enter lead setup interface. There are 8
lead systems for selection. For lead rhythm, you can choose either single lead or 3 lead rhythms as
shown below.
There are 8 lead setup systems available for selection. Users can select required lead system through
and button. The lead systems are defined as:
No Lead Setup System
1 Standard lead system
2 Posterior wall of the lead
system
3 Right chest lead system
4 left chest lead system
5 Previous intercostal lead
system
6 Next intercostal lead
system
7 FRANK lead system
8 CUBRERA lead system
Users can set single lead rhythm and three lead rhythms here. Select any lead rhythm from the 12
leads by pressing 【▲】and【▼】button.
Single lead rhythm: Users can set any single lead as lead rhythm. In auto mode, if 3CH×4+1R or
6CH×2+1R are selected, the single lead rhythm displayed is the lead set here.
I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6
I, II, III, aVR, aVL, aVF, V1, V2, V3, V7, V8, V9
I, II, III, aVR, aVL, aVF, V1, V2, V3R, V4R, V5R, V6R
I, II, III, aVR, aVL, aVF, V3R, V4R, V5R, V7, V8, V9
I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, , V6
I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6
I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6
aVL, I,-aVR，II, aVF, III, V1, V2, V3, V4, V5, V6
36
Electrode label
