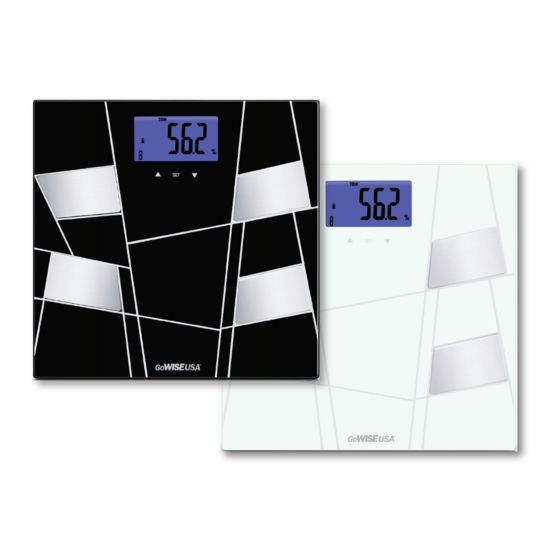

- Page 1 Instruction Manual DIGITAL BODY FAT SCALE VERSION 1.0 GW22041/GW22042 W W W . G O W I S E U S A . C O M...
-
Page 2: Table Of Contents
Table of Contents Device Components .......3 Product Specifications ......4 Safety and Usage Information . -
Page 3: Device Components
Device Components Up Key Set Key LCD Display Down Key Electrodes Electrodes UNIT Button Battery Compartment List 1. Body Fat Analyzer GBF-943-A 2. 2xCR2032 Lithium Batteries (3V per each) 3. User Manual... -
Page 4: Product Specifications
Product Specfications • Dimension: Scale: 310x310x20.4mm (Approximately) • Capacity: 180kg / 397lb / 28st: 5lb • Weight Unit: kg / st: lb / lb • Minimal Weight: 5kg / 11 lb • Function Key: , SET, , UNIT • Display: Positive LCD •... - Page 5 Product Specfications (Cont.) LCD Display Body Fat Level: Low Percentage Body Fat Level: Normal Foot Body Fat Level: High Centimeter Body Fat Level: Very High Basal Metabolic Rate Male Target Weight Female Body Fat Analysis Result Male Athlete Total Body Water Analysis Result Female Athlete Muscle Mass Analysis Result User ID (Range from P1 to P10)
-
Page 6: Safety And Usage Information
CAUTION GoWISE USA Body Fat Scale GW22041/GW22042 offers you a seamless way to manage your health. Please be aware that this device is designed for adults’ self-measuring and self-monitoring body fat level. Any information provided by this device is in no way meant to treat, cure or prevent any disease or ill- ness from happening. -
Page 7: Safety Information
Saftey Information The GoWISE USA Digital Body Fat Scale GW22041, GW22042 offers a seamless way to manage your health. Please be aware that this device is designed for healthy individuals to self-measure and self-monitor body com- positions. This device is a personal monitor and should be used in a consistent manner for the most accurate measurements. -
Page 8: Gowise Body Fat Scale & You
GoWISE USA Body Fat Scale and Your Body How does the GoWISE USA Body Fat Scale Work? This scale uses Bioelectric Impedance Analysis (BIA) technology which passes a small electrical current through the body to estimate the body fat mass, total body water, muscle mass, and bone mass. - Page 9 GoWISE USA Body Fat Scale and Your Body (Cont.) Standard for Men Rating Body Fat Analysis (%): 5~60% 20-29 30-39 40-49 50-59 <14 <16 <18 <13 <17 Female Male 13-20 14-21 16-23 Normal Under Normal Over- Under Normal 18-25 Over-...
- Page 10 GoWISE USA Body Fat Scale and Your Body (Cont.) Important Note: Body Fat percentage will vary with the amount of water in the body and can be affected by dehydration or over- hydration. Both can occur with alcohol consumption, menstruation, illness, intense exercise, etc. Also, body fat percentage gives a better measurement of fitness than weight loss alone.
- Page 11 GoWISE USA Body Fat Scale and Your Body (Cont.) A guide to normal healthy range of total body water (TBW) percentage: FOR MEN: FOR WOMEN: If Body Fat (BF%) Optimal Total Body If Body Fat (BF%) Optimal Total Body range is:...
- Page 12 GoWISE USA Body Fat Scale and Your Body (Cont.) Bone Mass – Why measure it? Regular exercise and a balanced diet can help maintain healthy bones. Calcium and vitamin D (found in dairy products, green leafy vegetables, and fish) contribute to healthy bones.
-
Page 13: Setting Up Your Scale
Setting Up your Scale 1. Open the battery compartment found on the back of the scale. 2. Install the batteries and ensure that the +/- terminals are correct 3. Turn your scale over, the LCD display should show the picture below, then close the battery compartment. -
Page 14: Setting Up Your Profile
Setting Up your Profile 1. Place the scale on a flat hard ground. DO NOT PLACE THE SCALE ON AN UNEVEN OR CARPETED SURFACE. THE SCALE WILL NOT BE ACCURATE. 2. SET THE USER NUMBER Press “SET” to put the scale into Setting Mode. - Page 15 Setting Up your Profile (Cont.) 5. SET THE AGE Press “ ” or “ ” to set age. Press “SET” to confirm. 6. SET A TARGET WEIGHT Press “ ” or “ ” to set a target weight. Press “SET” to confirm. 7.
-
Page 16: A) Manually Selecting Profile
Manually Selecting a Profile 1. Place the scale on flat hard ground and press “SET” to turn it on. 2. Press “ ” or “ ”to find your user number. Press “SET” to confirm the user number. 3. Wait until the LCD displays zero then immediately step on the platform with bare feet. - Page 17 Manually Selecting a Profile (Cont.) 6. The results will show twice as well as the user’s profile information.
-
Page 18: B) Automatic Profile Measure
Automatic Profile Measure After going through steps 1-8 under “Setting up your Profile”, your profile should be saved under a user number. 1. Stand on the platform with bare feet. 2. Stand still and the scale will start measuring. You will see a moving “o”... - Page 19 Reviewing The Last Records 1. Press “SET” to turn the scale on. 2. Wait until the LCD displays zero then press “ ” or “ ” and select which user number you would like to view. The results will show three times. If there are no pieces of measuring results stored under a specific User ID, “...
- Page 20 Indication Message LOW BATTERY INDICATION. When “Lo” is shown, the scale will turn off after a few seconds and please change the batteries. OVERLOAD INDICATION. Remove the weight on the scale to protect the load cells. MEASURING ERROR INDICATION. The weight data will show only and the scale will turn off after a few seconds.
-
Page 21: Warranty
30 days from the day of purchase and DO NOT fall under the 1-year limited warranty of the unit. GoWISE USA® shall not be liable for loss of use or any other incidental, consequential or indirect costs, expenses or damages. There are no express warranties except as listed above. -
Page 22: Appendix
Appendix FCC User Guide Information Radio Frequency Interface Requirements - FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, under Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 23: Emc Guidance
Appendix EMC Guidance Table 1 Guidance and MANUFACTURER’s declaration – ELECTROMAGNETIC EMISSIONS- for all ME EQUIPMENT and ME SYSTEMS Guidance and manufacturer’s declaration – electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. -
Page 24: Trouble Shooting
Trouble Shooting When Measuring ... Problem Root Cause Solution Abnormal Please step on the platform Incorrect posture measuring results: barefooted and stand still. - Too high; OR - Too low; OR The device is located on - Huge difference Please place the device on a the soft ground such as a between two recent carpet OR on a rugged... -
Page 25: Notes
Notes... - Page 26 Notes...
- Page 27 Notes...
