Eaton ePDU G3 Manual

® ®
Eaton ePDU G3
Replace and Confi gure the eNMC Module
English
REPLACE THE MODULE REPLACE THE MODULE
This document contains instructions that you should follow during installation and
configuration of the Eaton ePDU Network Management and Control (eNMC) module.
Please read all instructions before installing or operating the equipment.
PRECAUTIONS PRECAUTIONS
Handle the eNMC module with care. Be aware that there is a risk of electrostatic
•
discharge (ESD).
As a preventive measure, wear ESD protection such as an ESD shoe strap while
•
replacing the eNMC module.
Do not put stress on the connection cable during installation.
•
The eNMC module is hot-swappable. This means that outlets are not affected by the
•
replacement. They do not change state (outlets do not turn Off if On).
1
R R P P
EPLACEMENT EPLACEMENT ROCEDURE ROCEDURE

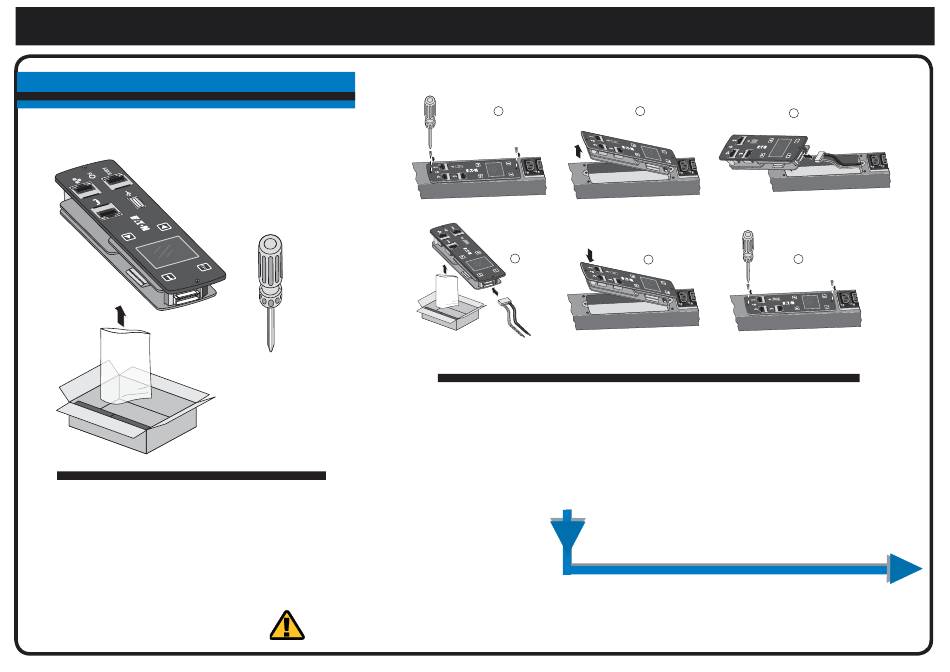

To replace the eNMC module:
1. Remove the two eNMC module mounting screws.
2. Tilt up one side of the eNMC module and locate the attached cable harness.
3. Disconnect the cable harness and remove the eNMC module.
4. Remove the new eNMC module from the box and unwrap it.
5. Connect the cable harness to the new eNMC module.
6. Reinsert the new eNMC module and reinstall the two eNMC module mounting screws.
7 . The new eNMC module will not have the same MAC address as the one you are replacing. Ensure the old MAC address label is
discarded and that new MAC address label is firmly adhered to the product.
N
ote: After the new eNMC module is connected, the "internal communication error" message displays until the configuration file is uploaded to the
eNMC module.
Read and understand safety and operating information before using this equipment.
2
4
5
C C
ONTINUE TO ONTINUE TO
3
6
C C P P
ONFIGURATION ONFIGURATION ROCEDURE ROCEDURE
