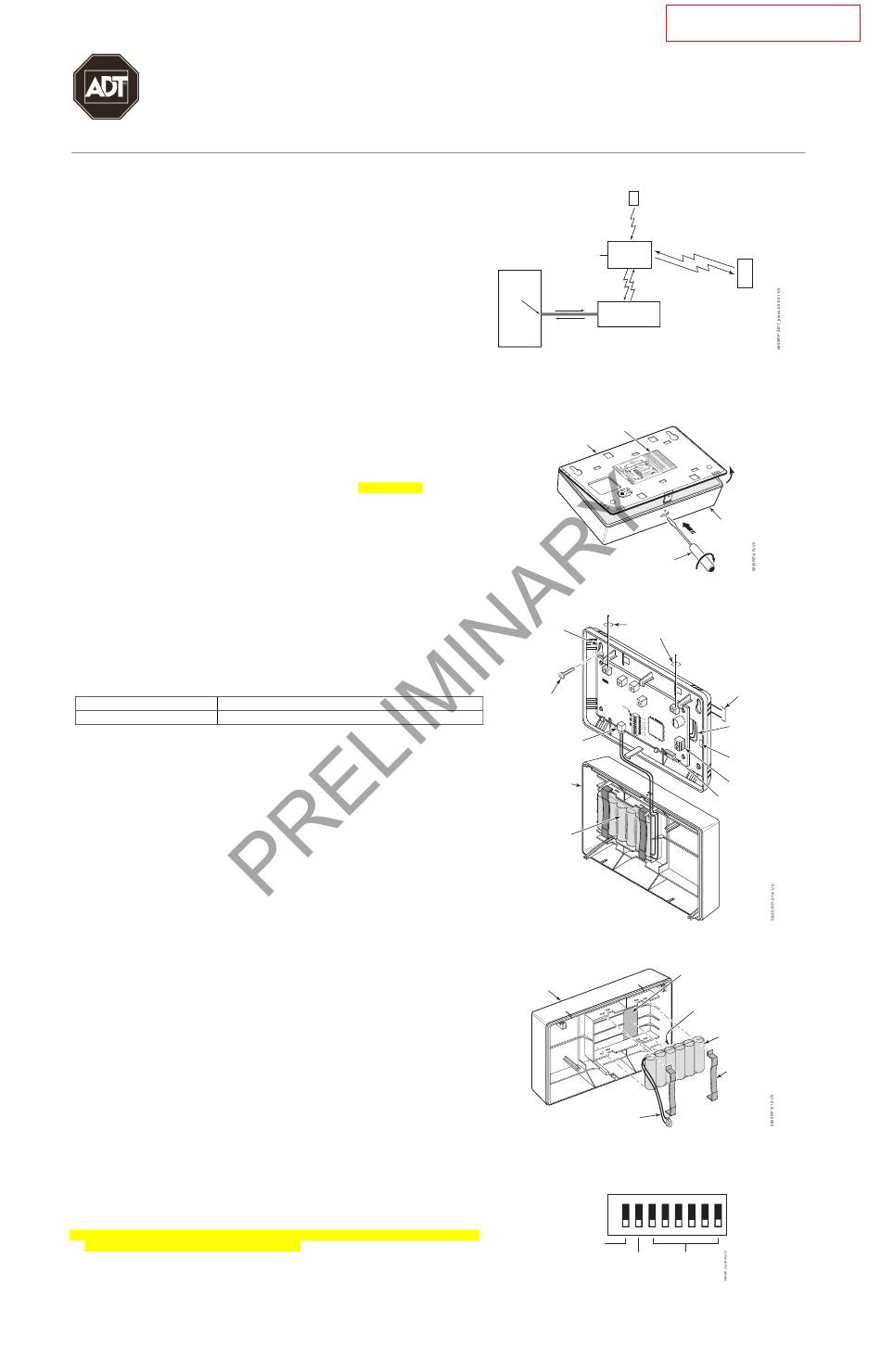

ADT 5800RP- Installation Instructions

INTRODUCTION
The 5800RP-ADT RF Repeater Module, with RF receiver and transmitter extends the range of 5800 series RF devices by 200 feet (nominal).
The 5800RP-ADT receives alarm, status, and control messages from 5800 series
•
devices, and forwards these messages to control panel connected receivers such
as the 5881EN, 6160RF, 6150RF, and LYNX controls. The control then responds
accordingly (arm/disarm the system, initiate an alarm, etc.).
The 5800RP-ADT also transmits its own status including tamper, AC loss and RF
•
jam detect via a built-in serial number assigned to a control panel zone(s). Status
is sent whenever a change occurs or as part of a supervisory check-in message
sent approximately once an hour.
The 5800RP-ADT contains a rechargeable battery that provides up to 6 hours of
•
standby operation after primary power is lost.
The 5800RP-ADT features a Spatial Diversity system that virtually eliminates the
•
possibility of "Nulls" and "Dead Spots" within the coverage area.
INSTALLING THE 5800RP-ADT MODULE
Mount the 5800RP-ADT remotely in its own housing following the steps below, and avoid mounting the module with its antennas touching a metal surface.
Check for RF Interference: Before mounting permanently, use the red RF Interference
LED to check for strong local radio frequency interference at the intended mounting
location. If this LED is continuously lit, the 5800RP-ADT module should be relocated.
Removing the Cover: Remove the 5800RP-ADT's cover by inserting and twisting a
screwdriver blade. See Figure 2.
Note: Removing the cover places the 5800RP-ADT in the Go/No Go Test mode. This
decreases its range during installation to insure an adequate margin during normal
operation.
Mounting the Module
1. For concealed wiring, route power wires through the rectangular opening at the rear of
the base before mounting. See Figure 3.
For surface wiring entry, a thin breakaway area is provided along the base's right edge.
2. Mount the module in the selected location. For greatest security, use all four mounting
holes (two key slot holes and two round holes) in the plastic base.
3. Install each antenna in the respective right-hand terminal of the two terminal blocks at
the upper edge of the 5800RP's circuit board, and tighten the screws to secure them.
4. Affix the Summary of Connections label to the outside back cover. See Figure 2.
5.
If applicable, set the Site ID by referring to the Setting the Site ID section below.
Connecting the Power Supply
The 5800RP-ADT is powered from an AC external power source connected to terminals 1
and 2. See Figure 2.
Power source ratings are as follows:
Type Rating
Class 2 AC Transformer 9VAC, 15VA (Honeywell PN 300-07753)
6. Connect the transformer to the 5800RP-ADT's terminals. Refer to Figure 3. These
terminals are not polarized. The leads from AC transformer may be connected to either
terminal. Do not connect to a receptacle controlled by a switch.
NOTE: Use of power sources with higher or lower voltages may result in damage or failure
to operate properly. Non-Honeywell power supplies may have connectors installed. Remove
the connectors prior to attempting to connect power supply to 5800RP-ADT.
Connecting the Battery
7. Plug the battery cable into the battery connector on the 5800RP-ADT PCB. See Figure 3.
CHARGING NOTE: The battery must be allowed to charge for at least 48 hours to reach
full capacity.
8.
Replace the cover on the 5800RP-ADT, being careful not to pinch the battery wires
between the cover and case or any PCB components.
Replacing the Battery
1. See removing the cover above.
2. Unplug the battery cable from the 5800RP-ADT PCB.
3. Remove the retaining clips and pull up old battery.
4. Affix one side of the fastener strip in the battery compartment, if required and affix the
other side of the fastener strip to the battery so they are aligned.
Firmly press the battery's fastener strip to the fastener strip in the compartment and
5.
secure using the two retaining clips.
6.
Connect the battery. See Step 7 above.
SETTING THE SITE ID
Some wireless devices (e.g., 5828) use a programmed house ID to help avoid
communication conflicts with nearby installations. The 5800RP-ADT automatically passes all
house ID information to the appropriate receiver.
Certain wireless devices use a "Site ID" instead of a House ID. The Site ID is a factory-
assigned, unique serial number built into each TS BASE console, and must be entered into
each device that uses it. The Site ID provides many more combinations than a House ID,
and therefore is less likely to have conflicts with nearby installations.
When using the 5800RP-ADT with wireless devices that use a Site ID, follow the steps
below to enter the Site ID in the 5800RP-ADT. This procedure assumes that all such
devices have been successfully set-up and tested with the TS BASE, although they may not
yet be mounted in their final locations.
1. Put the TS (Total Security) control in test mode by pressing "123451" on the keypad.
Keypad displays "test in progress".
2. Remove the 5800RP-ADT's cover. See "Removing the Cover" section above.
3. Temporarily disconnect the power supply and battery from the 5800RP-ADT.
4. Place DIP switch 1 in the ON position.
5. Reconnect the power supply to the 5800RP-ADT. Observe that the red LED on the
5800RP turns on and remains on. This indicates that the 5800RP-ADT is ready to set the
Site ID.
6. Continue pushing the * button on the keypad for intervals of approximately 2 seconds
until the red LED on the 5800RP-ADT turns off.
7. When the red LED turns off, this indicates the Site ID has been saved in the 5800RP-ADT
and will no longer accept the Site ID. If the LED does not turn off, repeat the previous
step until it does.
8. Place DIP switch 1 in the OFF position.
9. Replace the cover on the 5800RP-ADT.
10. If needed locate the other wireless devices in their final locations.
11. Test all wireless devices.
5800RP-ADT RF Repeater Module
POWER IN
CONTROL
PANEL*
KEYPAD
TERMINALS
ON CONTROL
BOARD
DATA OUT
DATA IN TO
CONTROL
*CONTROL MUST SUPPORT A 5800 SERIES RF SYSTEM
Wireless System Overview using
5800RP-ADT Repeater Module
BACK COVER
Figure 2: Removing the Cover
MOUNTING
HOLES
(4)
MOUNTING
SCREWS
(4)
BATTERY
CONNECTOR
FRONT
COVER
BATTERY
PACK
Figure 3: Mounting the Module
FRONT
COVER
Figure 4: Replacing the battery
SW-1
USED WHEN
ENROLLING
SITE ID;
OTHERWISE
MUST BE OFF
Figure 5: 5800RP-ADT DIP Switch
AGENCY STATEMENTS ARE
ON PAGE 2
Installation Instructions
5800 SERIES
WIRELESS TRANSMITTER
2-WAY
WIRELESS KEYPAD
(e.g. 5828)
OR
5800RL 2-WAY RELAY
5800RP-ADT
MODULE
REPEATER
MODULE
2-WAY
TRANSMISSION
RECEIVER/
TRANSCEIVER
Figure 1.
SOC LABEL
REMOVE
BACK
COVER
FRONT COVER
INSERT SCREWDRIVER
ANTENNAS
(INSERT IN RIGHT-HAND
TERMINALS)
R F
TO POWER
IN T
R E E R
D IN F E
R E
D IC
N C SUPPLY
A T
E
O R
L IG
H T
S R
E D
W H
S E E N
T T
IN G O N
S IT
E ID R E D
O F
F
Y E
L
G R
WIRING
N
OPENING
KNOCKOUT
AREA FOR
SURFACE
WIRING
POWER
TERMINALS
TAMPER
SWITCH
FASTENER STRIP
FASTENER STRIP
(ON BATTERY)
BATTERY
PACK
RETAINING
CLIPS (2)
BATTERY
CABLE
ON
1 2 3 4 5 6 7 8
TROUBLE 3 - 8
NOT USED
REPORTING
OPTION MUST BE OFF
OFF = COMBINED
ON = INDIVIDUAL
