ADT TSSBU111011U Installation And Setup Manual

EXHIBIT 7B CFS8DLTSSCBASE / 573F-TSSCBASE

TSSC Installation and Setup Guide

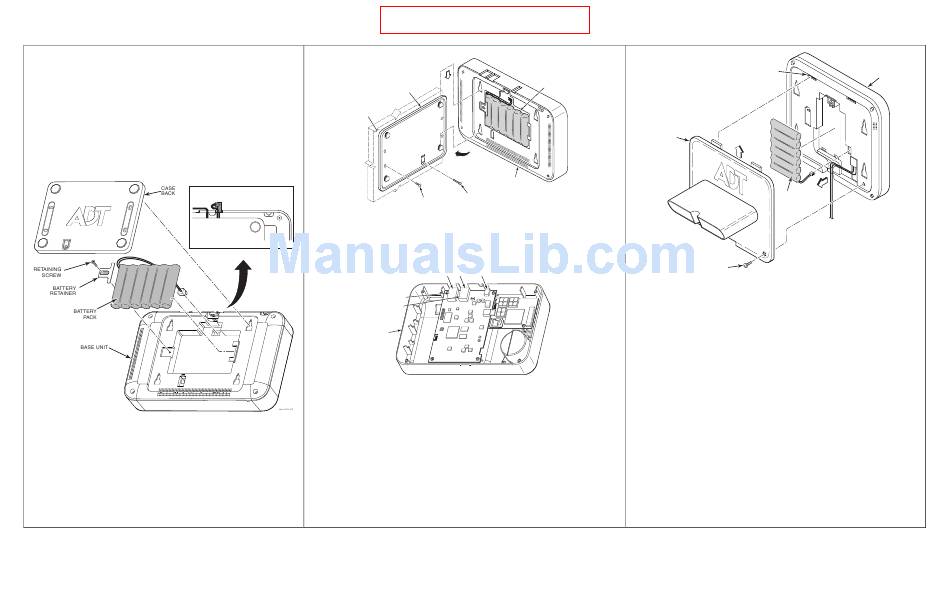

STEP 1 - Installing the Base (TSSBU111011U) Rechargeable
Backup Battery and Power Connector
1
.
Remove the Base Case Back.
2. Connect the battery connector to the receptacle on the PC board.
3. Insert the Battery Pack into the case.
4. Secure the Battery Pack with the Battery Retainer using the Retaining Screw.
5. Connect the power pack into the power receptacle, looping the power cord as
shown in Detail A.
NOTE: If using the optional wall mount configuration, skip to the Base wall
mounting procedure. If not, complete step 6.
6. Secure the Case Back onto the Base.
NOTE: Do not apply power at this time.
DETAIL A

Mounting the Base to a Wall (Optional)

To mount the Base to a wall, perform to the following:
IMPORTANT: Record the ACTIVATION KEY number, MAC Address, CRC
number and WPA2 number located on case back prior to wall mounting.
1. Complete steps 1 through 5 of the Installing the Base Rechargeable Backup
Battery and Power Connector paragraph
2. Secure the Mounting Plate to the wall and secure with 4 screws.
3. Install the Tamper Screw as shown.
4. Secure the Base to the Mounting Plate by aligning the slots on the Base and
sliding the unit down until locked in position.
Ê800-13956V1oŠ
800-13956V1 11/13 Rev. A
PLEASE GO TO THE BOTTOM OF THE NEXT
PAGE FOR FCC / IC AGENCY STATEMENTS.
ENGAGE HOOKS
AND SLIDE DOWN
(4)
WALL
MOUNTING
PLATE
WALL
SURFACE
TAMPER
SCREW
SECURE CASE BACK
USING MOUNTING
SCREWS (TYP - 4 PLACES)

STEP 2 - Setting up the Communication Links

Prior to power up of the Base (when directed in the TSSC Installer App), the Ethernet
communications link must be connected to the residence's router. The connection is from an
Ethernet port on the router to the "ETH0" port on the Base.
IMPORTANT! Under no circumstances should the "ETH1" port ever be connected to the
residence's router.
TO POWER
ETH1 ETH0 RECEPTACLE
FOR INSTALLER
USE ONLY
TO/FROM
RESIDENCE
ROUTER
ETHERNET
PORT
BASE
UNIT

STEP 3 - Keypad (TSSKP112011U) Mounting

The keypad is designed to be placed on a desk/table top with the stand attached. An optional
mounting plate can be used to mount the keypad to the wall.

Power Connections

Connect the Power Supply Cable into its connector as shown below and route it from the bottom
of the keypad.
IMPORTANT: Do not apply power to the keypad at this time.

Installing Keypad To Desk-Top Stand

1. Place the Keypad face down on a level surface.
2. Connect the battery connector to the receptacle on the PC board.
3. Insert the Battery Pack into the case.
4. Secure the Battery Pack with the Battery Retainer using the Retaining Screw.
5.
Install tabs on Desk Stand into appropriate slots as shown and secure with two screws
6.
Plug in the power pack to the receptacle.
1
BATTERY
PACK
DESK
STAND
REAR OF
Base Unit
tssc-015-V0

STEP 4 - Base Registration and Accessing The Installer App

Run TSSC Installer App:
Go to https://portal-test.adtpulse.com/activation

Powering the Base

When directed in the TSSC Installer App, plug the power pack into
receptacle to power the Base. During the first 45 seconds of power initialization, TSSC
lights up the CELLULAR, NETWORK and STATUS LEDs one by one slowly in sequence.
After the first 45 seconds, the LEDs chase in a rapid sequence for approximately 30 more
tssc-021-V0
seconds. The POWER LED is always ON while initialization is being executed. When the
LEDs stop chasing and the POWER LED is lit green, the Base is powered up and ready
for the registration process to begin.
NOTE: The BATTERY LED will blink until the battery is fully charged.
NOTE: The NETWORK LED will remain amber until activated.

Radio Activation

https://portal-test.adtpulse.com/activation
Go to
SLOT
(TYP)
Keypad
SLIDE TABS
UP INTO
SLOTS
BATTERY
PACK
POWER
SUPPLY
CABLE
SECURE WITH
SCREWS (2)
(TYP)
and follow the prompts
the wall
and follow the prompts
tssc-011-V1
.
.
