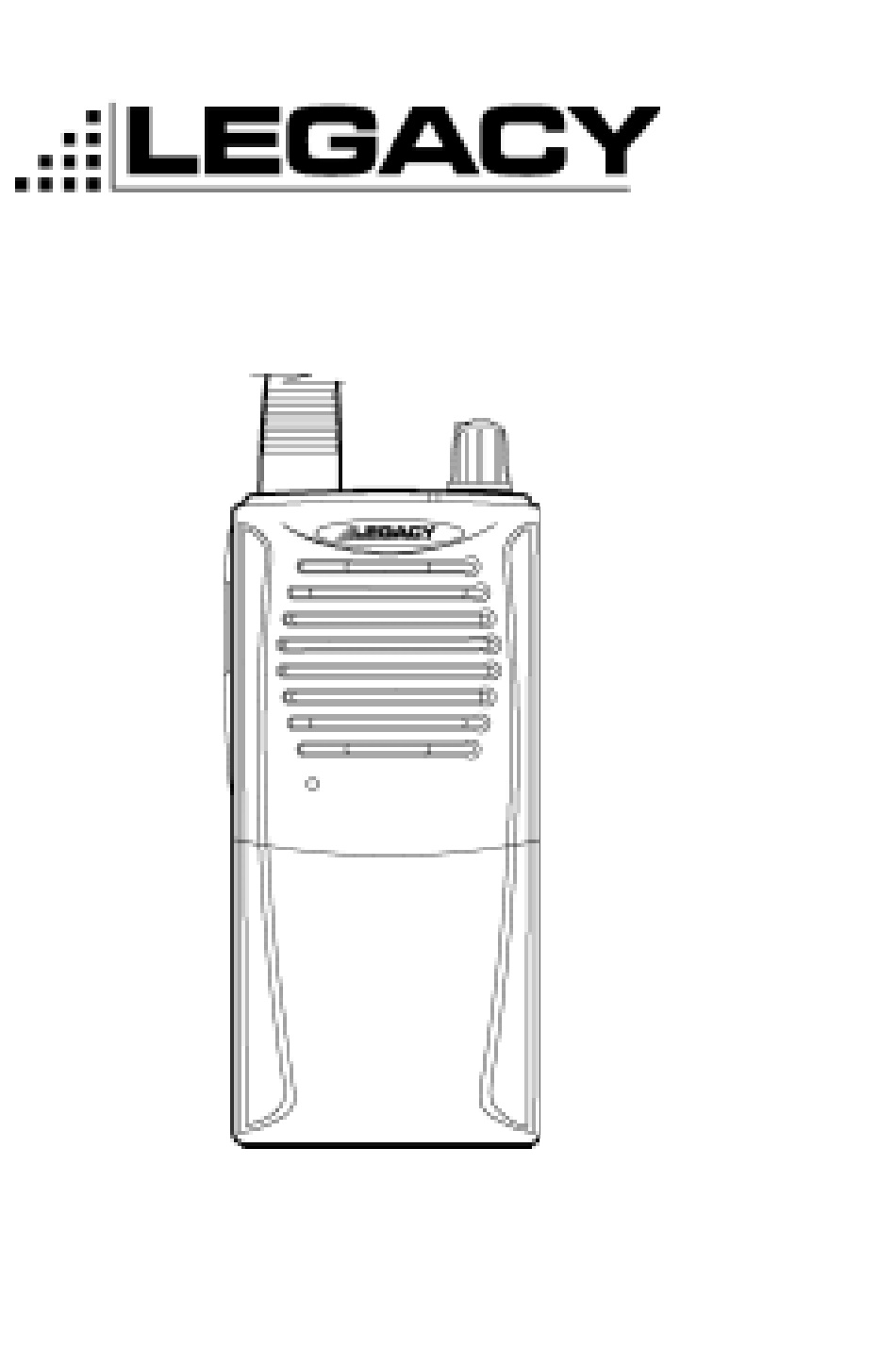

ProLine Series
PL1145
Operating Instructions

Advertisement

Table of Contents
loading

Related Manuals for Legacy ProLine Series

Summary of Contents for Legacy ProLine Series

  • Page 1 ProLine Series PL1145 Operating Instructions...
  • Page 3 About Topaz3 Topaz3 is the exclusive supplier of Maxon , Legacy and ® TruTalk brand communication products. Our product line ranges from FCC licensed two-way radios suitable for Business and Industry (B&I) markets like farm, government, law enforcement, utility, etc. to consumer recreational and light-duty business markets.

  • Page 4: Table Of Contents

    Table of Contents / Contenido FCC RF Exposure Compliance Requirements - for Occupational Use Only....1 Requerimientos de Obediencia a la Exposici n de RF del FCC - para uso ó Ocupacional Solamente ......46 Unpacking and Checking Equipment..3 Desempaque y Verificación del Equipo...27 III.
  • Page 5 Licencia de la FCC ....... Safety Information ......Información de Seguridad ..........Service ............Servicio XII. Maintenance.........21 XII. Mantenimiento..........49 XIII. Software Copyrights.......22 XIII. Derechos de Propiedad Literaria del Software...50 XIV. Topaz3 / Legacy Product Warranty..23 XIV. Garantía del Producto de Topaz3 / Legacy..51...

  • Page 6: Fcc Rf Exposure Compliance Requirements - For Occupational Use Only

    Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. Topaz3 / Legacy subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user...
  • Page 7 I. FCC RF Exposure Compliance Requirements - for Occupational Use Only, continued • ALWAYS use Maxon, Legacy and TruTalk authorized accessories: antennas, batteries, belt clips, speaker mics, etc. • Failure to observe these restrictions will result in exceeding the FCC RF exposure limits.

  • Page 8: Unpacking And Checking Equipment

    II. Unpacking and Checking Equipment Carefully unpack the radio and its accessories. Use the item list below to identify the components included in the product packaging, to ensure that no items are discarded in the packing materials. Radio Body Antenna Battery Charger (with plastic spacer) AC Adapter NiMH Battery Pack...

  • Page 9: Getting Started

    III. Getting Started Charging the NiMH Battery Pack You will need to charge the battery pack fully before initial use. For best results from your charging cycle, follow these tips: Ensure the ambient temperature is between 41 and • 104 °F (5 and 40°C) while charging. Temperatures outside this range may not fully charge the battery.
  • Page 10 III. Getting Started, continued Charging the NiMH Battery Pack, continued NOTE: The first few uses from the battery will not be at “normal” capacity. After repeating the charge / dis- charge cycle two or three times, the battery capacity will increase to provide full capacity. 1.

  • Page 11: Attaching And Removing The Battery Pack.6

    III. Getting Started, continued Attaching and Removing the Battery Pack After recharging the battery pack, remove it from the charger. Charging the battery pack for more than 5 days may reduce the battery pack life. The battery pack life is over when its operating time decreases even though it is fully and correctly charged.

  • Page 12: Installing The Antenna

    III. Getting Started, continued Installing the Antenna Screw the antenna into the connector on the top of the radio by holding the antenna at its base and turning it clockwise until seated. Do not overtighten. The antenna should never be used to carry your radio, or as a base to clip radio accessories.

  • Page 13: Attaching The Optional Speaker Mic

    III. Getting Started, continued Attaching the Optional Speaker Microphone 1. Insert the speaker microphone jack into the radio. 2. Use the thumbscrew attachment on the speaker microphone to make connection to the radio. NOTE: The radio is not fully water resistant while the speaker microphone is attached.

  • Page 14: Control Buttons / Operation Features

    IV. Radio Control Buttons / Operation Features A) Push-To-Talk (P-T-T) button (left side of radio) Press and hold while speaking into the radio mic- rophone, release to listen to incoming messages B) Monitor button (left side of radio) Press and hold to turn radio squelch off. Release to turn squelch back on.

  • Page 15: Radio Operation

    V. Radio Operation Power On / Transmit Power on the radio by turning the power / volume control clockwise out of detent. You will hear a confirmation tone on power-up. To adjust radio volume, press and hold the monitor button then rotate the control further clockwise.

  • Page 16: Channel Frequency Selection

    V. Radio Operation, continued NOTE: The channel in use may have been programmed with a signaling code. Refer to “CTCSS Tone Signaling” on page 13. Channels are pre-programmed with frequencies and CTCSS tones. Refer to “Factory Default Channel Settings” on page 18. VI.
  • Page 17 VI. Channel Frequency Selection, continued Action Channel No. Color Beep Pattern Frequency (MHz) Press P-T-T 1 time (single beep) 1 464.5000 Brown Press P-T-T 2 times (two beeps) 2 464.5500 Yellow Press P-T-T 3 times (three beeps) 3 467.7625 J Press P-T-T 4 times (four beeps) 4 467.8125 K Press P-T-T 5 times (five beeps)

  • Page 18: Ctcss Tone Signaling

    VI. Channel Frequency Selection, continued Example of setting a channel to frequency no. 5: After entering frequency setup mode, press the P-T-T bar 5 times to select frequency 5 (Silver Star). A beep sounds with each P-T-T press. Wait for 2 seconds to hear the beep pattern of the frequency number.

  • Page 19: Ctcss Tone Setup

    VII. CTCSS Tone Signaling, continued No. Freq. No. Freq. No. Freq. No. Freq. 01 67.0Hz 14 107.2Hz 167.9Hz 40 159.8Hz 02 71.9 15 110.9 173.8 41 171.3 03 74.4 16 114.8 179.9 42 177.3 04 77.0 17 118.8 186.2 43 183.5 05 79.7 18 123.0 192.8...
  • Page 20 VIII. CTCSS Tone Setup, continued NOTE: Read all steps before attempting this process, as the radio will exit the setup mode if keypresses are not performed within 5 seconds. 1. Press and hold the P-T-T bar and monitor bar, then turn the radio power ON.
  • Page 21 VIII. CTCSS Tone Setup, continued 4. Listen for the beep pattern of the 10’s digit number you selected. This takes approximately 2 seconds. 5. Press the P-T-T bar to select the 1’s digit of the signaling number. Each time you press the P-T-T bar, a beep sounds and the 1’s digit of the sig- naling number changes.

  • Page 22: Channel Setting Confirmation

    VIII. CTCSS Tone Setup, continued 8. Press the monitor bar again to confirm the beep pattern of the selected signaling number. Example of setting up a channel with CTCSS tone no. 01: After entering CTCSS setup mode, press and hold the P-T-T bar until a 1-second tone sounds. To select 0 for the 10’s digit, hold the bar for 2-3 seconds.

  • Page 23: Ctcss Tone Confirmation

    IX. Channel Setting Confirmation, continued Frequency Confirmation, continued [i.e.- If frequency 3 (Color J) is set up on the channel, 3 short beeps will sound.] CTCSS Tone Confirmation NOTE: There will be a short pause between the confirmation of the 10’s digit and the confirmation of the 1’s digit.

  • Page 24: Radio Functions

    X. Radio Functions Time-out-Timer (TOT) The purpose of the time-out-timer is to prevent any single person from using a channel for an extended period. If you continuously transmit for 3 minutes, the radio will stop transmitting. A tone will sound with each P-T-T bar press until the 5-second TX inhibit time expires.

  • Page 25: Licensing, Safety And Service Information

    Part and / or Parts of the FCC Rules and Regulations. Consult with your Topaz3 / Legacy radio communi- cations Dealer, or contact the nearest FCC Field Office for information about obtaining a license.

  • Page 26: Service

    / or improper operation may result. There are no serviceable items inside the radio. It is recommended that you return the radio to a qualified Topaz3 / Legacy radio communications Dealer for any service or repairs. XII. Maintenance...

  • Page 27: Software Copyrights

    XIII. Software Copyrights The Topaz3 / Legacy products described in these operating instructions may include copyrighted Topaz3 / Legacy software programs stored in semi- conductor memories or other media. Laws in the United States and other countries preserve for Topaz3 /...

  • Page 28: Topaz3 / Legacy Product Warranty

    This warranty is offered to the initial end user and is not assignable or transferrable. Topaz3 is not responsible for any ancillary equipment which is attached to or used in connection with Topaz3 / Legacy products. If the Product fails to function under normal use because of manufacturing defect(s) or workmanship during the warranty period above, it will be replaced or repaired at Topaz3’s option at no charge when returned to...
  • Page 29 XIV. Topaz3 / Legacy Product Warranty, con’t similar or higher-featured product. Repair may include the replacement of parts or boards with functionally equivalent reconditioned or new parts or boards. Replaced parts, accessories, batteries or boards are warranted for the balance of the original time period. All replaced parts, accessories, batteries or boards become the property of Topaz3, LLC.
  • Page 30 Supplier of Maxon , Legacy ® and TruTalk Communication Products Topaz3, LLC 10828 NW Air World Drive Kansas City, Missouri 64153 www.topaz3.com Toll free: 800-821-7848 816-891-6320 Printed in Korea Part No.: 680-090-2018, Rev. A...
