Legacy ML3215 Operating Manual

Hide thumbs Also See for ML3215:
Table of Contents

Advertisement

Quick Links

Download this manual
ProLine
Series
ML3215 /
ML3245
Operating

Advertisement

Table of Contents
loading

Related Manuals for Legacy ML3215

Summary of Contents for Legacy ML3215

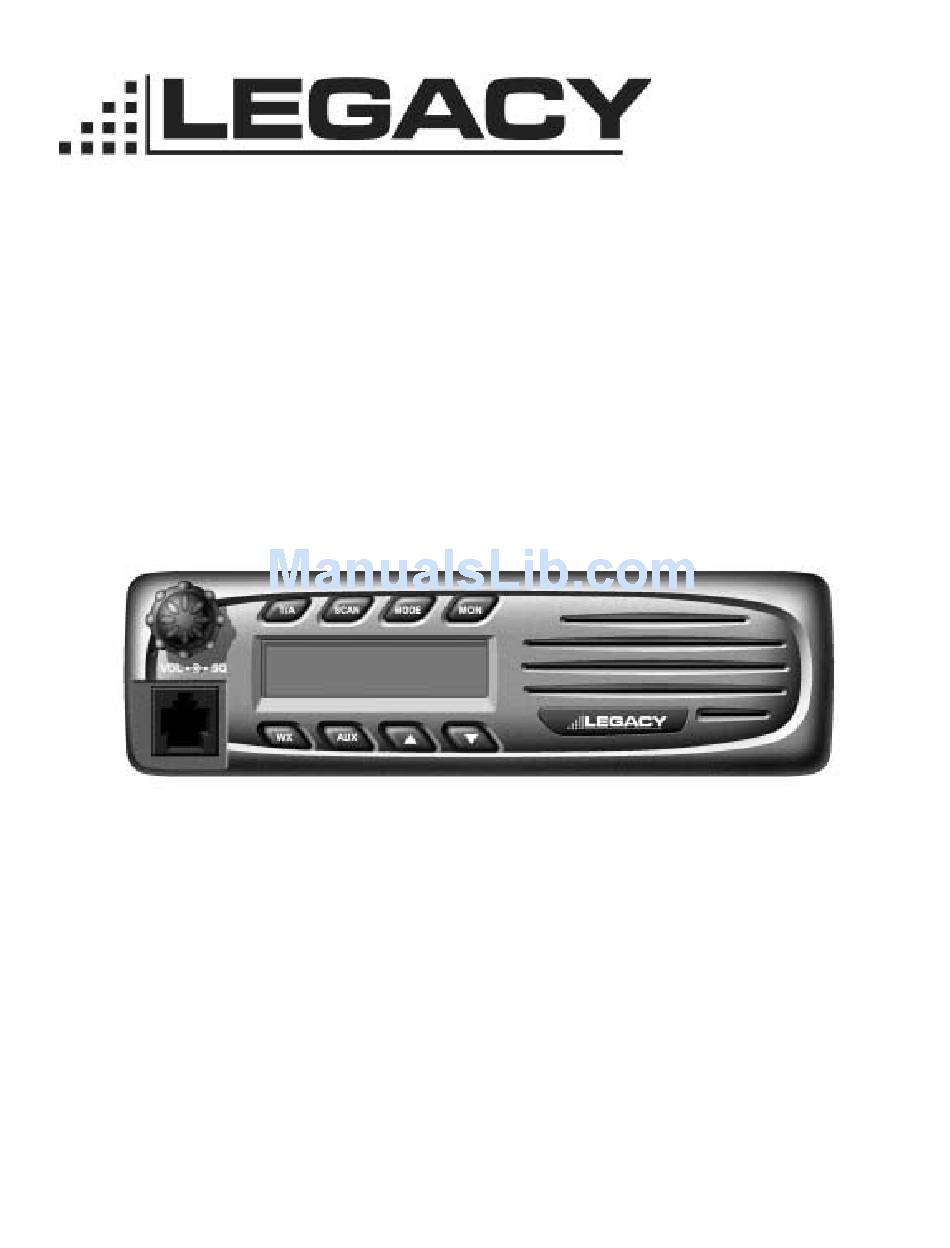

  • Page 1 ProLine Series ML3215 / ML3245 Operating...

  • Page 2: Table Of Contents

    Table of Contents FCC RF Exposure Compliance Requirements - for Occupational Use Only..……… Safety Information.........……………………………………………………….. About Topaz3...........…………………………………………………….. About Your Legacy ProLine Radios.....…………………………………………………… Unpacking and Checking Equipment..…………………………………………………… Radio Control Buttons / Operation Features..……………………………………………. ….. 3 Radio Operation........……………………………………………………… Power On / Transmit.......……………………………………………………….

  • Page 3: Fcc Rf Exposure Compliance Requirements - For Occupational Use Only

    You can cause the radio to transmit by pressing the P-T-T button on the radio’s microphone. CAUTION - DO NOT operate the transmitter of ML3215, ML3245 mobile radios when someone (bystanders) outside the vehicle is within 47.7 inches (121 cm) of the antenna.

  • Page 4: About Topaz3

    For additional information on our product line, visit our website: www.topaz3.com About Your Legacy ProLine Radio The Legacy ProLine models ML3215 (VHF) and ML3245 (UHF) are fully programmable, synthesized radios featuring: • 32 Channels of operation • 8-Character alphanumeric display •...

  • Page 5: Radio Control Buttons / Operation Features

    Mounting hardware Mounting Bracket Operating Instructions Radio Control Buttons / Operation Features Radio Front A. Power / volume control - Powers radio on and adjusts radio volume. B. Squelch control – adjust radio carrier squelch setting. C. Microphone jack – Attaches standard microphone or optional DTMF microphone. D.

  • Page 6: Radio Operation

    Backlit LCD Features A. 8-Character alphanumeric display - Shows current channel setting, CTCSS or DCS tone code setting, and other function indicators. B. Transmit (TX)) indicator C. Receive (RX) indicator D. Voice Operated Transmission (VOX) indicator - Shows VOX operation is active, allowing hands-free radio transmissions E.

  • Page 7: Radio Functions

    Radio Functions Tone Signaling To help block out unwanted calls to your ProLine ML3215 / ML3245 can be programmed to look for privacy tones. Scan Modes Scanning is a Dealer programmable feature that allows you to monitor a number of channels. Your radio communications Dealer will help you define a scanning mode and your channel "scan list".

  • Page 8: Two-Tone Decode

    Press the P-T-T bar after the TX inhibit time expires to resume transmitting. Two-Tone Decode Each channel can be programmed with two-tone decode selections: Individual Call, Group Call and Super Group Call. Your radio communications Dealer can program your radio(s) for this feature. To activate or reset the two-tone decode, press and hold the AUX button for 3 seconds.
  • Page 9 , and Scroll through the sub-menu settings with the up or down buttons. To enter a sub-menu, press the MODE button when the desired sub-menu appears on screen. settings include: You can toggle between these settings with the up or down buttons. When the desired setting appears on screen, press the MODE button.
  • Page 10 If you choose the IDCS tone code setting, you will need to use the up or down buttons to select the desired tone code of 105 available. If you choose IDCS code 023, your display will read: If you choose IDCS code 754, your display will read: When the desired IDCS tone code appears on the display, select and set your choice by pressing the MODE button or the P- T-T.
  • Page 11 display appears. Press and release the MODE button again to select. Scroll through the sub-menu settings with the up or down buttons, press the MODE button when appears on screen. Settings include: You can toggle between these settings with the up or down buttons. When the desired setting appears on screen, press the MODE button to select.

  • Page 12: System Option Settings Menu

    Tx Output Power High/Low Power High/Low Normal Scan On/Off Normal Scan List Priority Scan List Priority Scan On/Off 2-Tone Option Individual Tone On/Off On/Off Group Tone On/Off Super Group Tone System Option Settings Menu To enter the System Option Setting Menu, press and release the MODE button during the receive or standby mode, then use the up or down buttons until appears.
  • Page 13 If you choose the Busy Channel Lockout setting, your choices include: . Toggle between the settings with the up or down buttons. When the desired setting appears on screen, press the MODE button. Your radio will save your On or Off selection and return to standby mode. NOTE: If you select “On”, and the channel is busy, it will inhibit transmission.
  • Page 14 If you choose the Clear To Talk setting, your choices include On or Off settings. You can toggle between these settings with the up or down buttons. When the desired setting appears on the display, press the MODE button to select. The radio will save your selection and return to standby mode. Example of display: NOTE: If you select On, the radio issues a beep tone when pressing the P-T-T button, letting you know that speaking may begin.

  • Page 15: Display Option Settings Menu

    Time Out Timer TOT Off TOT Penalty Penalty On 1 ~ 100 sec Penalty Off Busy Lock Busy Lock On/Off Marked Idle Marked Idle On/Off Scan Set Scan Mode Normal Scan Tx Priority Scan Tx Priority Select Scan Priority Only Tx Scan Speed Time 50 ~ 500 msec Scan Delay Time...

  • Page 16: P/A Option Settings Menu

    You can toggle between these settings with the up or down buttons. When the desired setting appears on screen, press the MODE button to select. If you select , your choices will include: (Name, Channel Number and Frequency). You can toggle between these settings with the up or down buttons. When the desired setting appears on the display, press the MODE button to view the current information for that setting.

  • Page 17: Licensing And Service Information

    It is recommended that you return your radio to a qualified radio communications Dealer for any service or repairs. Maintenance Your Legacy radio is designed to be maintenance free. To keep it in good working condition:...

  • Page 18: Software Copyrights

    Topaz3, LLC. Furthermore, the purchase of Topaz3 / Legacy products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Topaz3, LLC, except for normal non- exclusive, royalty-free license to use that arises by operation of law in the sale of a product.
  • Page 19 FOR ANY PRODUCT WHICH DOES NOT COMPLY WITH THE WARRANTY SPECIFIED, THE SOLE REMEDY WILL BE REPAIR OR REPLACEMENT. IN NO EVENT WILL TOPAZ3 BE LIABLE TO THE BUYER OR ITS CUSTOMERS FOR ANY DAMAGES, INCLUDING ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, OR FOR THE LOSS OF PROFIT, REVENUE OR DATA ARISING OUT OF THE USE OF OR THE INABILITY TO USE THE PRODUCT.

This manual is also suitable for:

Ml3245
