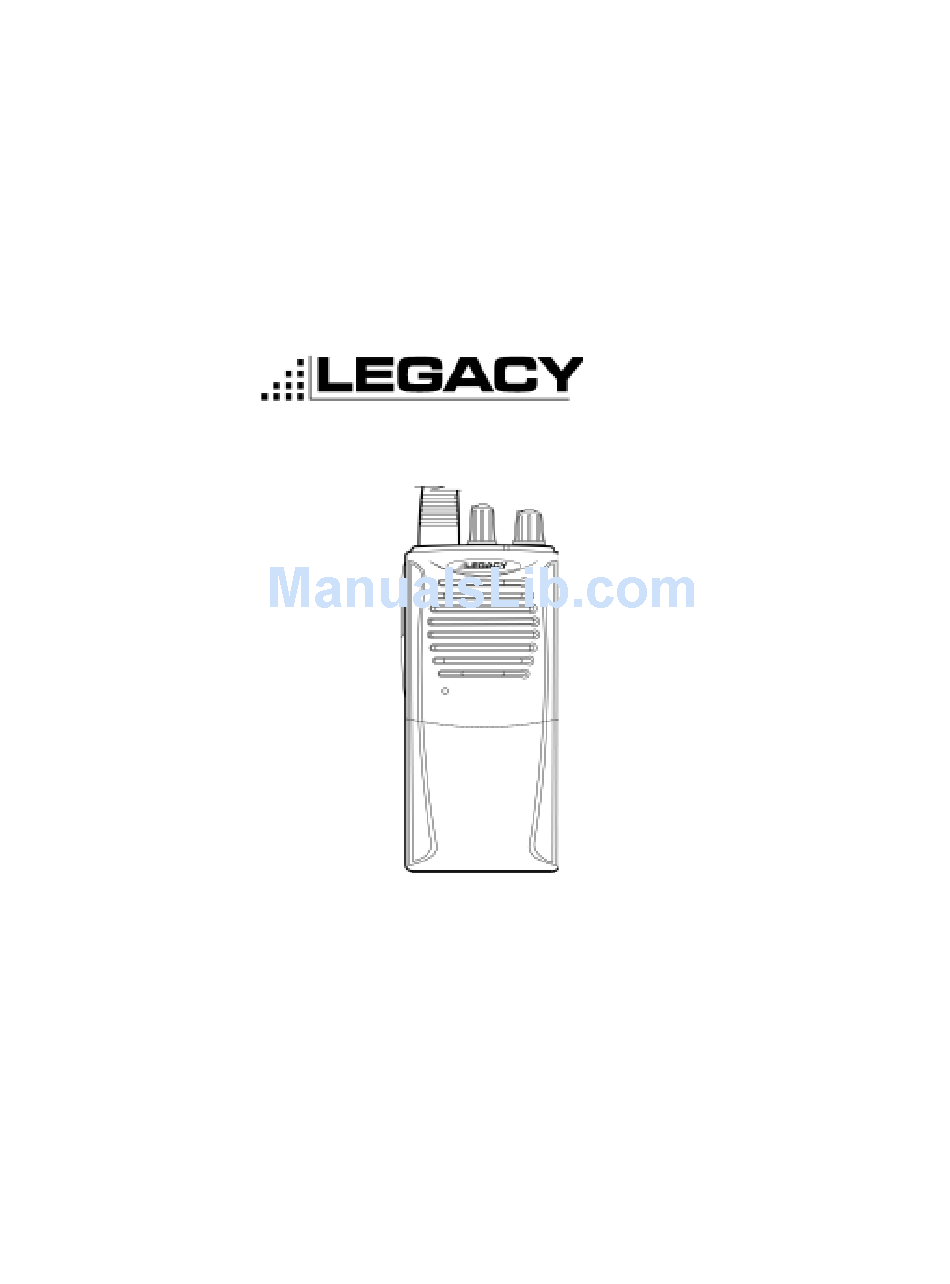

- Page 1 ProLine Series PL2215 / PL2415 Operating Instructions...
-
Page 2: About Topaz3
ABOUT Topaz3 Topaz3 is the exclusive supplier of Maxon Legacy and Tru Talk brand communication products. ®, Our product line ranges from FCC licensed two-way radios suitable for Business and Industry (B&I) markets like farm, government, law enforcement, utility, etc. to consumer recreational and light-duty business markets. - Page 3 Busy Channel Lockout Marked Idle TX delay Time-Out-Timer (T-O-T) Time-Out-Timer Penalty Battery Save Low Battery Warning Two-tone Decode I . Licensing, Safety and Service Information FCC Licensing Safety Information Service X. Maintenance I. Software Copyrights II. Topaz3 / Legacy Product Warranty...
- Page 4 Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. Topaz3 / Legacy subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user exposure far below t h e Occupational Safety and Health Act (OSHA) and Federal Communications Commission limits.
- Page 5 . Unpacking and Checking Equipment Carefully unpack the radio and its accessories. Use the item list below to identify the components included in the product packing, to ensure that no items are discarded in the packing materials. Radio Body Antenna Battery Charger (with plastic spacer) AC Adapter NiMH Battery Pack...
-
Page 6: Important Note
. Getting Started Charging the NiMH Battery Pack You will need to change the battery pack fully before initial use. For best results from your charging cycle, follow these tips: Ensure the ambient temperature is between 41 and 104 (5 and 40 ) while charging. Temperatures outside this range may not fully charge the battery. - Page 7 Average battery pack life from the supplied 750 mAh battery is 11+ hours; the optional 1350 mAh battery, 19+ hours. This service time is calculated using 90% standby, 5% transmit and 5% receive time. After charging the battery pack as described, you are ready to install it to the radio body. Simply; Match the four grooves of the battery pack with the guides on the back of the radio.
- Page 8 . Radio Control Buttons / Operation Features A) Push-To-Talk (P-T-T) button (left side of radio) press and hold while speaking into the radio microphone, release to listen to incoming messages. B) Monitor button (left side of radio) Press and hold to turn radio squelch off. Release to turn squelch back on. C) Microphone (front of radio ) D) Speaker (front of radio) E) Channel switch (top panel of radio)
- Page 9 . Radio Operation Power On / Transmit Power on the radio by turning power / volume control clockwise out of detent. You will hear a confirmation tone on power-up. To adjust radio volume, press and hold the monitor button then rotate the control further clockwise. Use the channel switch to choose the desires channel.
- Page 10 To change radio channels, simple rotate channel switch to the desired channel is reached. . CTCSS/DCS Tone Signaling To help block out unwanted calls t your radio, PL2445 and PL2415 can be programmed by our dealer to scan for tones.
- Page 11 while scanning and when the radio has stopped on an active channel. If a call is detected on the priority channel, the radio will automatically move to, and remain on, the priority channel activity takes precedence over all other conversations. Busy Channel Lockout When RX signal is being received transmitter is disabled.
- Page 12 The Federal Communications Commission requires the operator of this radio be properly licensed under the applicable Part and / or Parts of the FCC Rules and Regulations. Consult with your Topaz3 / Legacy radio communications Dealer, or contact the nearest FCC Field Office for information about a license.
-
Page 13: Software Copyrights
Topaz3, LLC. Furthermore, the purchase of Topaz2 / Legacy products shall not be deemed to grant either directly or by implication, estoppels, or otherwise, any license under the copyrights, patents or patent applications of Topaz3, LLC, except for normal non-exclusive, royalty -free license to use that arises by option of law in the sale of a product. - Page 14 Topaz3’s sole obligation hereunder shall be to replace or repair the product covered in this Warranty. Replacement, at Topaz3’s option, may include a similar or higher-featured product. Repair may include the replacement of parts or boards with functionally equivalent reconditioned or new parts or boards.
