NESCHEN ECOLAM 1650
LAMINATOR FOR LARGE FORMATS
OPERATING INSTRUCTIONS
Version 10-2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECOLAM 1650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Neschen ECOLAM 1650

Summary of Contents for Neschen ECOLAM 1650

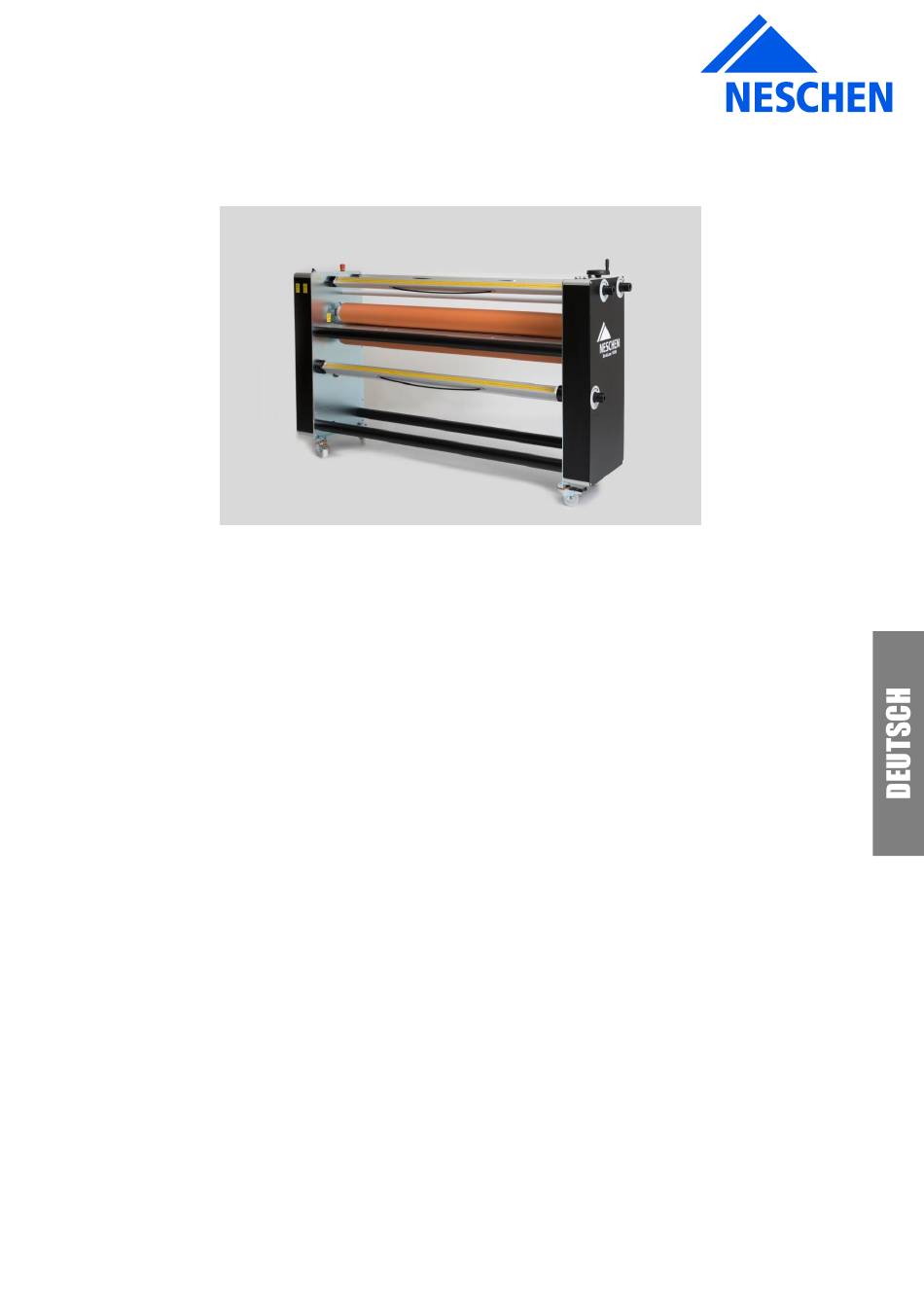

  • Page 1 NESCHEN ECOLAM 1650 LAMINATOR FOR LARGE FORMATS OPERATING INSTRUCTIONS Version 10-2017...
